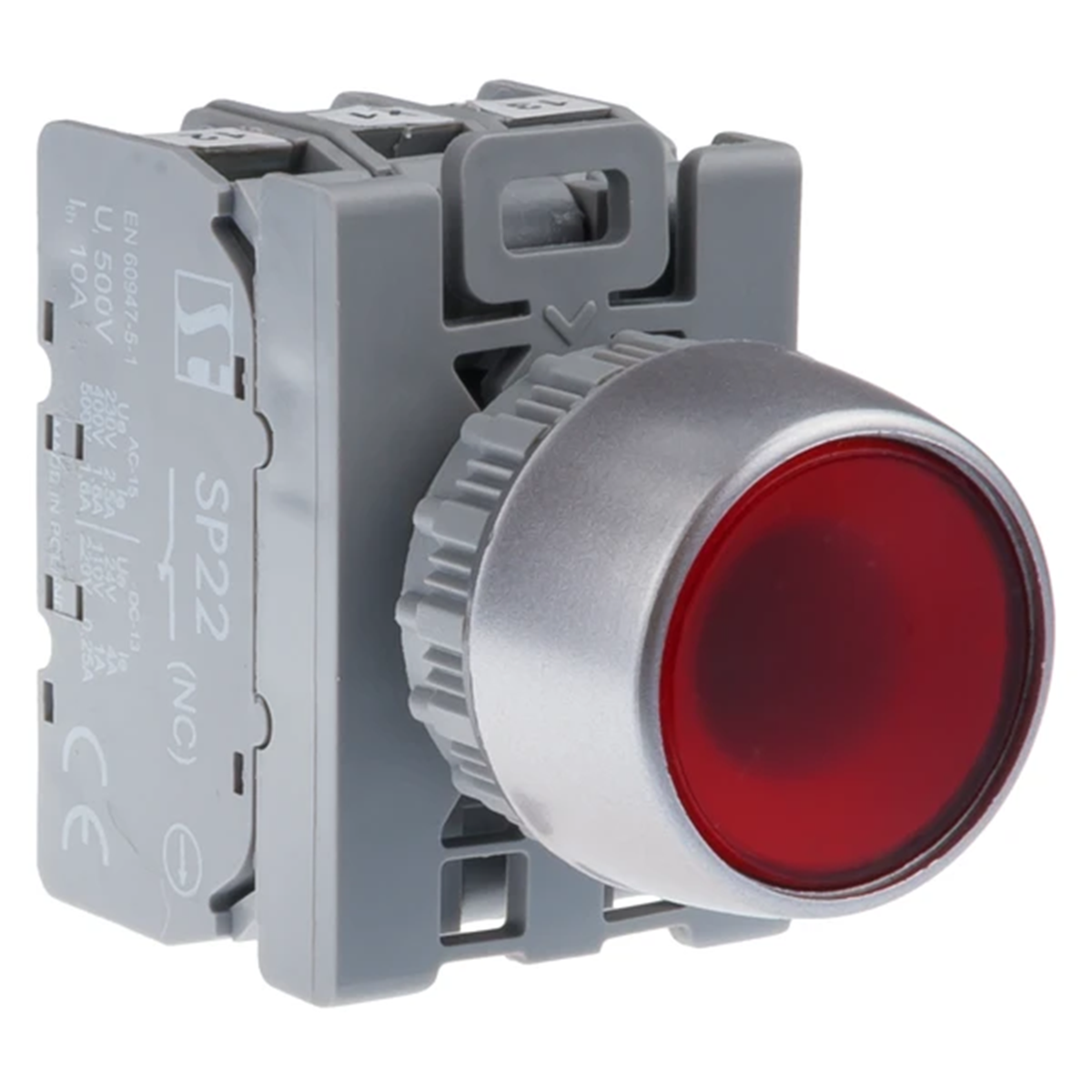

Control button 22mm red 1 normally open contact 1 normally closed contact with backlight

Click on the photo to enlarge

Control button 22mm red 1 normally open contact 1 normally closed contact with backlight
SPAMEL

Control button 22mm red 1 normally open contact 1 normally closed contact with backlight SP22-KLC-11-230-BA9S\.

local index:
AKS100SPAM
Catalog No:
SP22-KLC-11-230-BA9S\.
EAN code:
5907723059481
Price:
20,61 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Control button 22mm red 1 normally open contact 1 normally closed contact with backlight
Print the product sheet Report an error

Technical data

  • Color
    Red
  • Housing material
    Plastic
  • Diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    no
  • Supply voltage lamp
    230 V
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
  • Type of button
    Flat
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    yes
  • Spring-return
    yes
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    yes
  • Colour front ring
    Grey
