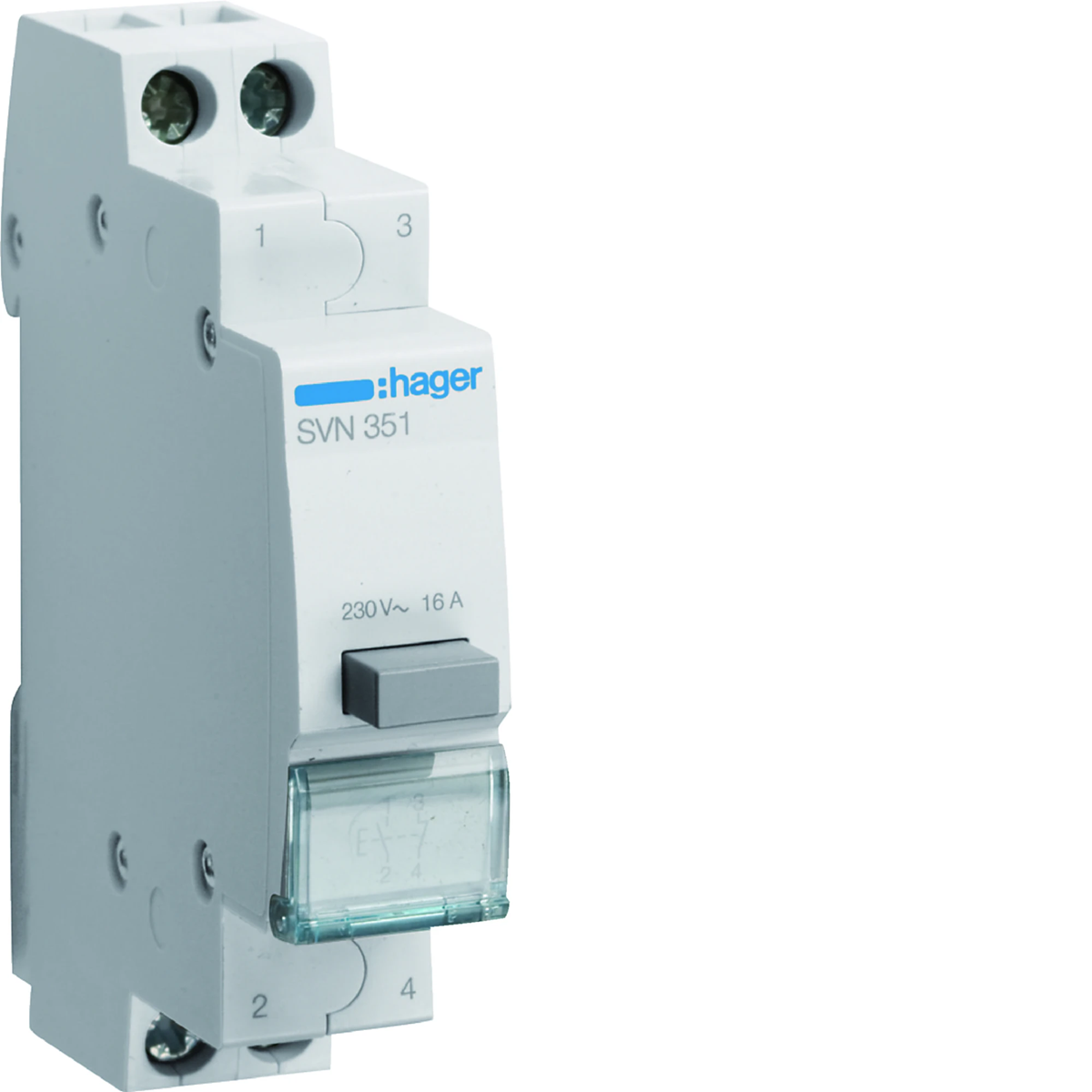

Control button 16A 1NO 1NC SVN351

local index:
AKS146HAGE
Catalog No:
SVN351
EAN code:
3250615721860
Manufacturer: HAGER
Depth [mm]: 66
Number of modules: 1
Number of poles: 1
Price:
15,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

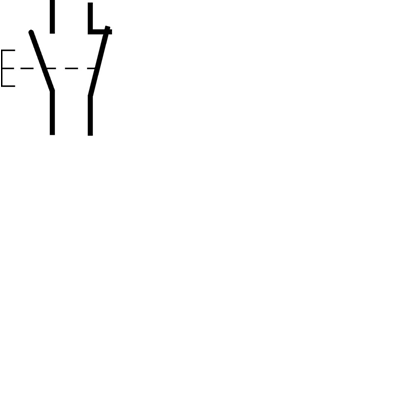

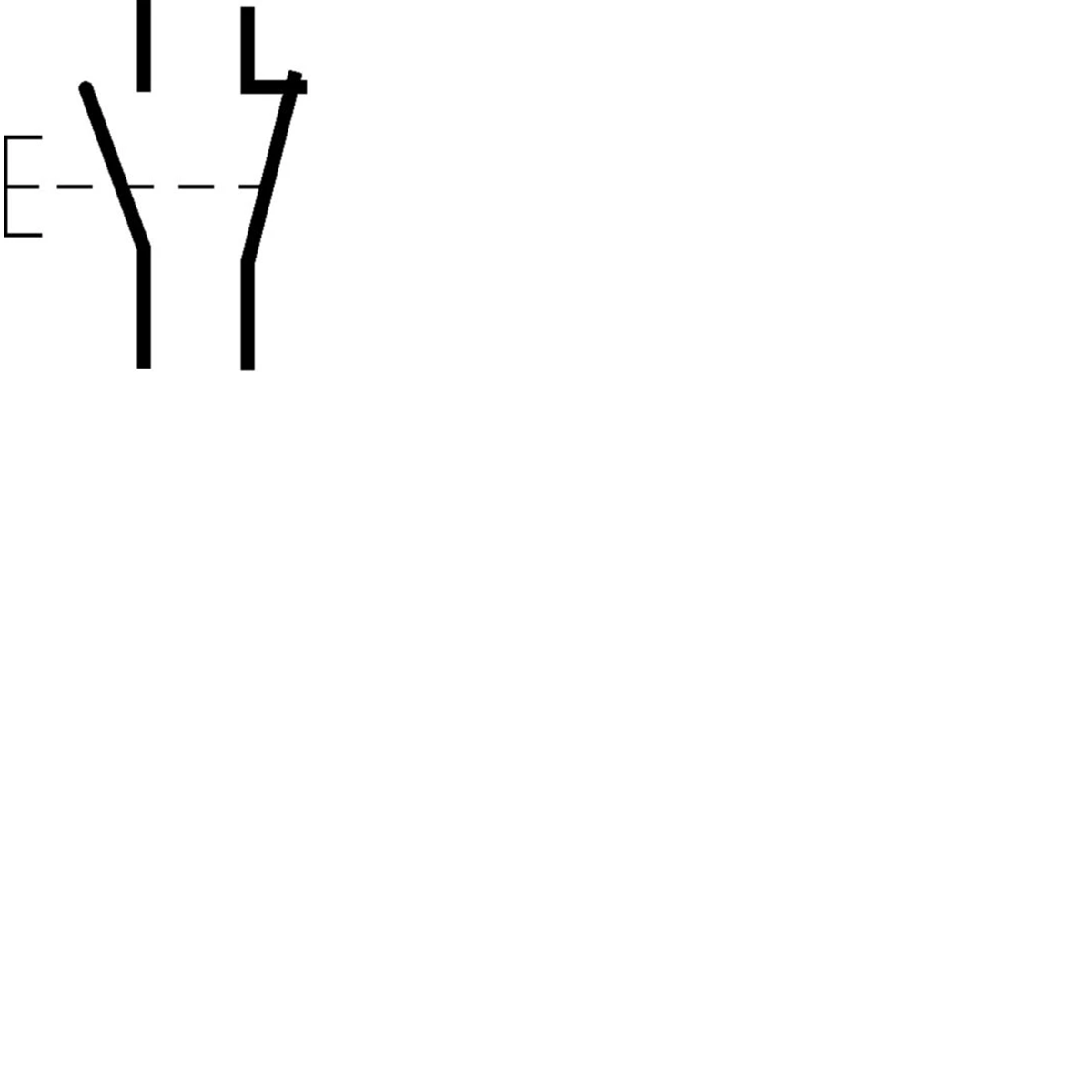

Button 16A, 1Z+1R.

Technical data

  • Depth [mm]
    66
  • Number of poles
    1
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Height [mm]
    83
  • PKWIU
    27.33.11.0
  • Number of modules
    1
  • Surge voltage [kV]
    4000
  • Rated insulation voltage [V]
    250
  • Width [mm]
    17.5
  • Number of modules
    1

Other technical data

  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Switching voltage
    230 V
  • With signal lamp
    No
  • Colour button
    Grey
  • Built-in depth
    66 mm
  • Number of contacts as normally open contact
    1
  • Switching current
    16 A
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,058 0,771 9,678 255,272
Width (m) 0,018 0,097 0,323 0,800
Length (m) 0,083 0,082 0,239 1,106
Depth (m) 0,072 0,229 0,370 1,200
