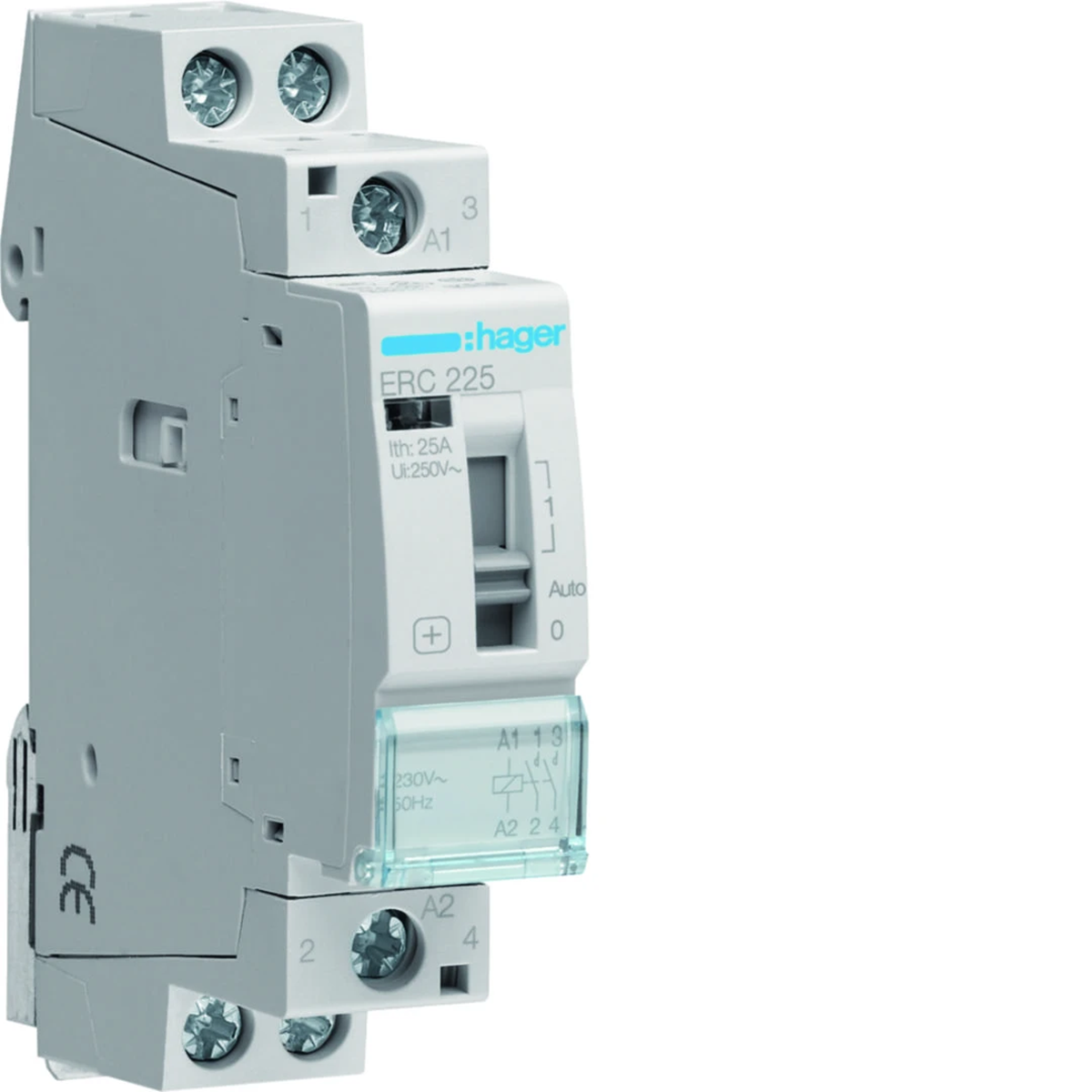

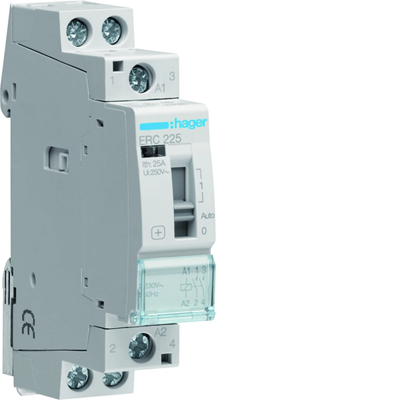

Contactor with manual control 2NO 25A 230V AC ERC225
local index:
ATM009HAGE
Catalog No:
ERC225
EAN code:
3250612400676
Price:
43,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Contactor with manual control 2NO 25A 230V AC
Technical data
-
Depth [mm]60
-
Surge voltage [kV]4
-
Rated current [A]25
-
Width [mm]17.85
-
Number of modules1
-
Number of contacts2NO 0NC
-
Rated voltage [V]230
-
Power dissipation [W]3.6
-
Height [mm]83
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage230 ... 230 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,114 | 0,123 | 13,691 | 351,584 |
| Width (m) | 0,080 | 0,080 | 0,318 | 0,800 |
| Length (m) | 0,020 | 0,021 | 0,211 | 0,994 |
| Depth (m) | 0,095 | 0,094 | 0,364 | 1,200 |
