Contactor SM 425 24 2NO without lever 412505

local index:

ATM309LEGR

Catalog number:

412505

EAN code:

3245064125055

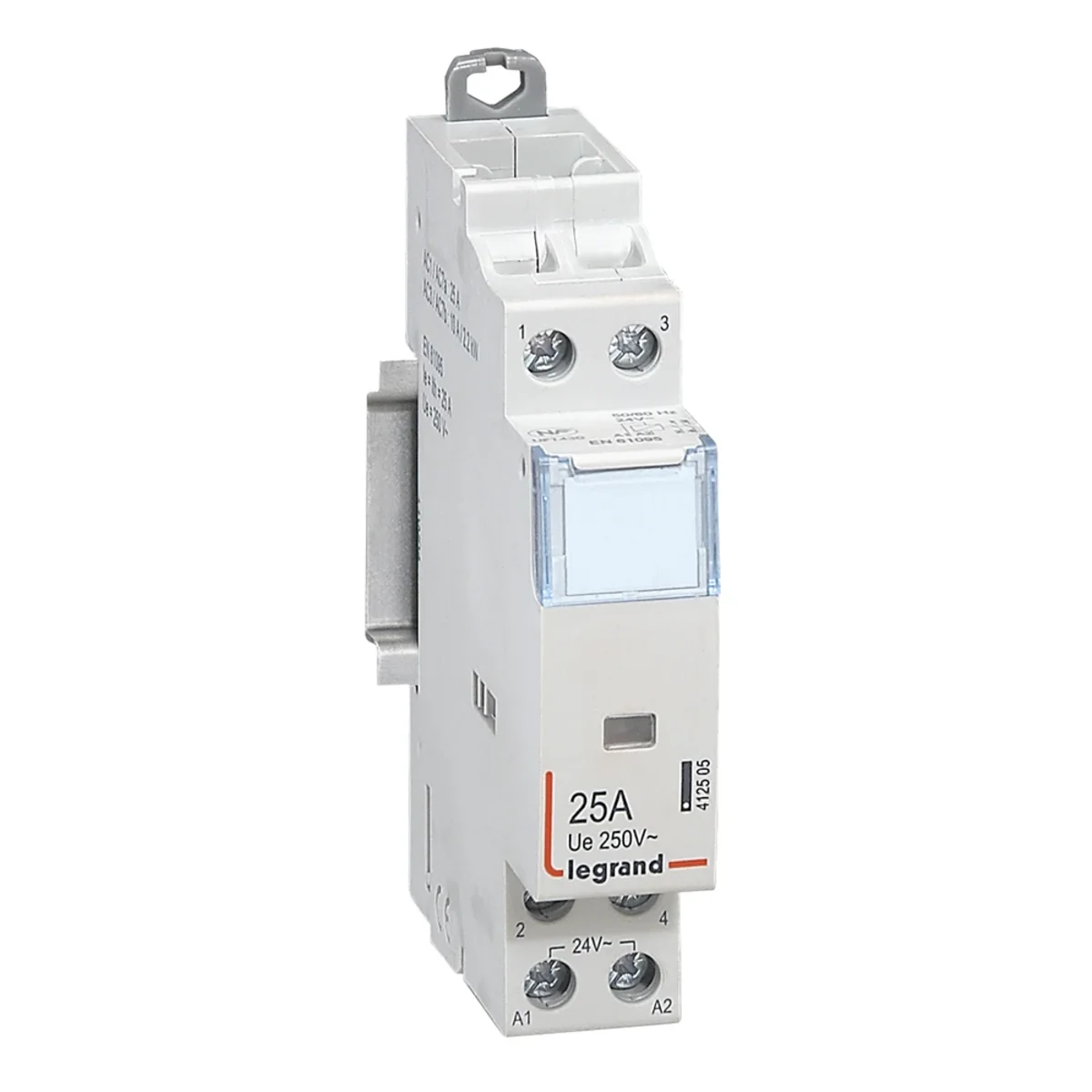

Click on the photo to enlarge

Manufacturer: LEGRAND

Type of control voltage: AC

See full description

Price:

87,31 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Compliant with IEC/EN 61095
Top busbar connection (up to 25 A)
NO - make contact, NC - break contact

Product parameters

Contactor : coil voltage 24 V~
2-pole - 250 V~
Rated current: 25A
Types of contacts: 2 NO
Width in 17.5mm modules: 1

Technical data

Type of control voltage

AC

PKWIU

27.12.24.0

Other technical data

Rated operating voltage

250 ... 250 V
Rated excitation voltage

20 ... 26 V
Voltage type (excitation voltage)

AC
Number of contacts as normally closed contact

0
Max. load fluorescent lamp

2100 VA
Max. load fluorescent lamp (parallel compensated)

1000 VA
Width in number of modular spacings

1
Additional equipment possible

Yes

Rated operation current

25 A
Voltage type (operating voltage)

AC
Number of contacts as normally open contact

2
Max. incandescent lamp load

3000 W
Max. load fluorescent lamp (Duo circuit)

2200 VA
Slider for hand switch

Yes
Built-in depth

44 mm
Degree of protection (IP)

IP2X

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pcs.	42 pcs.	840 pcs.
Weight (kg)	0,131	5,718	114,360
Volume (m3)	0,000	0,012	0,432
Width (m)	0,088	0,200	1,200
Length (m)	0,024	0,197	0,360
Depth (m)	0,100	0,296	1,000
