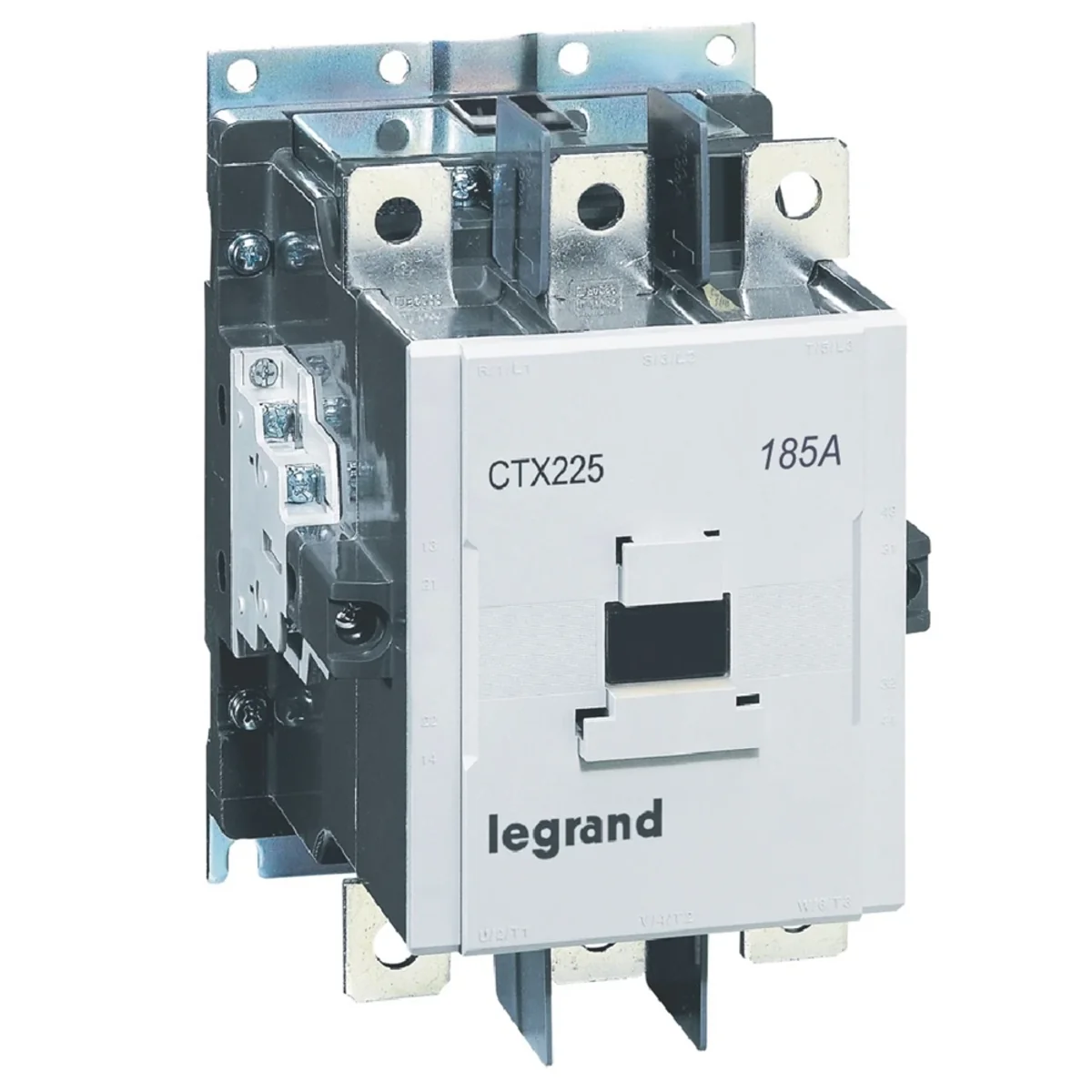

Contactor CTX-2 185A 230VAC NO+NC 416286

Índice local:

ATA011LEGR

Número de catálogo:

416286

Código EAN:

3414970403469

Haga clic en la foto para ampliar

Fabricante: LEGRAND

AC control voltage [V]: 230

Ver descripción completa

Precio:

4 730,69 zł

gross / uds.

(IVA incluido 23%)

hasta 2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Three-pole electromagnetic contactors with built-in auxiliary contact 1 NO + 1 NC
Main contacts of the contactor 3 x NO with switching voltage Ue = 1000V~
Utilization category AC1 and AC3
Contactors can be equipped with auxiliary contacts mounted on the front or side contactor
Control voltage 50 Hz / 60 Hz or constant
Products meet the requirements of PN-EN 60947-1, PN-EN 60947-4-1, PN-EN 60947-5-1

Product parameters

CTX-2 contactors
Ie = 185 A
Control circuit: 50/60 Hz alternating current
Terminals for ring cable lugs
AC3 breaking current: 185 A
Control voltage: 230 V~
Built-in auxiliary contact: 1 NO + 1 NC
Size: 1

Datos técnicos

AC control voltage [V]

230

PKWIU

27.12.24.0

Otros datos técnicos

Rated control supply voltage AC 50 Hz

85 ... 264 V
Rated control supply voltage DC

85 ... 242 V
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Screw connection
Rated operation current Ie at AC-3, 400 V

185 A
Rated operation current Ie at AC-4, 400 V

150 A
Number of auxiliary contacts as normally open contact

2
Modular version

No

Rated control supply voltage AC 60 Hz

85 ... 264 V
Voltage type for actuating

AC/DC
Number of normally open contacts as main contact

3
Rated operation current Ie at AC-1, 400 V

230 A
Rated operation power at AC-3, 400 V

90 kW
Rated operation power at AC-4, 400 V

75 kW
Number of auxiliary contacts as normally closed contact

2

Detalles del fabricante

Fabricante

Legrand Polska Sp. z o.o.
Dirección

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
Email

info@legrand.com.pl

Empaquetado a granel

una especie de paquete	Karton	Paleta
Cantidad	1 uds.	36 uds.
Peso (kg)	5,369	193,284
Volumen (m3)	0,012	0,828
Ancho (m)	0,255	1,200
Longitud (m)	0,178	0,690
Profundidad (m)	0,275	1,000
