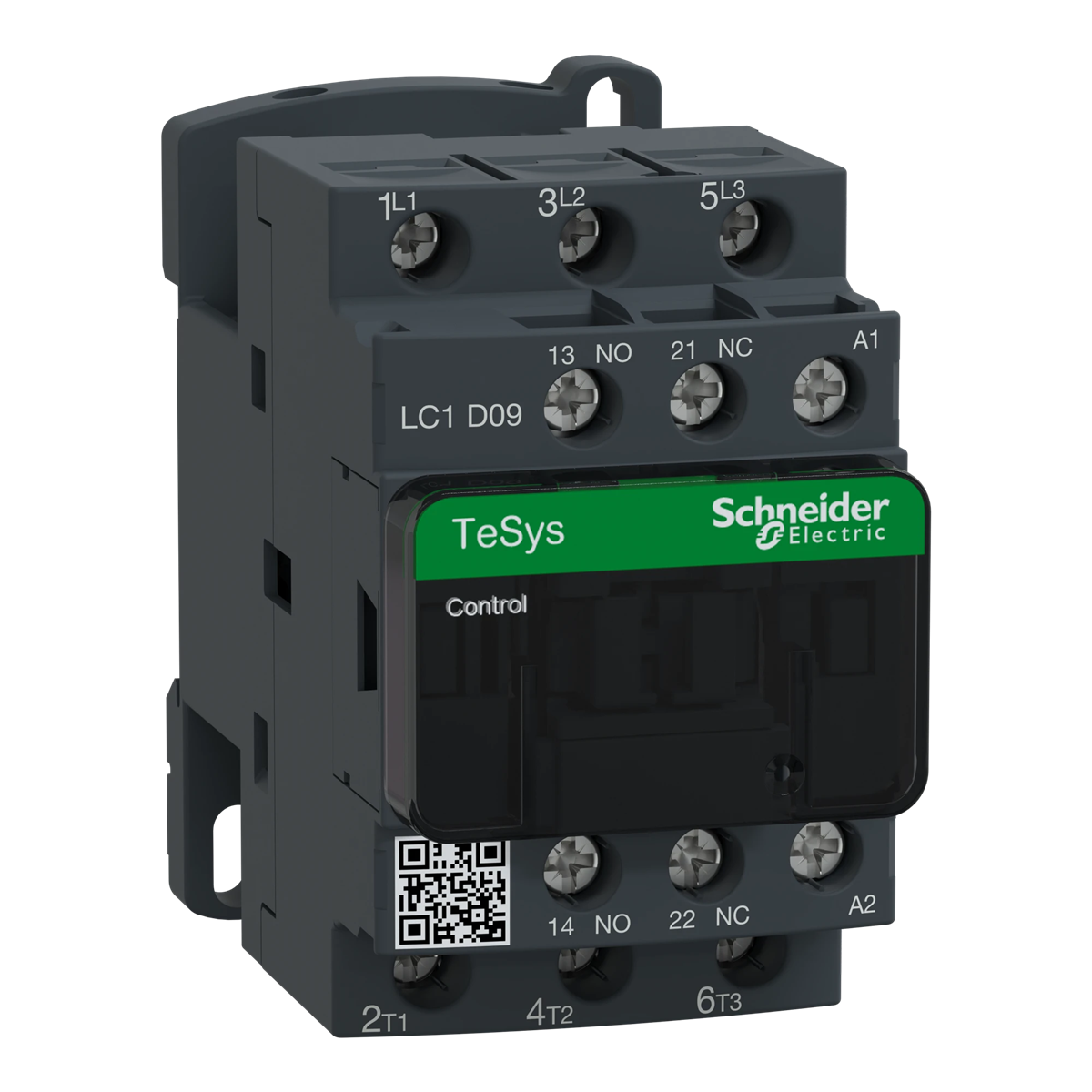

Contactor AC3-9A, 110V, 50/60Hz LC1D09F7

local index:
ATA027SCHN
Catalog No:
LC1D09F7
EAN code:
3389110348798
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 3
Control circuit voltage [V]: 110
Contact: 1NO+1NC
Price:
34,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contactor AC3-9A, 110V, 50/60Hz

Technical data

  • Number of poles
    3
  • Contact
    1NO+1NC
  • PKWIU
    27.12.24.0
  • Control circuit voltage [V]
    110
  • Rated operational current [A]
    9

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    9 A
  • Rated operation current Ie at AC-4, 400 V
    6 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    110 ... 110 V
  • Rated operation current Ie at AC-1, 400 V
    25 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated operation power at AC-4, 400 V
    2.2 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
