Electrical apparatus
contactors
AC contactors

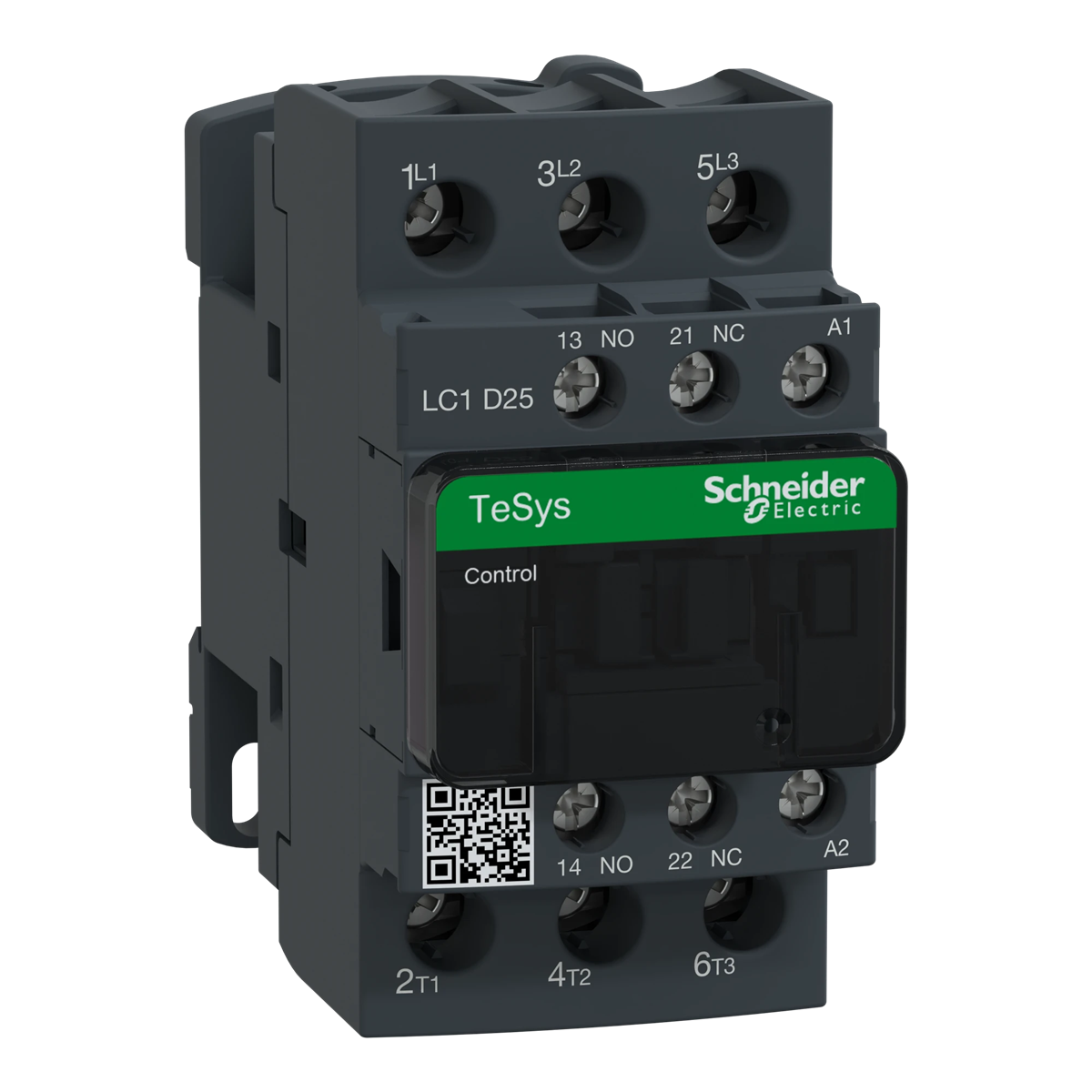

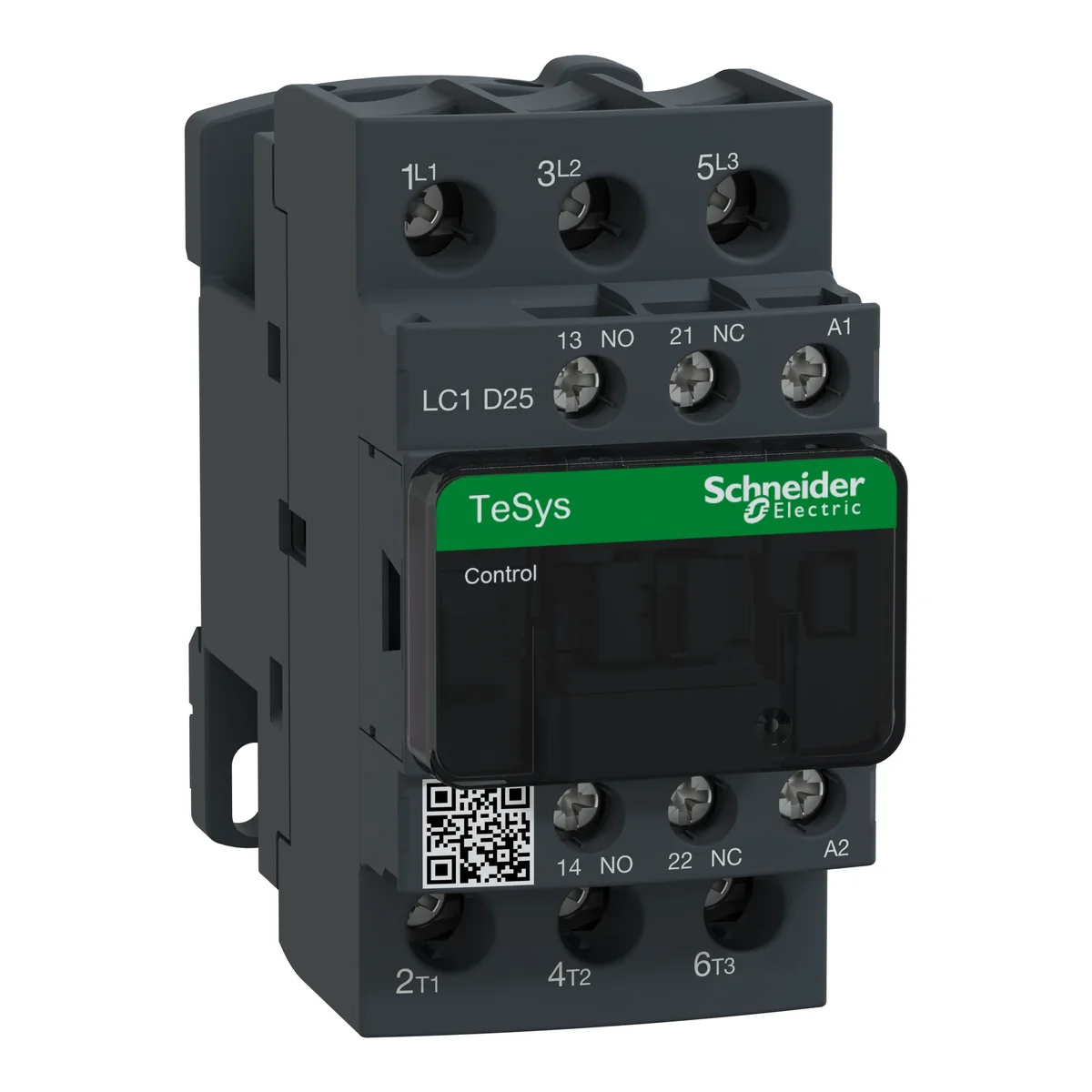

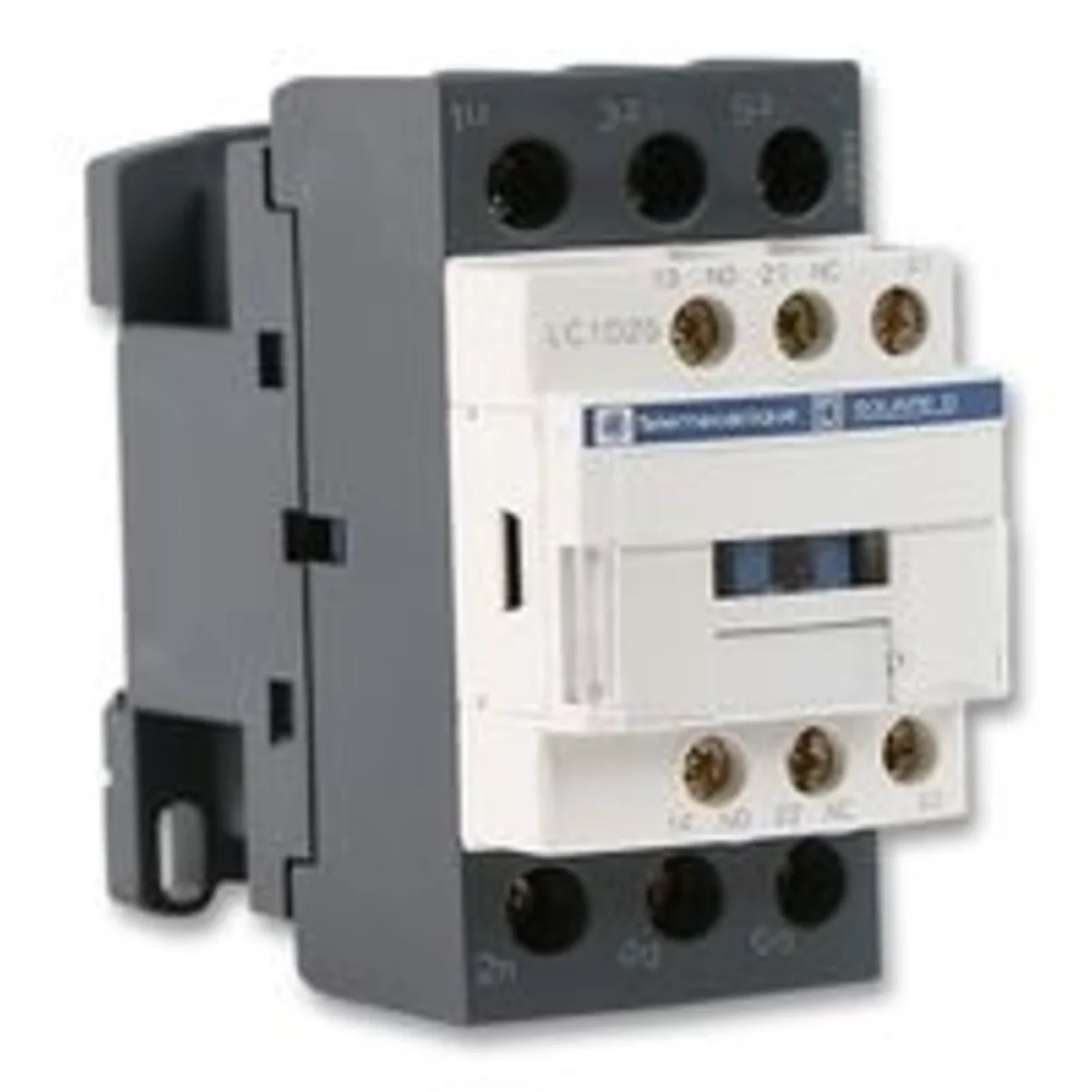

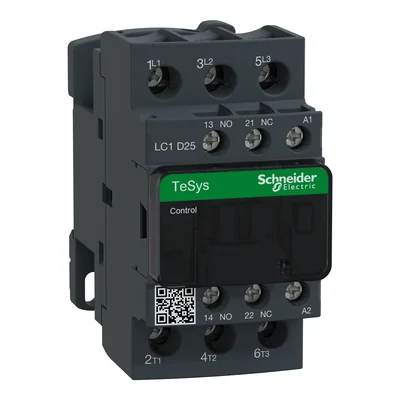

Contactor AC3-25A, 230V, 50/60Hz, 3P, AC 1NO 1NC LC1D25P7
local index:
ATA023SCHN
Catalog No:
LC1D25P7
EAN code:
3389110349955
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of contacts:
1NO 1NC
Number of poles:
3
Control circuit voltage [V]:
230
See full description
Price:
64,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Contactor AC3-25A, 230V, 50/60Hz, 3P, AC 1NO 1NC
Technical data
Number of contacts
1NO 1NC
Control circuit voltage [V]
230
PKWIU
27.12.24.0
Number of poles
3
Rated operational current [A]
25
Other technical data
Rated control supply voltage AC 50 Hz
230 ... 230 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
25 A
Rated operation current Ie at AC-4, 400 V
12 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
230 ... 230 V
Rated operation current Ie at AC-1, 400 V
40 A
Rated operation power at AC-3, 400 V
11 kW
Rated operation power at AC-4, 400 V
5.5 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
PP_EU_Doc_LC.D25-38_SC16040408J.docx.pdf
137830401A55-14.pdf
