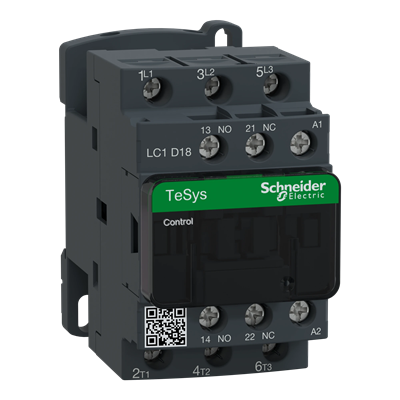

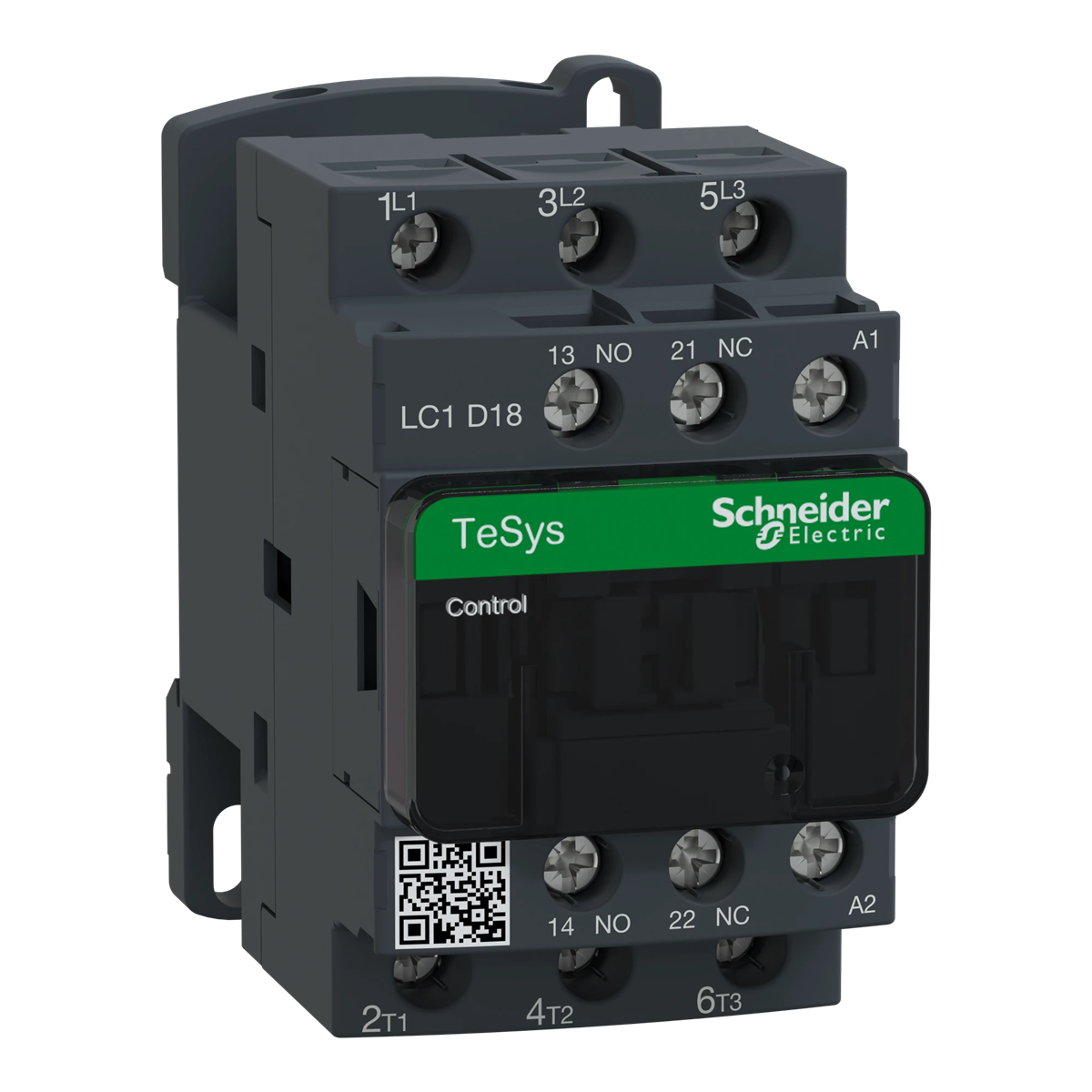

Contactor AC3-18A, 24V, 50/60Hz LC1D18B7
local index:
ATA138SCHN
Catalog No:
LC1D18B7
EAN code:
3389110349399
Manufacturer:
SCHNEIDER ELECTRIC
Number of contacts: 1NO 1NC
Number of poles: 3
Control circuit voltage [V]: 24
Price:
48,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Contactor AC3-18A, 24V, 50/60Hz
Technical data
-
Number of contacts1NO 1NC
-
Control circuit voltage [V]24
-
PKWIU27.12.24.0
-
Number of poles3
-
Rated operational current [A]18
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V18 A
-
Rated operation current Ie at AC-4, 400 V9 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V32 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-4, 400 V4 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
