el12
Electrical apparatus
contactors
AC contactors

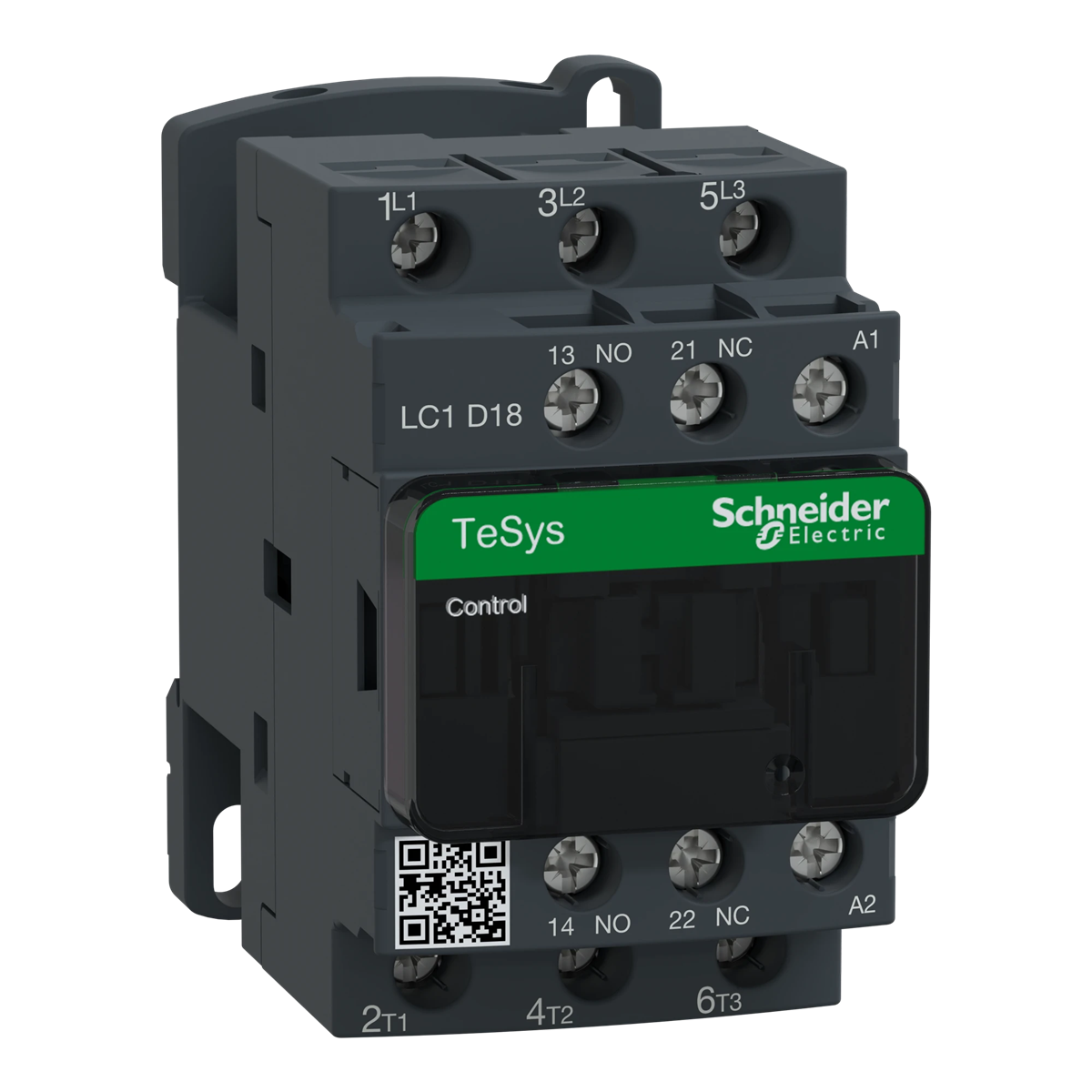

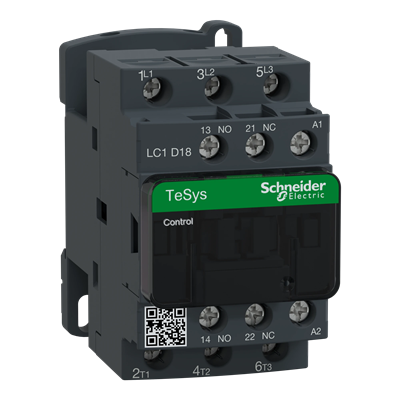

Contactor AC3-18A, 230V, 50/60Hz LC1D18P7
local index:
ATA006SCHN
Catalog No:
LC1D18P7
EAN code:
3389110349535
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of contacts:
1NO 1NC
Number of poles:
3
Control circuit voltage [V]:
230
See full description
Price:
47,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Contactor AC3-18A, 230V, 50/60Hz
Technical data
Number of contacts
1NO 1NC
Control circuit voltage [V]
230
PKWIU
27.12.24.0
Number of poles
3
Rated operational current [A]
18
Other technical data
Rated control supply voltage AC 50 Hz
230 ... 230 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
18 A
Rated operation current Ie at AC-4, 400 V
9 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
230 ... 230 V
Rated operation current Ie at AC-1, 400 V
32 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated operation power at AC-4, 400 V
4 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
PP_EU_Doc_LC.D09-18_SC16040407I.docx.pdf
