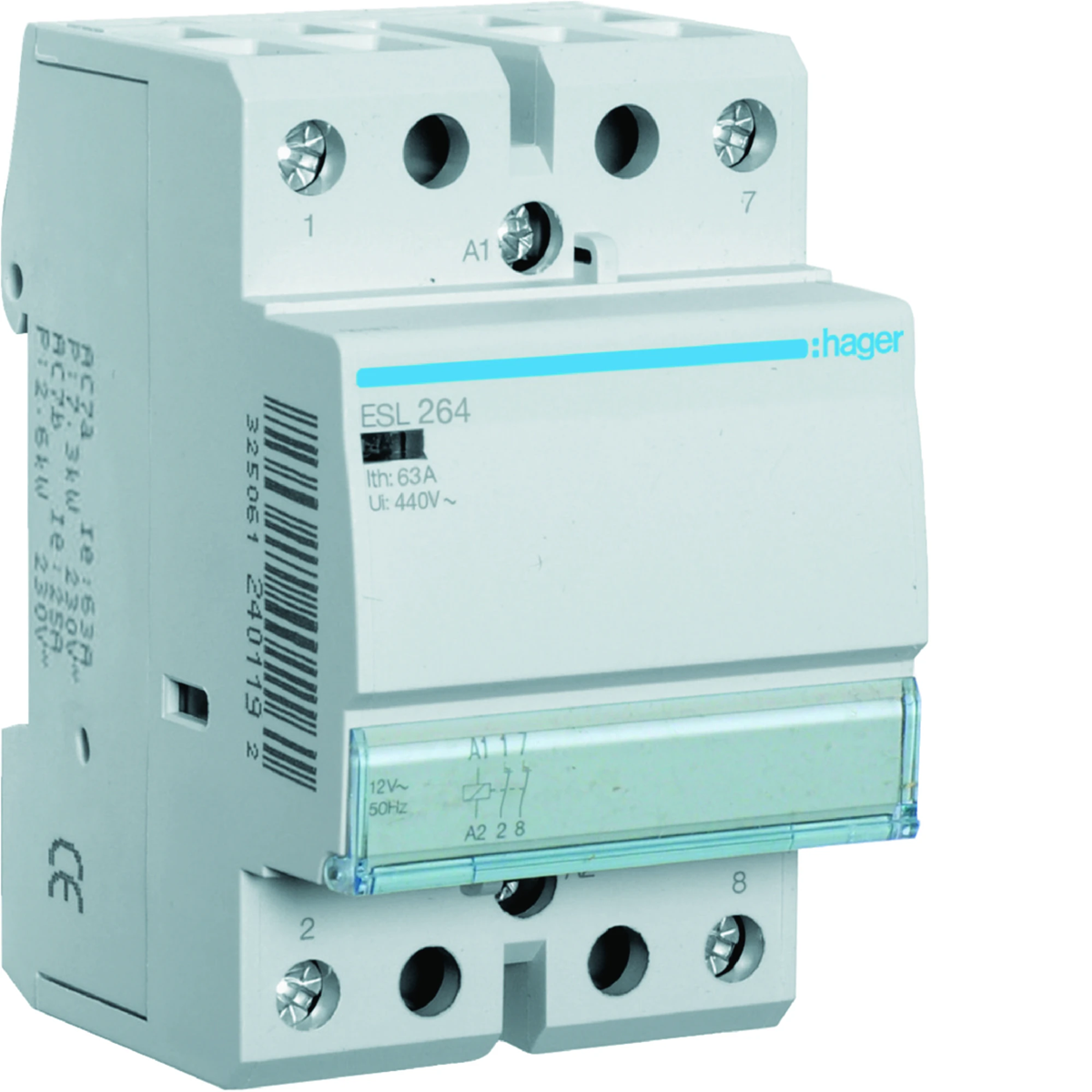

Contactor 8/12VAC 2NC 63A ESL264

Índice local:
ATM051HAGE
Número de catálogo:
ESL264
Código EAN:
3250612401246
Fabricante: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 60
Number of contacts: 0NO 2NC
Precio:
113,12 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 10 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear

Datos técnicos

  • Rated frequency [Hz]
    50
  • Number of contacts
    0NO 2NC
  • AC control voltage [V]
    12
  • Rated current [A]
    63
  • Width [mm]
    54
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • Connection type
    With a screw
  • AC rated voltage [V]
    400
  • Depth [mm]
    60
  • Maximum input power [W]
    60
  • Rated insulation voltage [V]
    440
  • power loss [W]
    10
  • Working temperature [°C]
    -10 to 50
  • Electrical endurance (number of cycles)
    30000
  • Rated impulse voltage [kV]
    4
  • Number of modules
    3
  • PKWIU
    27.12.24.0

Otros datos técnicos

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    0
  • Max. incandescent lamp load
    6500 W
  • Max. load fluorescent lamp (Duo circuit)
    4700 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    12 ... 12 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    2
  • Max. load fluorescent lamp
    3000 VA
  • Max. load fluorescent lamp (parallel compensated)
    2100 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta Karton Pakiet Paleta
Cantidad 1 uds. 48 uds. 1152 uds. 1 uds. 48 uds. 1152 uds.
Peso (kg) 0,330 16,220 389,370 0,330 16,220 389,370
Ancho (m) 0,080 0,320 - 0,080 0,320 -
Longitud (m) 0,050 0,210 - 0,050 0,210 -
Profundidad (m) 0,090 0,360 - 0,090 0,360 -
