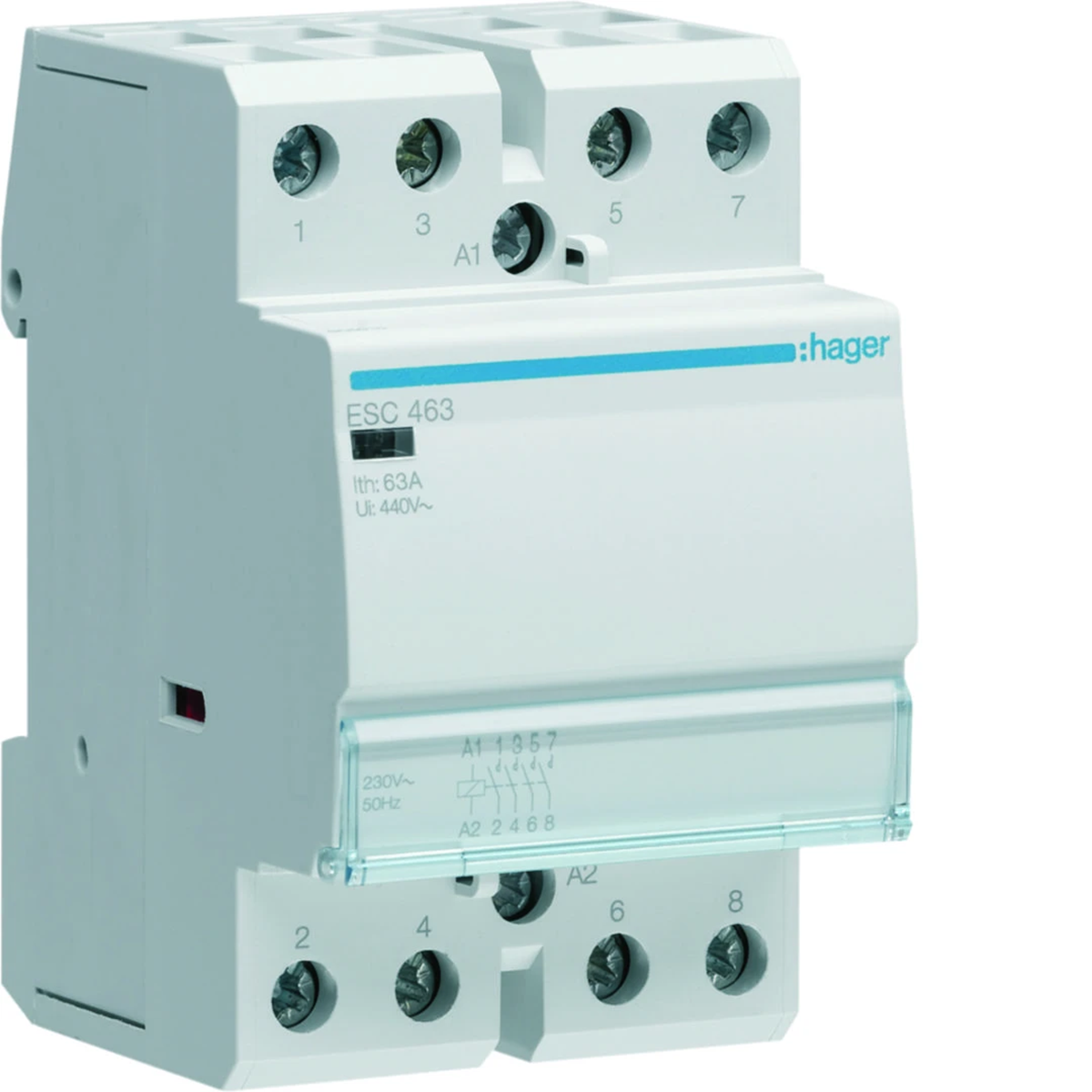

Contactor 4NO 63A 230V AC ESC463

local index:
ATM002HAGE
Catalog No:
ESC463
EAN code:
3250612401321
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 3
Number of contacts: 4NO 0NC
Price:
115,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4NO contacts Standard version contactor

Technical data

  • Depth [mm]
    60
  • Number of contacts
    4NO 0NC
  • Rated voltage [V]
    400
  • Power dissipation [W]
    22.2
  • Height [mm]
    85
  • Number of modules
    3
  • Number of modules
    3
  • Maximum input power [W]
    60
  • Rated insulation voltage [V]
    440
  • Width [mm]
    54
  • Rated impulse voltage [kV]
    4
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    6500 W
  • Max. load fluorescent lamp (Duo circuit)
    4700 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    3000 VA
  • Max. load fluorescent lamp (parallel compensated)
    2100 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,338 1,440 17,266 437,384
Width (m) 0,057 0,097 0,329 0,800
Length (m) 0,082 0,082 0,234 1,086
Depth (m) 0,100 0,227 0,367 1,200
