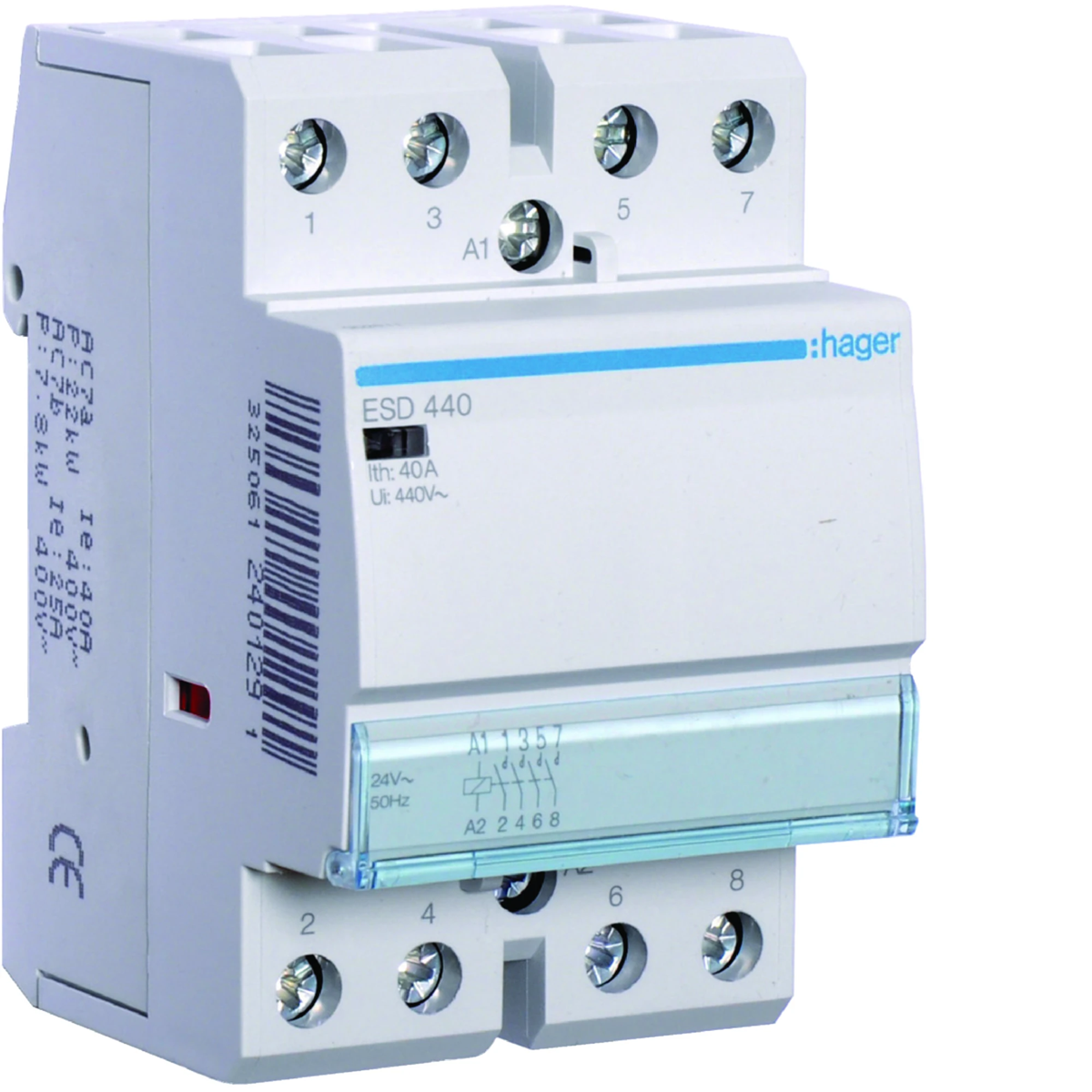

Contactor 4NO 40A 24V AC ESD440

local index:
ATM146HAGE
Catalog No:
ESD440
EAN code:
3250612401291
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 3
Number of contacts: 4NO 0NC
Price:
75,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contacts 4NO Standard version contactor.

Technical data

  • Depth [mm]
    60
  • Number of contacts
    4NO 0NC
  • AC control voltage [V]
    24
  • Rated voltage [V]
    400
  • Rated current [A]
    40
  • Height [mm]
    85
  • PKWIU
    27.12.24.0
  • Number of modules
    3
  • Maximum input power [VA]
    60
  • Surge voltage [kV]
    4
  • Rated insulation voltage [V]
    440
  • Width [mm]
    54
  • Number of modules
    3

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    4000 W
  • Max. load fluorescent lamp (Duo circuit)
    3000 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    40 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    1900 VA
  • Max. load fluorescent lamp (parallel compensated)
    1300 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,338 0,366 18,008 457,192
Width (m) 0,054 0,080 0,315 0,800
Length (m) 0,085 0,056 0,239 1,106
Depth (m) 0,065 0,094 0,368 1,200
