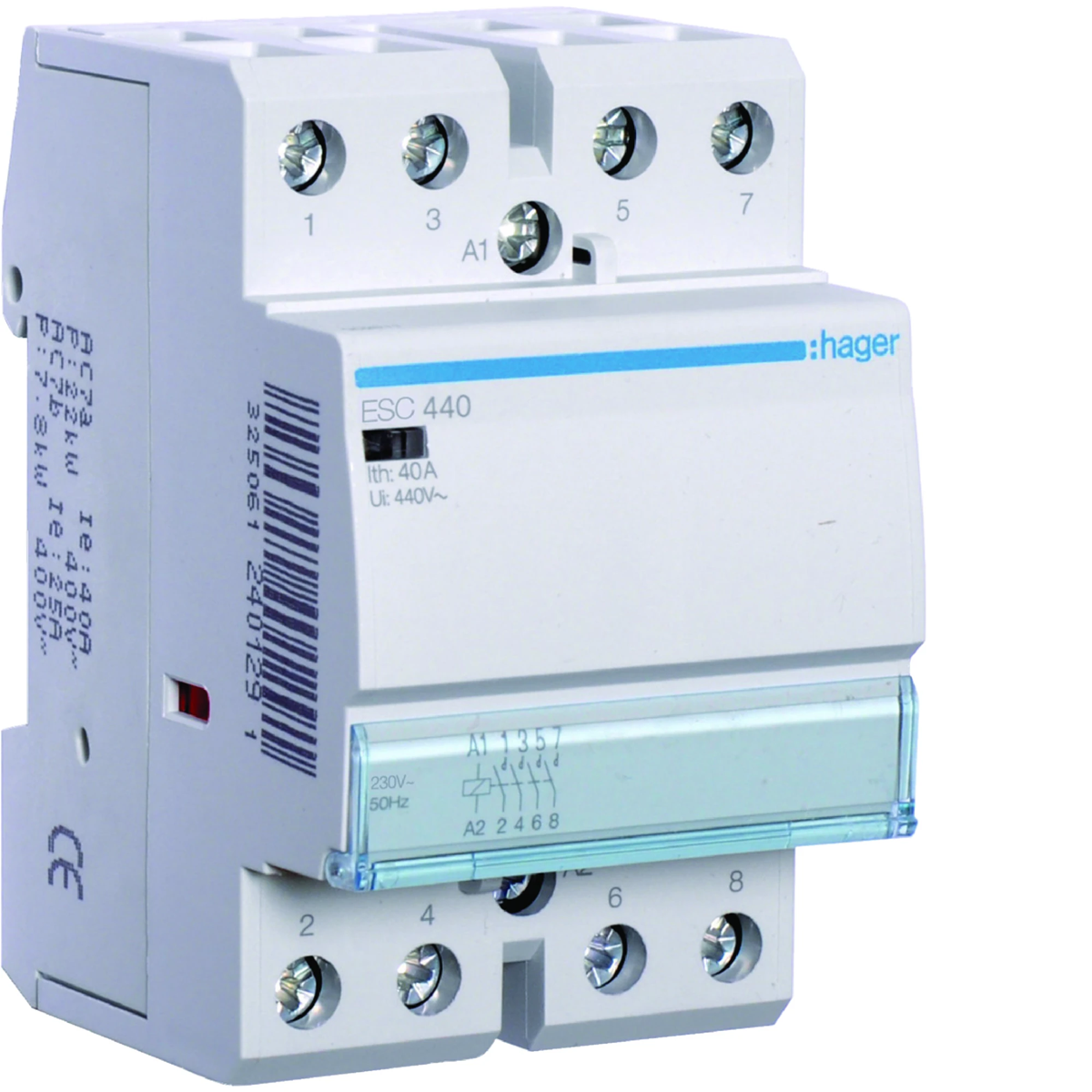

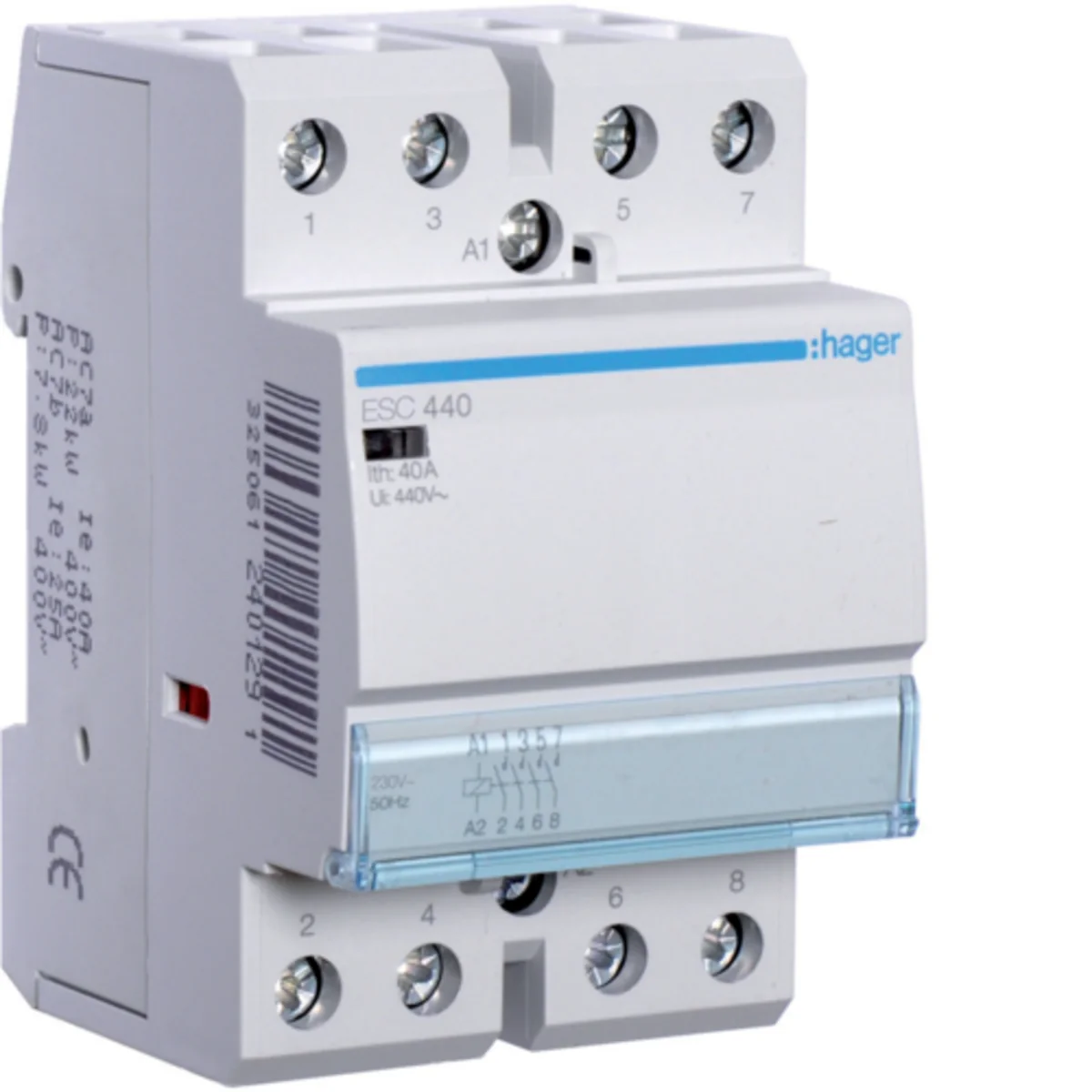

Contactor 4NO 40A 230V AC ESC440
local index:
ATM113HAGE
Catalog No:
ESC440
EAN code:
3250612401284
Price:
91,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Contacts 4NO Standard version contactor.
Technical data
-
Depth [mm]60
-
Number of contacts4NO 0NC
-
AC control voltage [V]230
-
Rated voltage [V]40
-
Rated current [A]40
-
Width [mm]54
-
Number of modules3
-
Number of modules3
-
Maximum input power [W]60
-
Surge voltage [kV]4
-
Rated insulation voltage [V]440
-
Power dissipation [W]15
-
Height [mm]85
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load4000 W
-
Max. load fluorescent lamp (Duo circuit)3000 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current40 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp1900 VA
-
Max. load fluorescent lamp (parallel compensated)1300 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,350 | 17,270 | 437,480 |
| Width (m) | 0,080 | 0,320 | 0,800 |
| Length (m) | 0,060 | 0,230 | 1,106 |
| Depth (m) | 0,095 | 0,360 | 1,200 |
