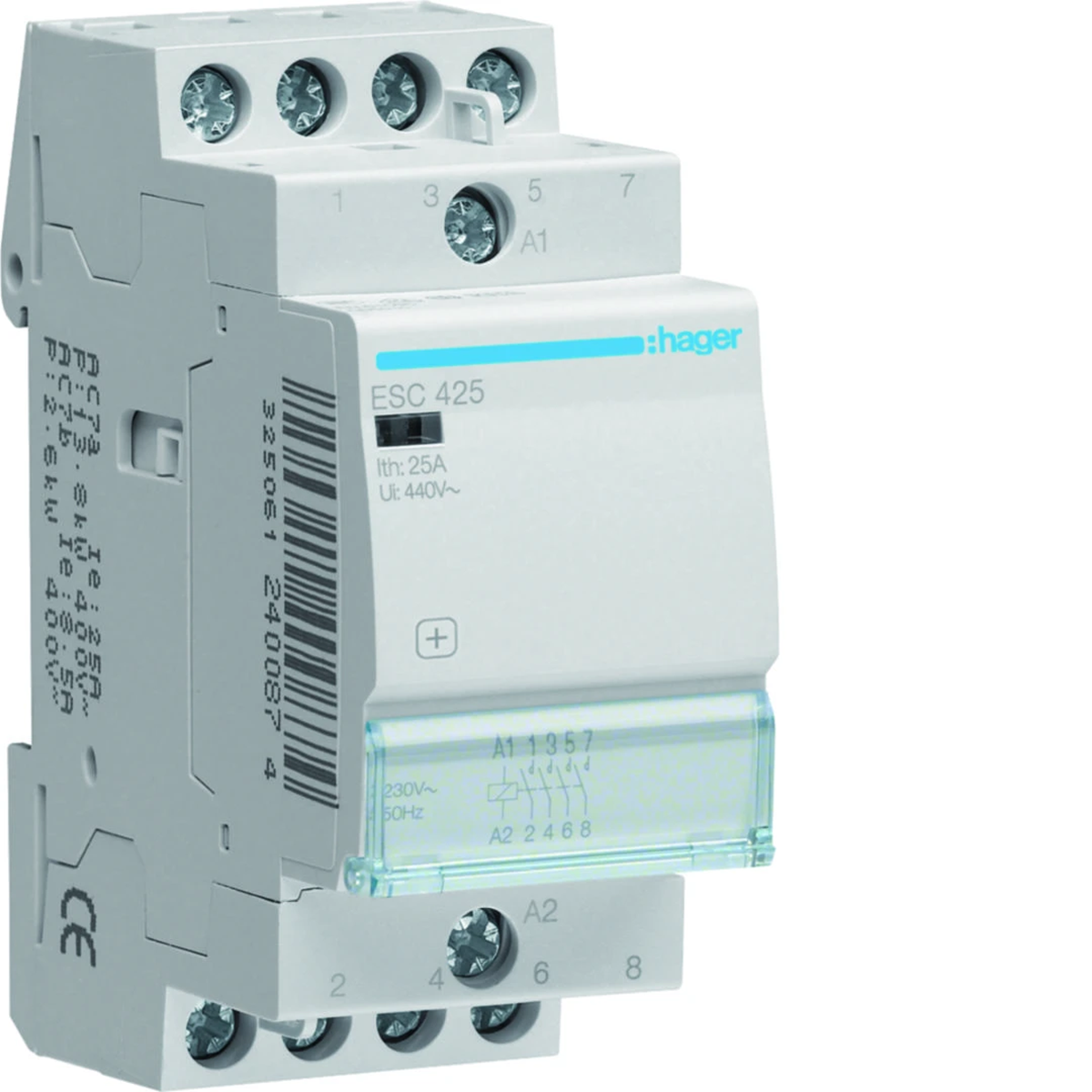

Contactor 4NO 25A 230V AC ESC425
local index:
ATM108HAGE
Catalog No:
ESC425
EAN code:
3250612400874
Price:
41,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
2NC contacts Standard version contactor.
Technical data
-
Depth [mm]60
-
Number of contacts4NO 0NC
-
Rated voltage [V]400
-
Width [mm]35.75
-
Number of modules4
-
Number of modules4
-
Surge voltage [kV]4000
-
Rated current [A]25
-
Height [mm]83
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,200 | 12,000 | 288,000 |
| Width (m) | 0,100 | 0,310 | 0,800 |
| Length (m) | 0,040 | 0,210 | 0,990 |
| Depth (m) | 0,080 | 0,360 | 1,200 |
