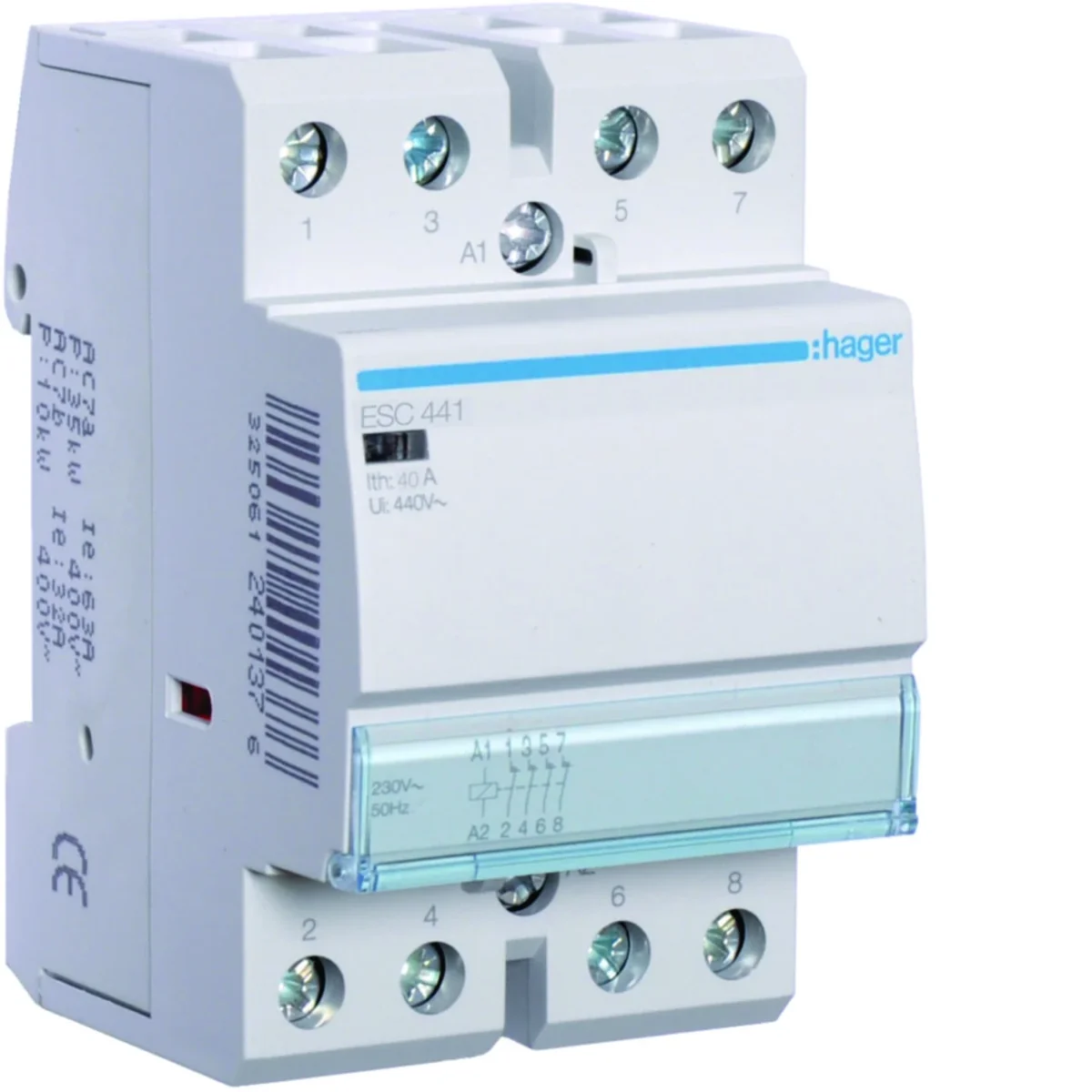

Contactor 4NC 40A 230V AC ESC441
local index:
ATM111HAGE
Catalog No:
ESC441
EAN code:
3250612401369
Price:
91,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
4NC contacts Standard version contactor.
Technical data
-
Depth [mm]60
-
Number of contacts0NO 4NC
-
AC control voltage [V]230
-
Rated voltage [V]400
-
Rated current [A]40
-
Width [mm]54
-
Number of modules3
-
Number of modules3
-
Maximum input power [W]60
-
Surge voltage [kV]4
-
Rated insulation voltage [V]440
-
Power dissipation [W]12.8
-
Height [mm]85
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact0
-
Max. incandescent lamp load4000 W
-
Max. load fluorescent lamp (Duo circuit)3000 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current40 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact4
-
Max. load fluorescent lamp1900 VA
-
Max. load fluorescent lamp (parallel compensated)1300 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,338 | 1,410 | 17,290 | 414,960 |
| Width (m) | 0,054 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,080 | 0,230 | 0,108 |
| Depth (m) | 0,065 | 0,225 | 0,360 | 1,200 |
