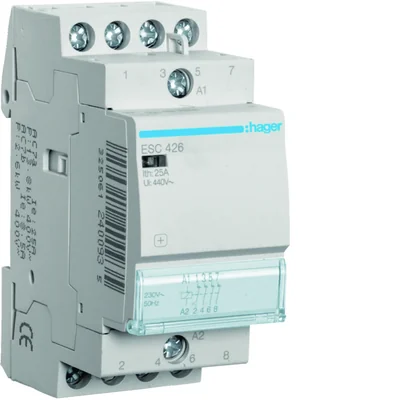

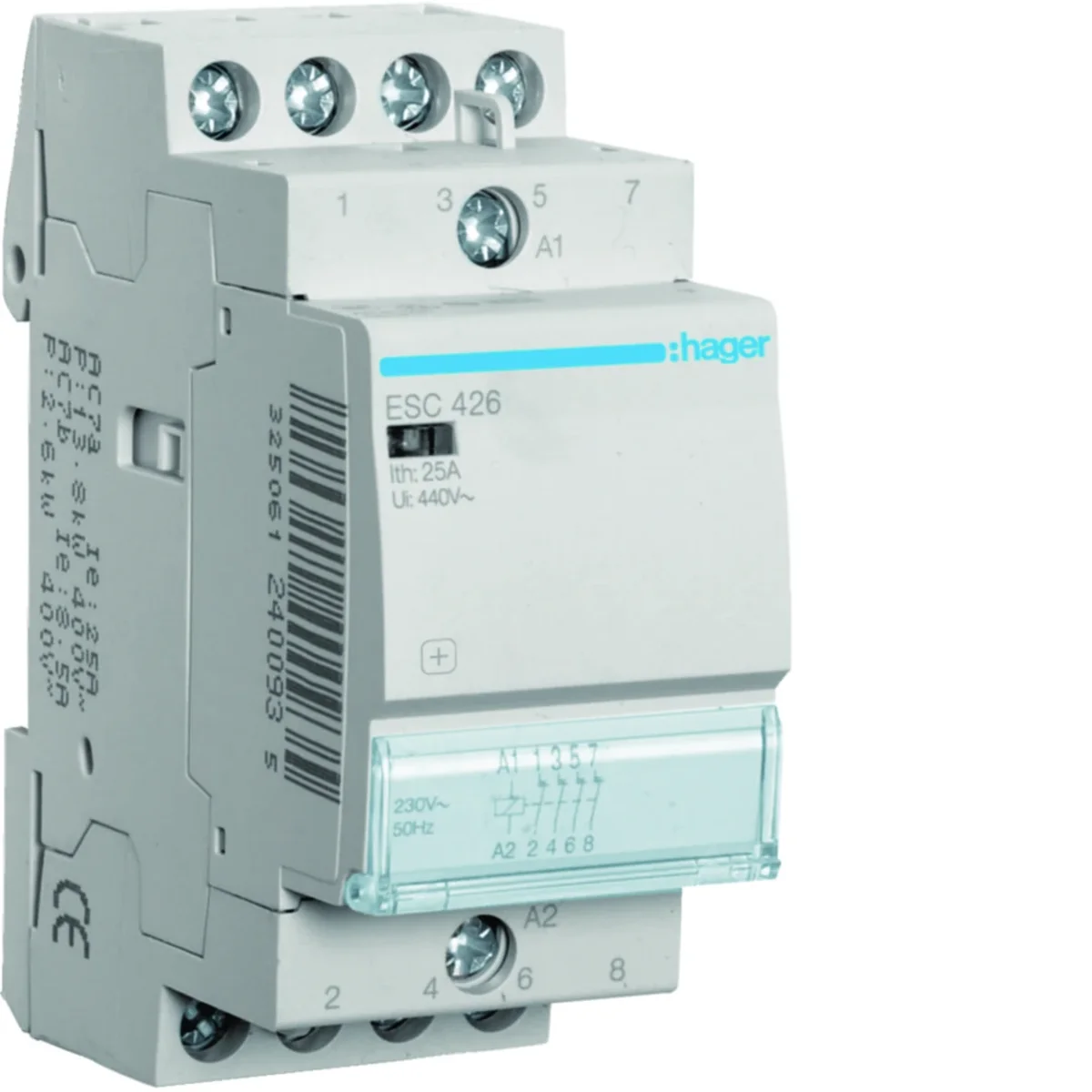

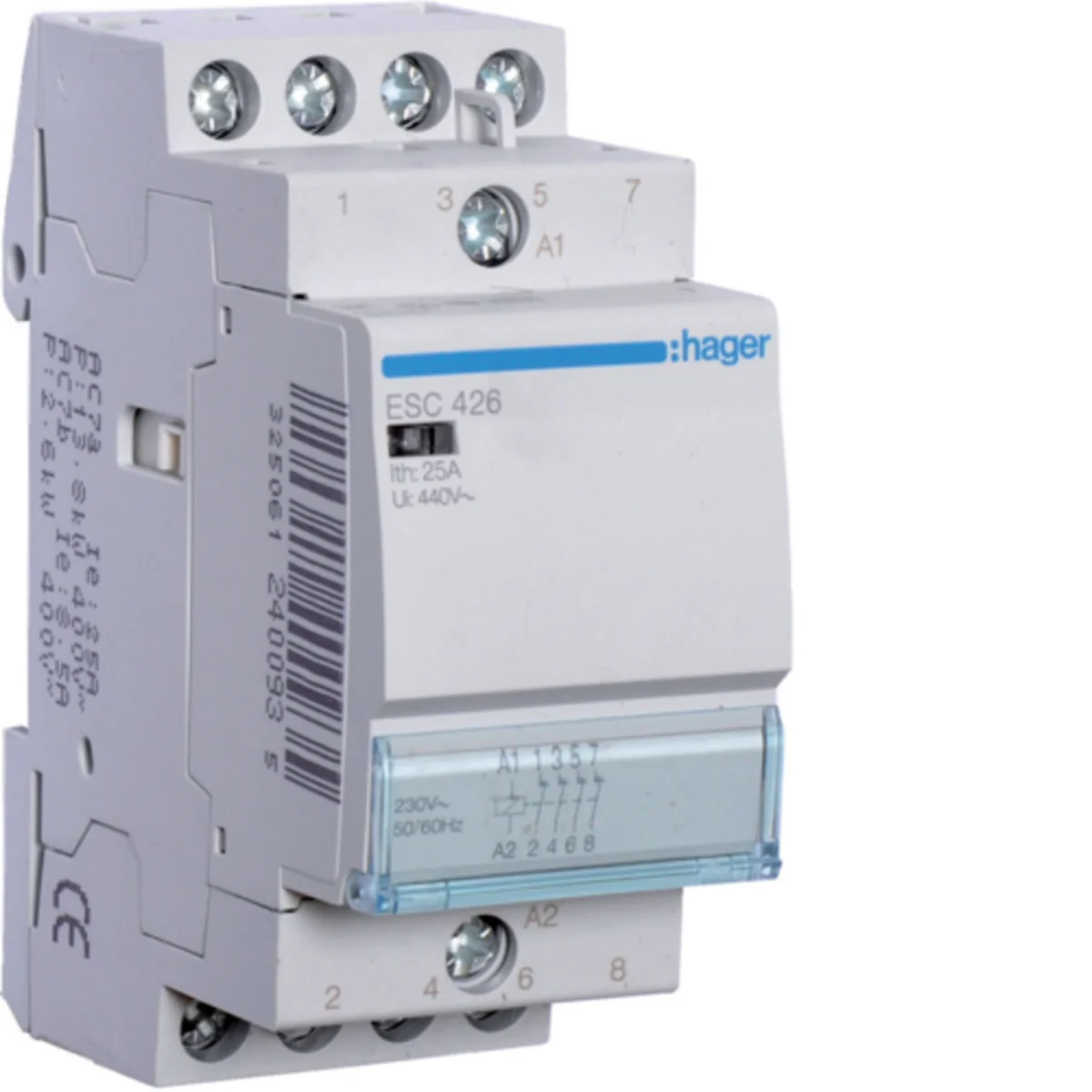

Contactor 4NC 25A 230V AC ESC426

local index:
ATM110HAGE
Catalog No:
ESC426
EAN code:
3250612400935
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 2
Number of contacts: 0NO 4NC
Price:
49,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4NC contacts Standard version contactor.

Technical data

  • Depth [mm]
    60
  • Number of contacts
    0NO 4NC
  • AC control voltage [V]
    230
  • Rated voltage [V]
    230
  • Rated current [A]
    25
  • Height [mm]
    83
  • PKWIU
    27.12.24.0
  • Number of modules
    2
  • Maximum input power [VA]
    21
  • Surge voltage [kV]
    4
  • Rated insulation voltage [V]
    440
  • Width [mm]
    35.75
  • Number of modules
    2

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    0
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    4
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,199 0,213 13,178 338,360
Width (m) 0,036 0,082 0,321 0,800
Length (m) 0,083 0,041 0,214 1,010
Depth (m) 0,065 0,099 0,365 1,200
