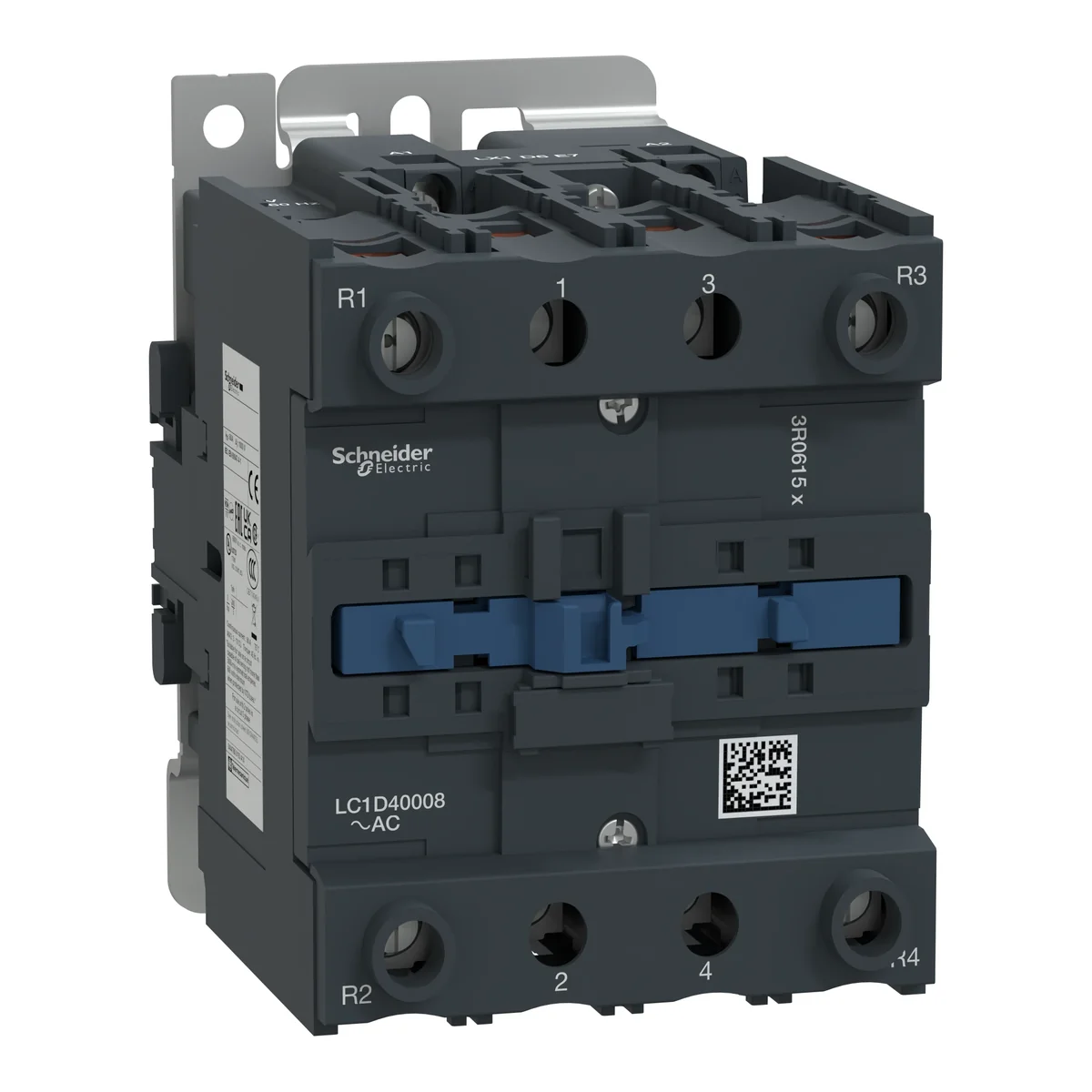

contactor 4 poles 60A AC-1 contacts 2 NO + 2 NC coil voltage 230VAC LC1D40008P7

local index:
ATA090SCHN
Catalog No:
LC1D40008P7
EAN code:
3389110070613
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 4
Control circuit voltage [V]: 230
Contact: 2NO+2NC
Price:
275,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

contactor 4 poles 60A AC-1 contacts 2 NO + 2 NC coil voltage 230VAC

Technical data

  • Number of poles
    4
  • Contact
    2NO+2NC
  • PKWIU
    27.12.24.0
  • Control circuit voltage [V]
    230
  • Rated operational current [A]
    40

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    2
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated operation current Ie at AC-1, 400 V
    60 A
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    2
