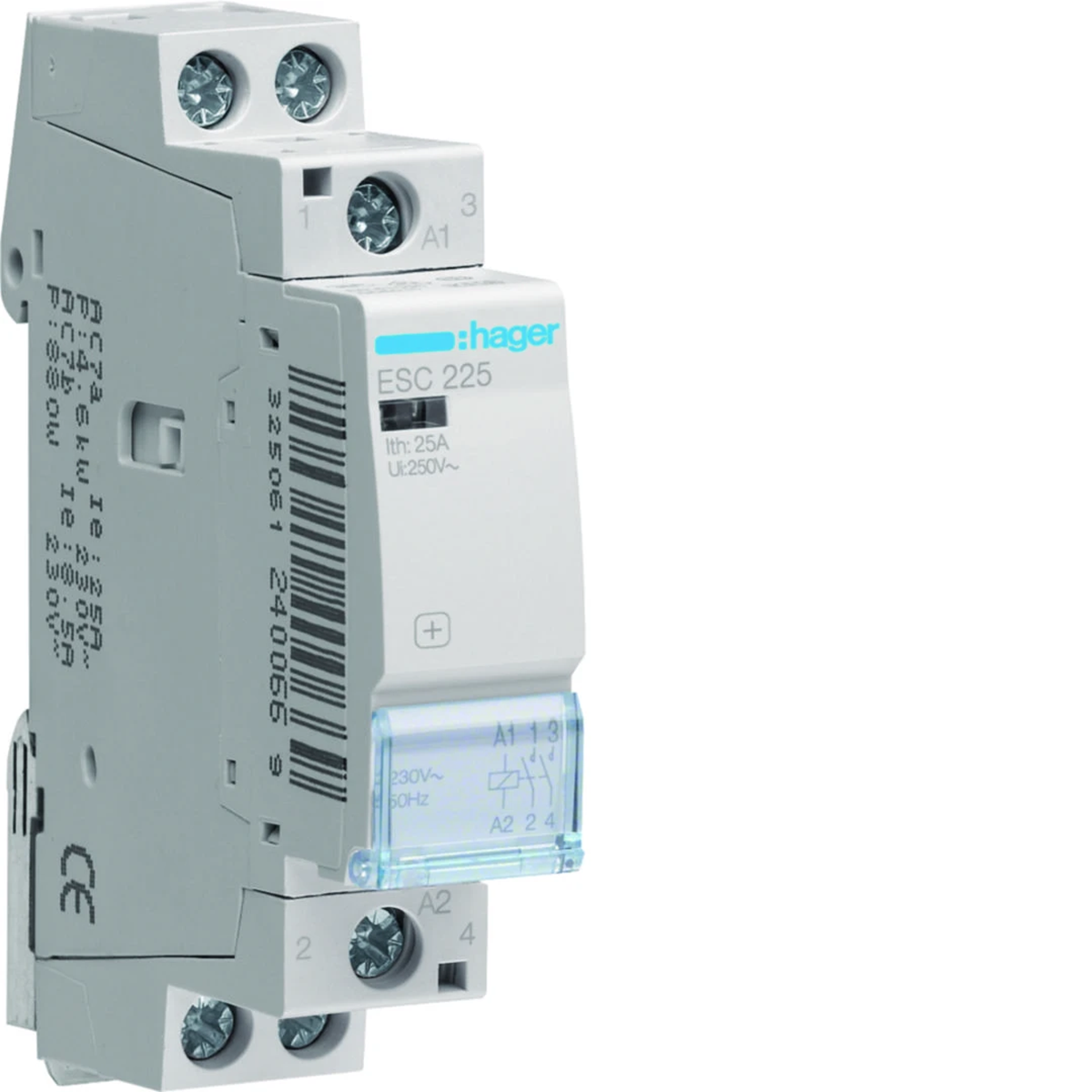

Contactor 2NO 25A 230V AC ESC225

local index:
ATM109HAGE
Catalog No:
ESC225
EAN code:
3250612400669
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 1
Number of contacts: 2NO 0NC
Price:
38,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 90 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2NO contacts - Standard version contactor.

Technical data

  • Depth [mm]
    60
  • Number of contacts
    2NO 0NC
  • Rated voltage [V]
    230
  • Width [mm]
    17.85
  • Number of modules
    1
  • Number of modules
    1
  • Maximum input power [VA]
    10.7
  • Power dissipation [W]
    5.9
  • Height [mm]
    83
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    230 ... 230 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,117 0,122 13,540 347,960
Width (m) 0,080 0,080 0,320 0,800
Length (m) 0,025 0,025 0,215 1,006
Depth (m) 0,095 0,095 0,360 1,200
