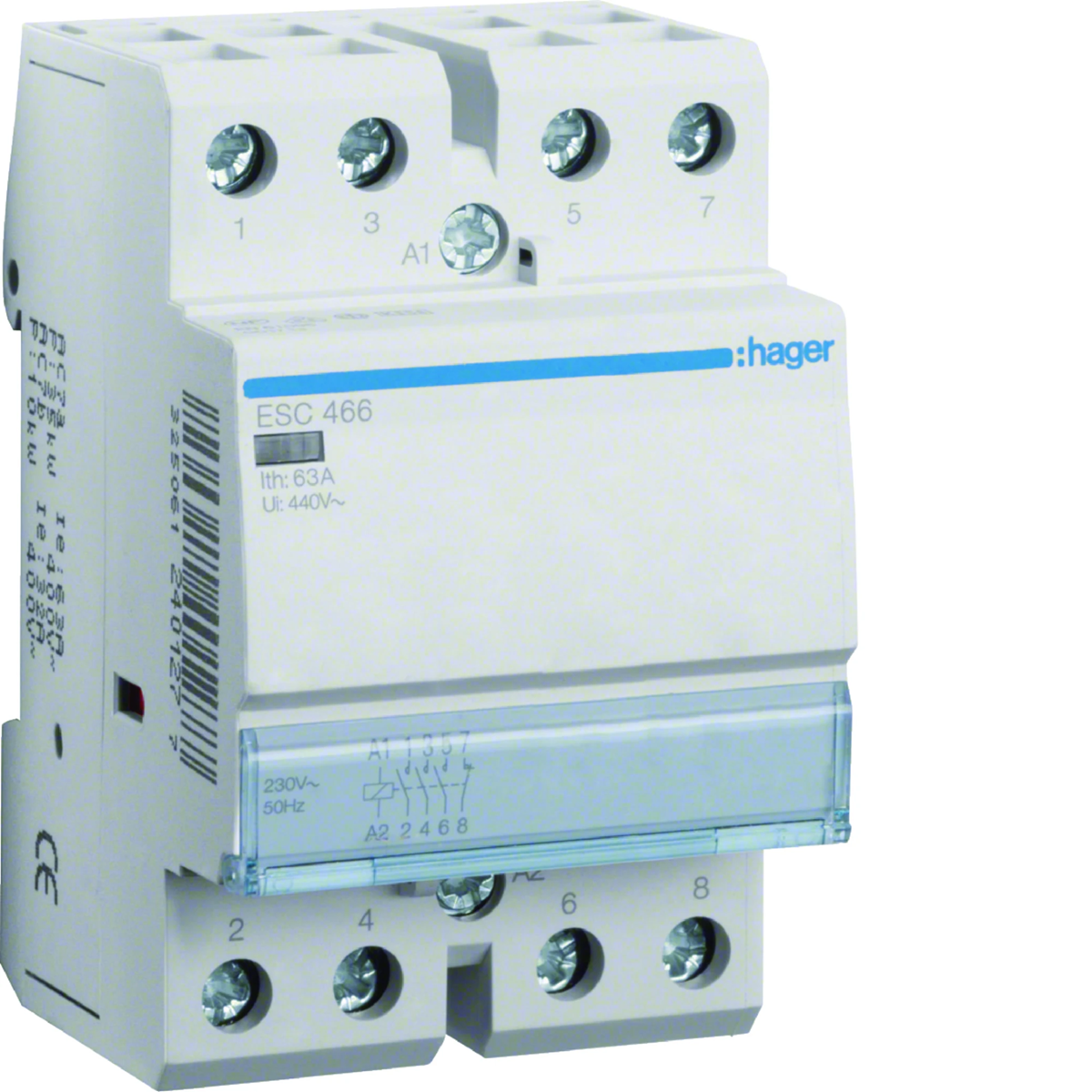

Contactor 230VAC 3NO+1NC 63A ESC466

local index:
ATC002HAGE
Catalog No:
ESC466
EAN code:
3250612401277
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 60
AC control voltage [V]: 230
Price:
115,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc.

Contact position indicator (window in the front of the housing). Available version with operating mode selection by means of a manual switch located on the front of the housing:

  •  1: permanent on, no electric control possible
  •  Auto: mode automatic
  •  0: permanent shutdown, no electrical control possible.

Higher load capacity:
Devices marked with the mark have a reinforced structure that allows the connection of more sources light sources compared to traditional modular constructions of installation contactors.

Application:

  •  incandescent lamps (traditional and halogen bulbs)
  •  linear and compact fluorescent lamps,
  •  discharge lamps (high-pressure sodium and mercury lamps, metal halide lamps),
  •  LED sources,< /li>
  •  resistive loads (category AC-7a)
  •  inductive loads (category AC-7b)

To limit the influence of generated heat for the operation of contactors, it is recommended to use the spacer Art. LZ060.

Technical data

  • Rated frequency [Hz]
    50
  • AC control voltage [V]
    230
  • Rated current [A]
    63
  • Height [mm]
    85
  • Mechanical durability (number of cycles)
    1000000
  • PKWIU
    27.12.24.0
  • Depth [mm]
    60
  • Rated voltage [V]
    400
  • Width [mm]
    54
  • Electrical endurance (number of cycles)
    30000
  • Number of modules
    3

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    3
  • Max. incandescent lamp load
    6500 W
  • Max. load fluorescent lamp (Duo circuit)
    4700 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    63 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    1
  • Max. load fluorescent lamp
    3000 VA
  • Max. load fluorescent lamp (parallel compensated)
    2100 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Pakiet Paleta Karton
Quantity 48 pcs. 1152 pcs. 1 pcs. 4 pcs.
Weight (kg) 17,260 414,240 0,347 1,410
Width (m) 0,315 0,080 0,054 0,100
Length (m) 0,210 0,099 0,085 0,085
Depth (m) 0,370 0,120 0,065 0,225
