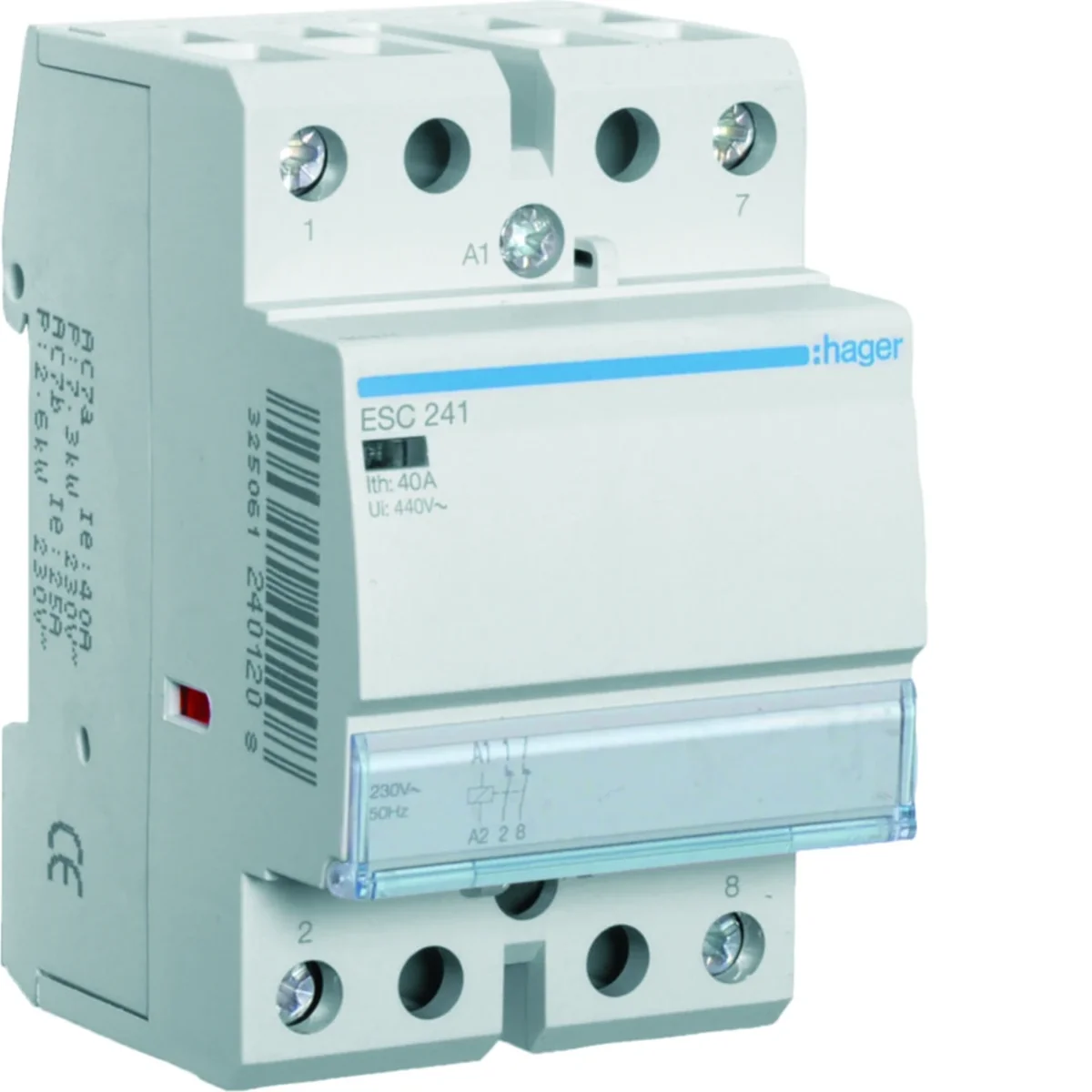

Contactor 230VAC 2NC 40A ESC241

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear
