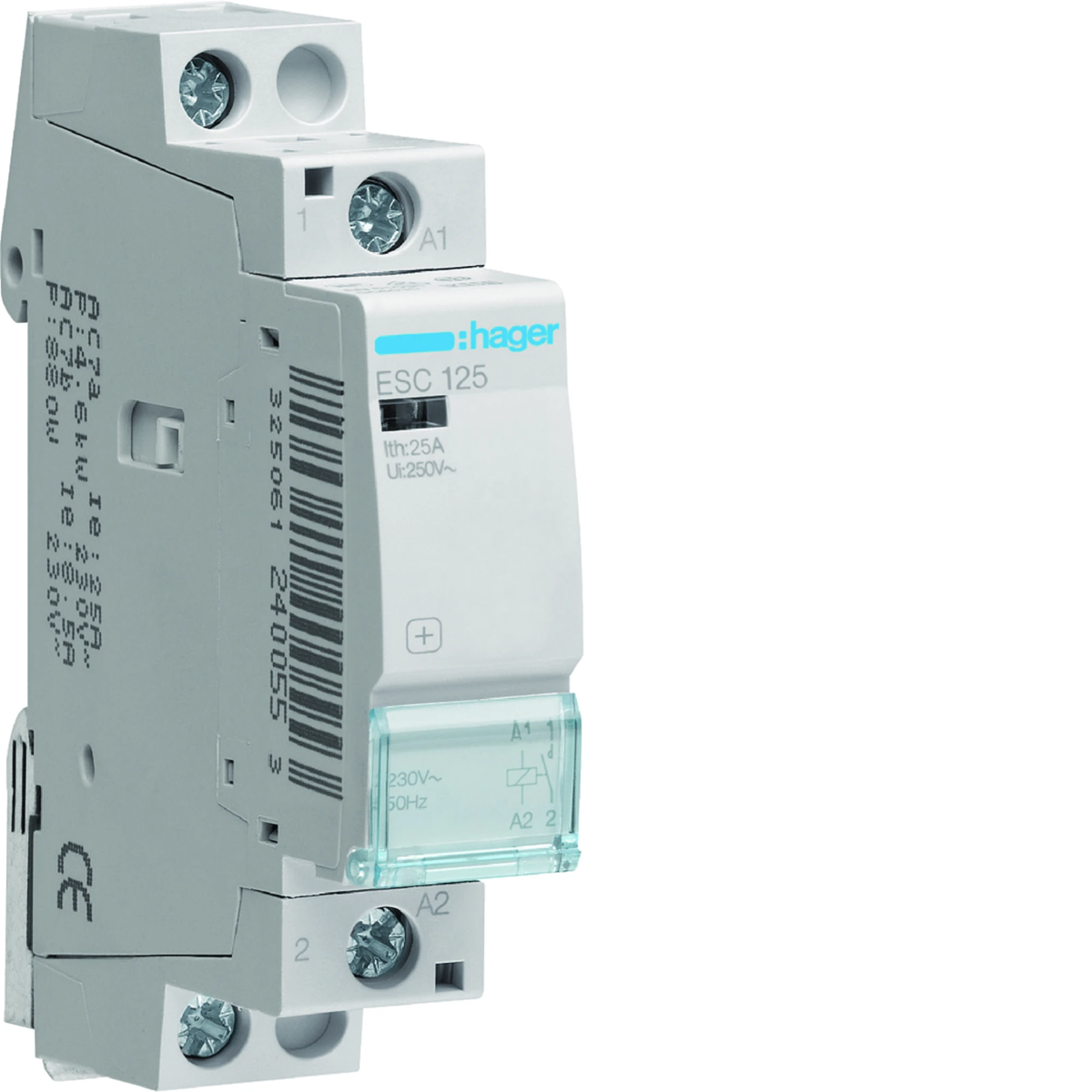

Contactor 1NO 25A 230V AC ESC125
local index:
ATM141HAGE
Catalog No:
ESC125
EAN code:
3250612400553
Price:
42,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
1NO contacts - Standard version contactor.
Technical data
-
Depth [mm]60
-
Rated voltage [V]230
-
Width [mm]17.85
-
Number of modules1
-
Number of modules1
-
Power dissipation [W]4.4
-
Height [mm]83
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage230 ... 230 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact1
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Manufacturer details
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,110 | 0,115 | 12,805 | 330,320 |
| Width (m) | 0,080 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,025 | 0,025 | 0,215 | 1,006 |
| Depth (m) | 0,095 | 0,095 | 0,360 | 1,200 |
