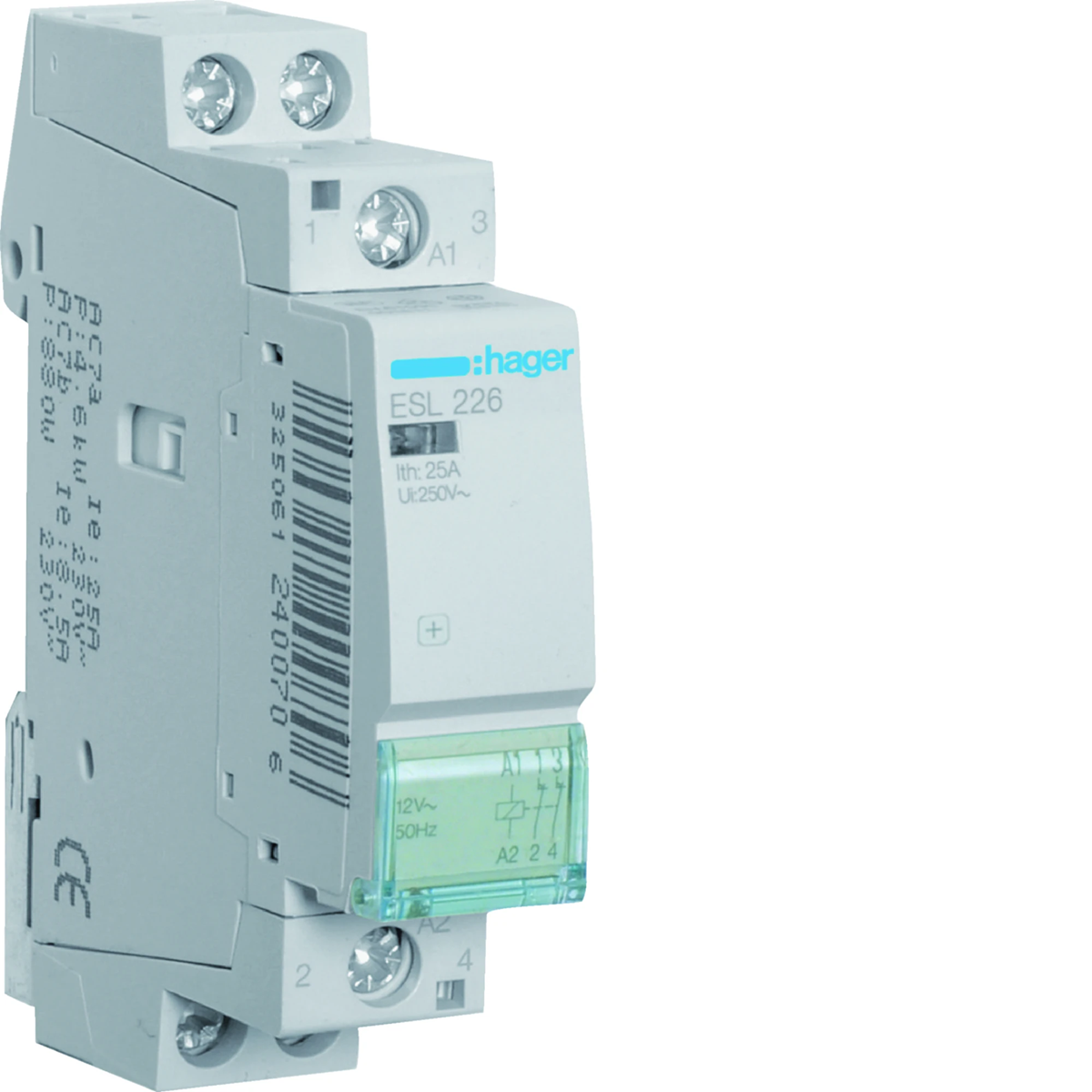

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).
Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard
Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear
A kind of package | Pakiet | Paczka | Paleta |
Quantity | 1 pcs. | 108 pcs. | 2592 pcs. |
Weight (kg) | 0,123 | 13,724 | 352,376 |
Width (m) | 0,080 | 0,315 | 0,800 |
Length (m) | 0,018 | 0,215 | 1,010 |
Depth (m) | 0,093 | 0,365 | 1,200 |
