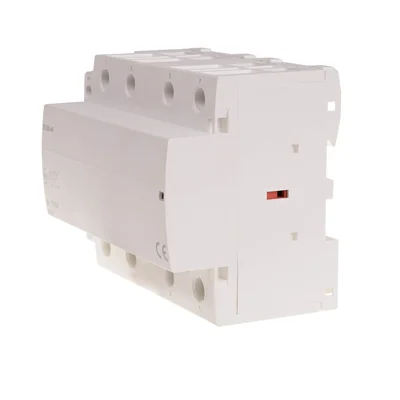

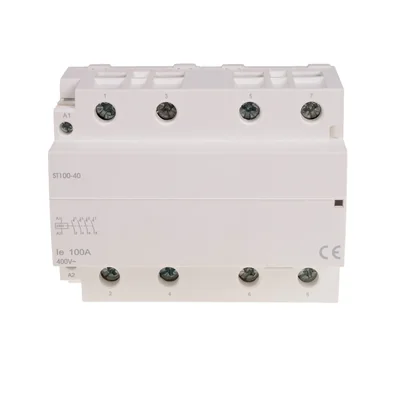

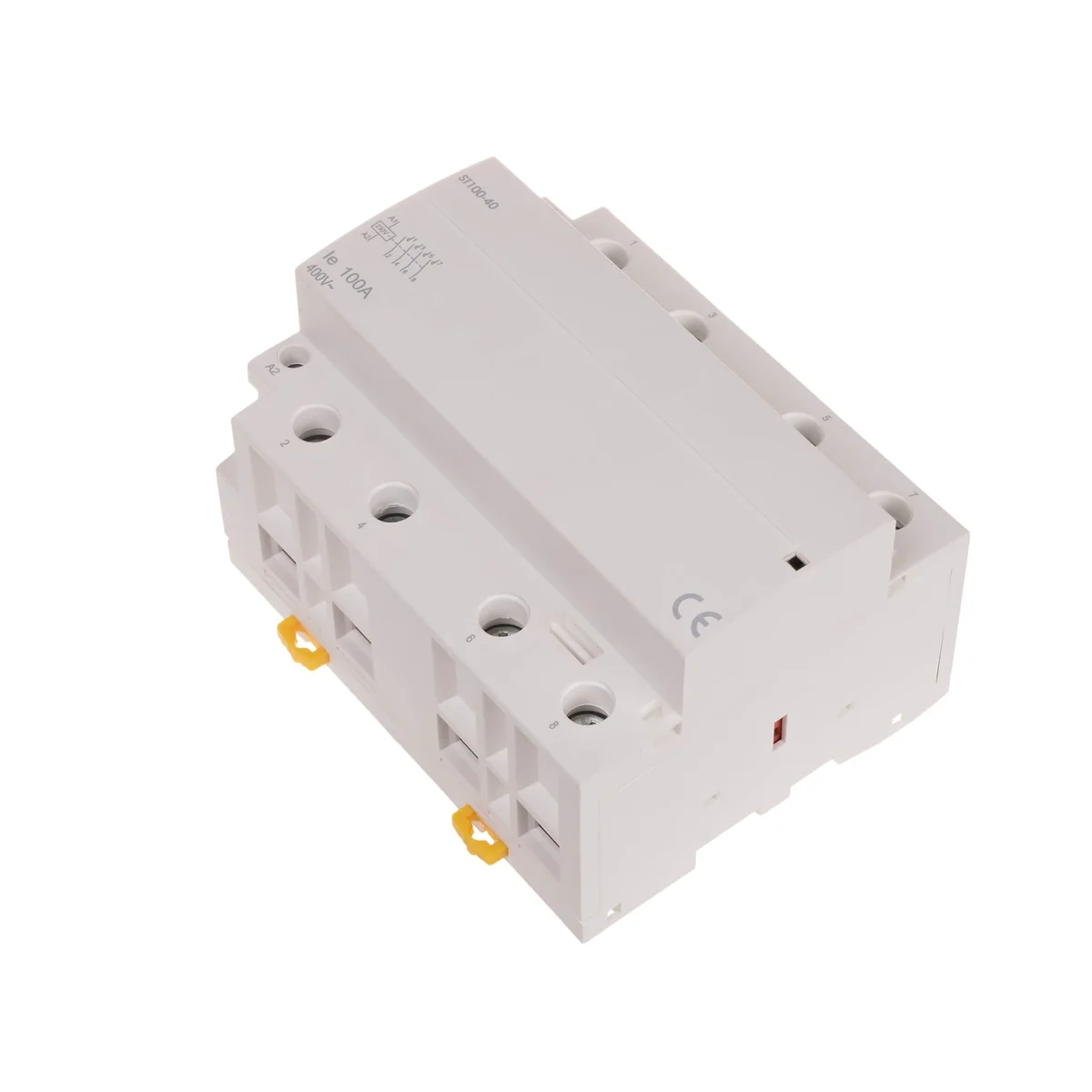

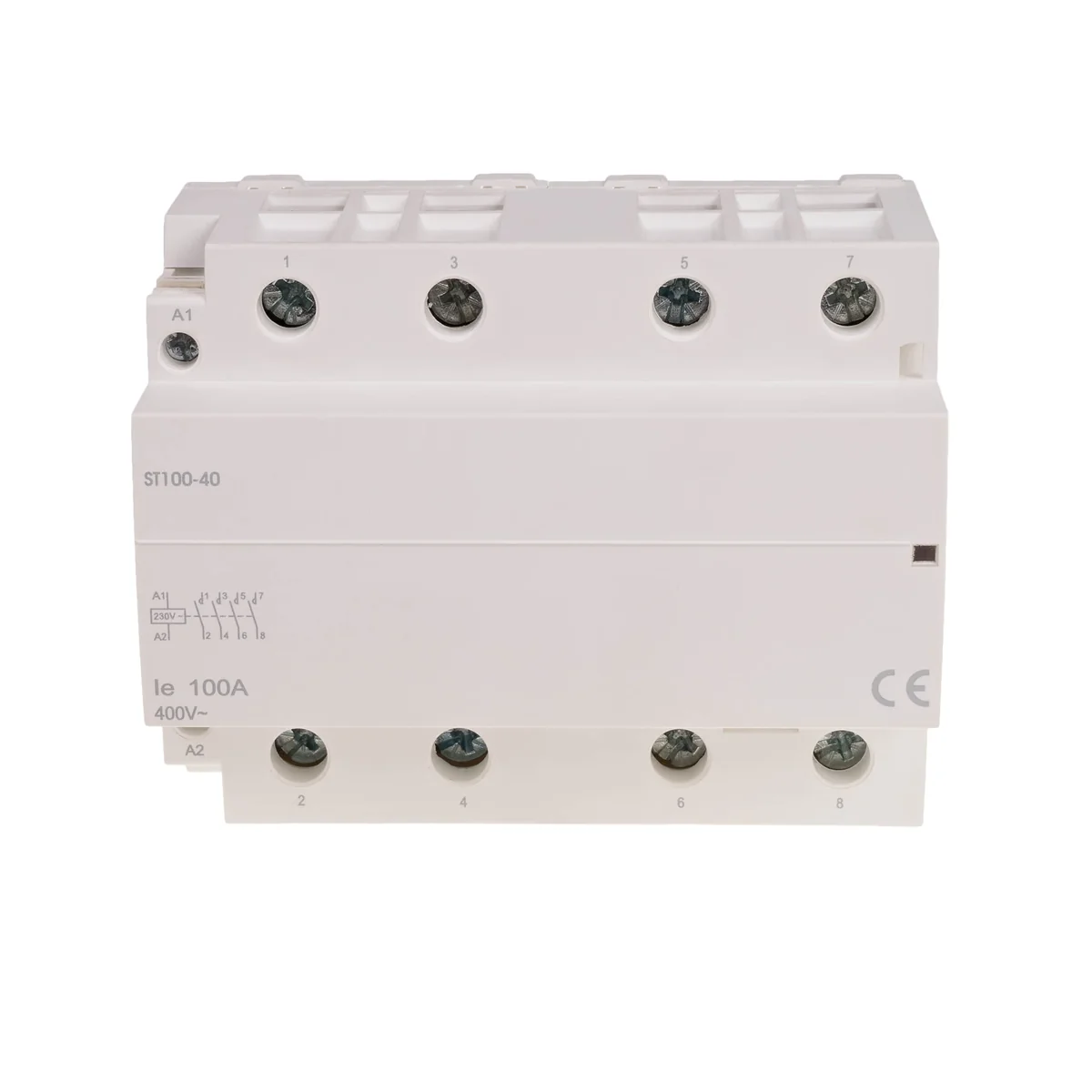

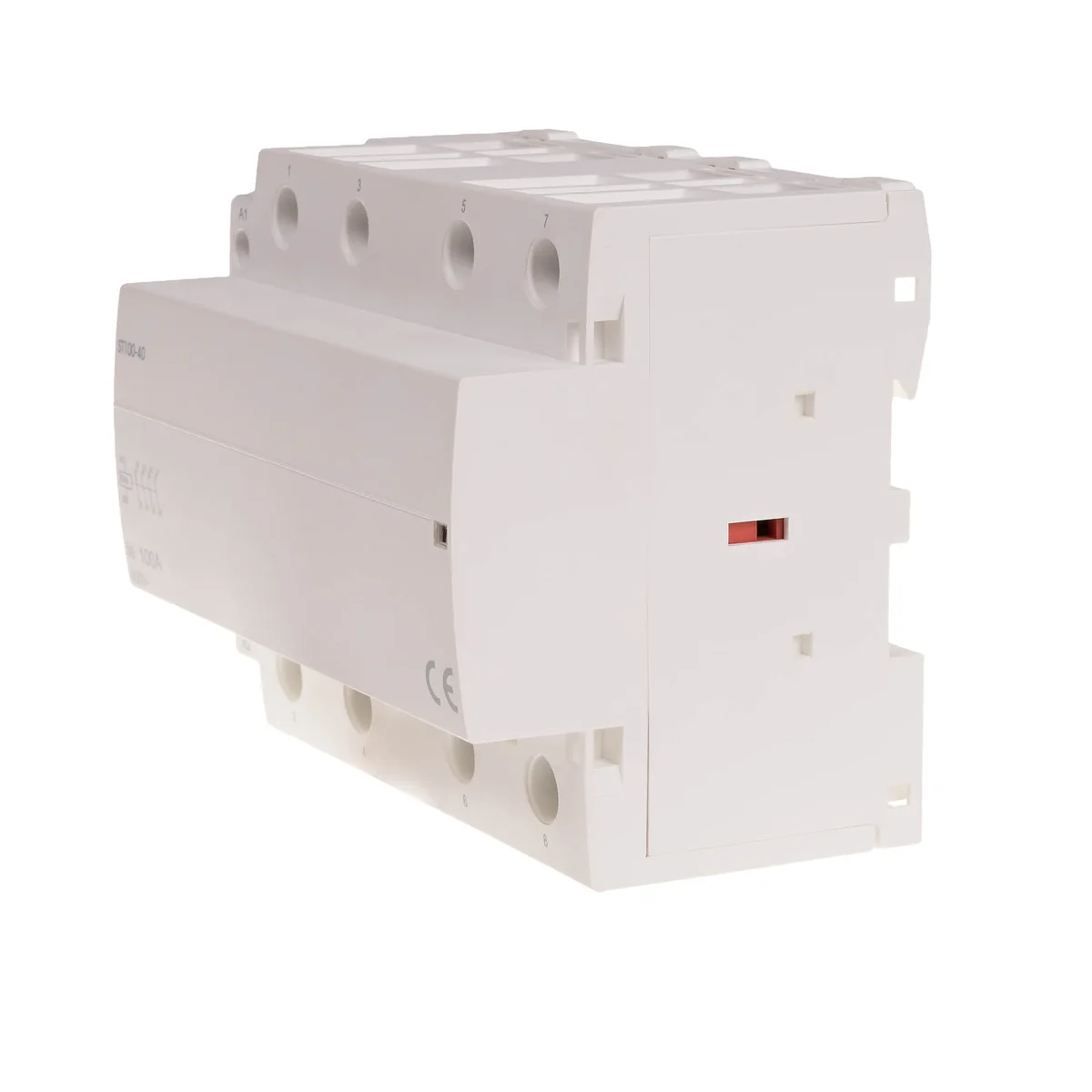

Contactor 100A 230V contacts 4XNO ST100-40

local index:
ATA003FIFQ
Catalog No:
ST100-40
EAN code:
5908312599920
Manufacturer: F&F
Number of main contacts NO: 4
Installation: On the TH-35 rail
Power [V]: 230
Price:
79,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Contactor with 4xNO contacts (100A, 230V)

Technical data

  • Number of main contacts NO
    4
  • Power [V]
    230
  • Installation
    On the TH-35 rail
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    230 ... 230 V
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Slider for hand switch
    No
  • Built-in depth
    65 mm
  • Degree of protection (IP)
    IP20
  • Rated operation current
    100 A
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    38000 W
  • Width in number of modular spacings
    6
  • Additional equipment possible
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,100
Length (m) 0,090
Depth (m) 0,075
