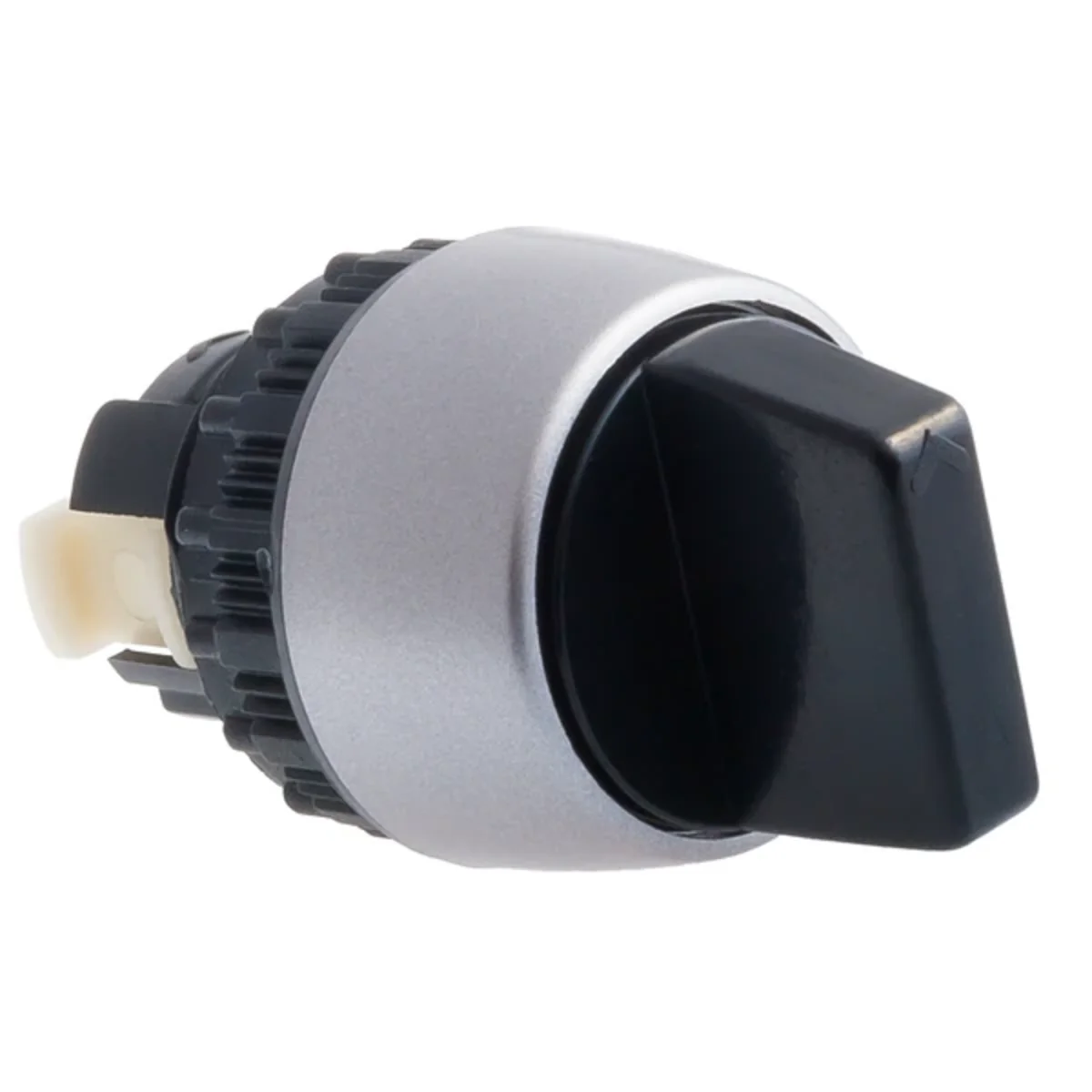

Complete three-position rotary drive with a green feather ST22-P3C.Z\.

local index:
AKS332SPAM
Catalog No:
ST22-P3C.Z\.
EAN code:
5907723031241
Manufacturer: SPAMEL
Color: Black
Shape: Round
Housing material: Plastic
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
3,09 €
gross / pcs.
(including VAT 23%)
Last lowest price: 3,09 € gross
Base price: 8,78 € gross -65%
Delivery in 3h
Accessible 9 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Complete three-position rotary drive with a green feather

Technical data

  • Color
    Black
  • Housing material
    Plastic
  • Level of security
    IP65
  • Shape
    Round
  • Rated current [A]
    10
  • Accurate color
    Black

Other technical data

  • Number of switch positions
    3
  • Suitable for illumination
    No
  • Construction type lens
    Round
  • Width opening
    29 mm
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of control element
    Other
  • Colour control element
    Green
  • Hole diameter
    22 mm
  • Height opening
    29 mm
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP65
