Complete push-button with covered push-button green illuminated 1 NO contact ST22-KLZ-10-230-LED\AC

local index:
AKS934SPAM
Catalog No:
ST22-KLZ-10-230-LED\AC
EAN code:
5907723008533
Manufacturer: SPAMEL
Color: Green
Rated insulation voltage [V]: 500
Level of security: IP65
Price:
23,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

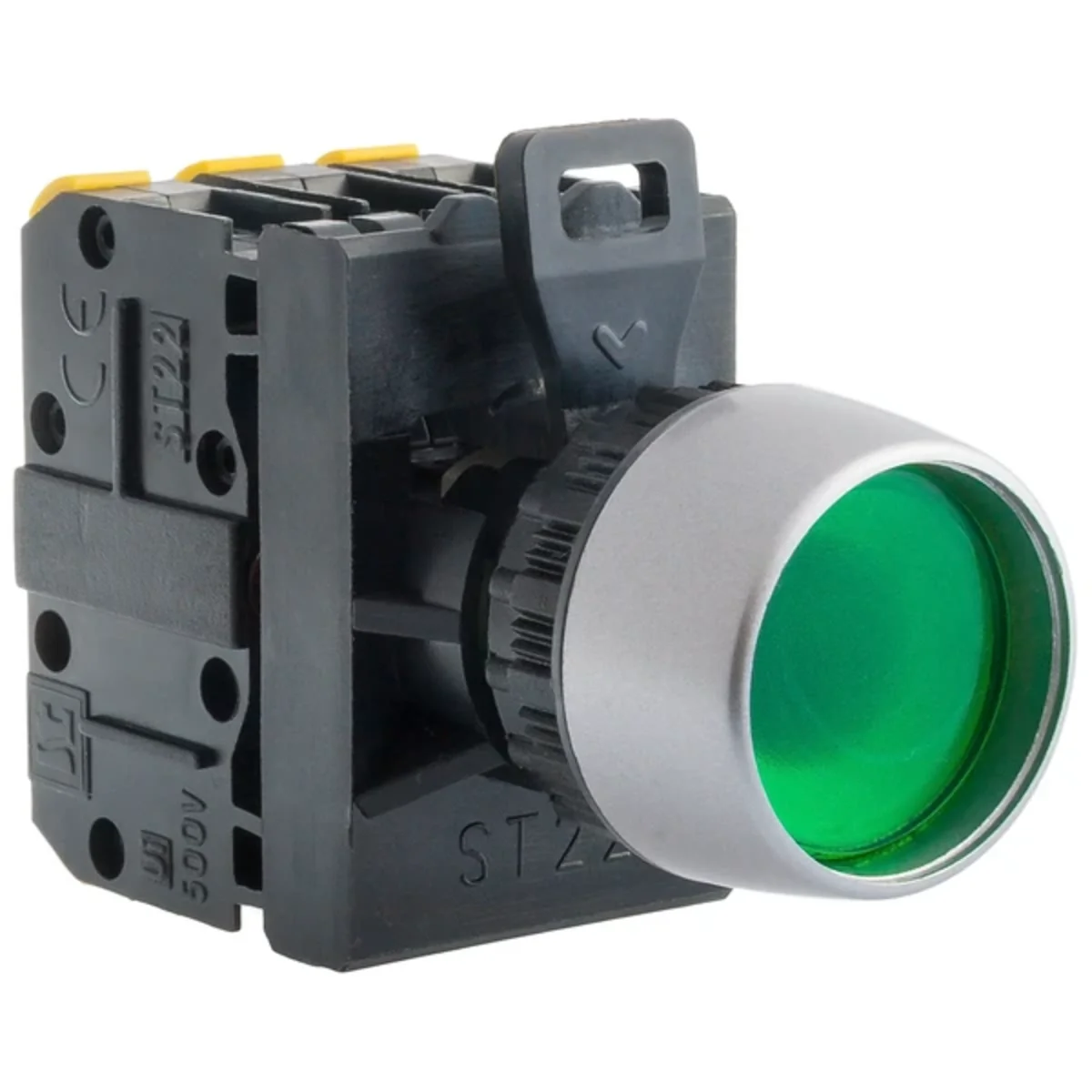

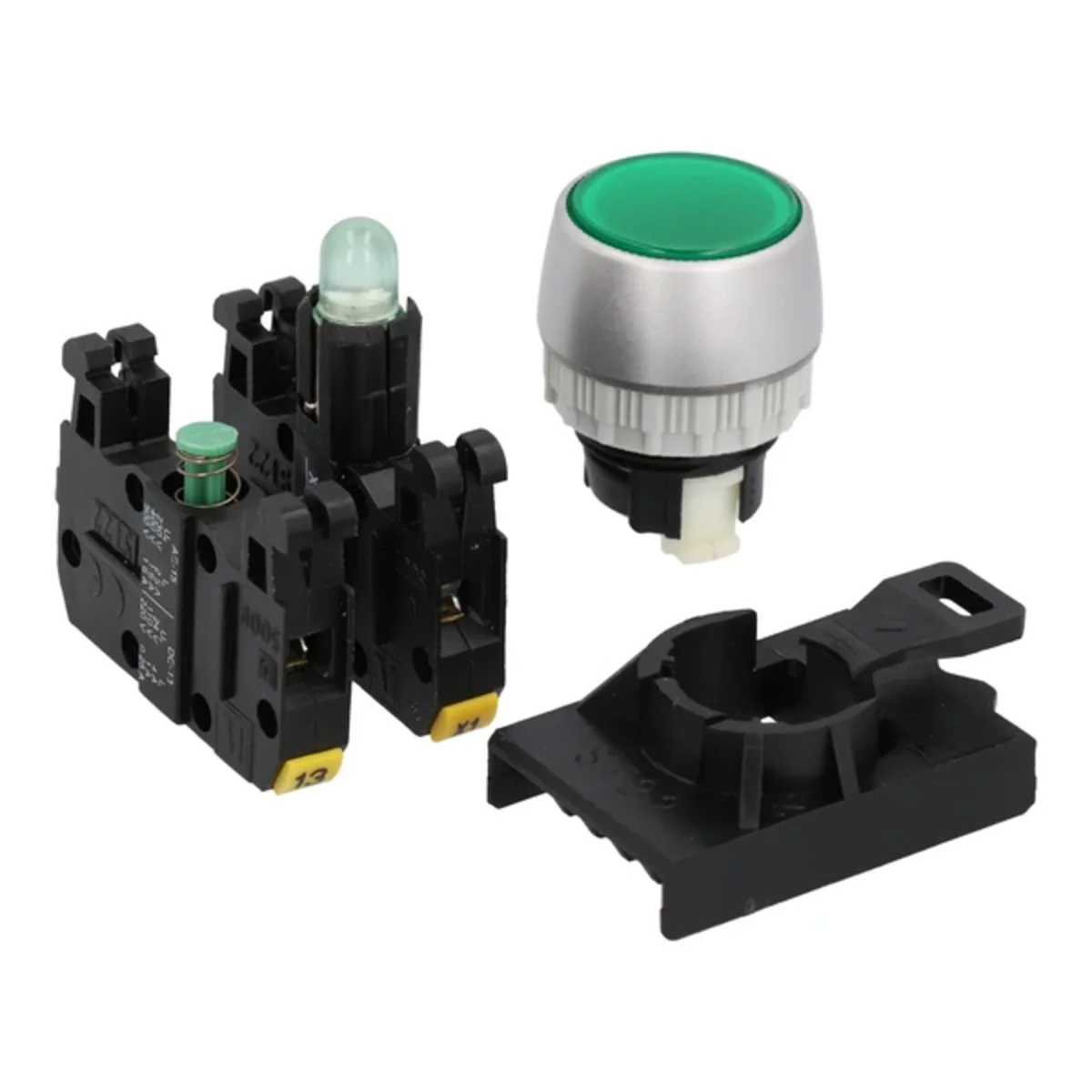

Complete push-button with covered push-button green illuminated 1 NO contact

Technical data

  • Color
    Green
  • Level of security
    IP65
  • Rated insulation voltage [V]
    500
  • Accurate color
    Green

Other technical data

  • Number of command positions
    1
  • Colour button
    Green
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    No
  • Supply voltage lamp
    230 V
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
  • Type of button
    Flat
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    Yes
  • Spring-return
    Yes
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
