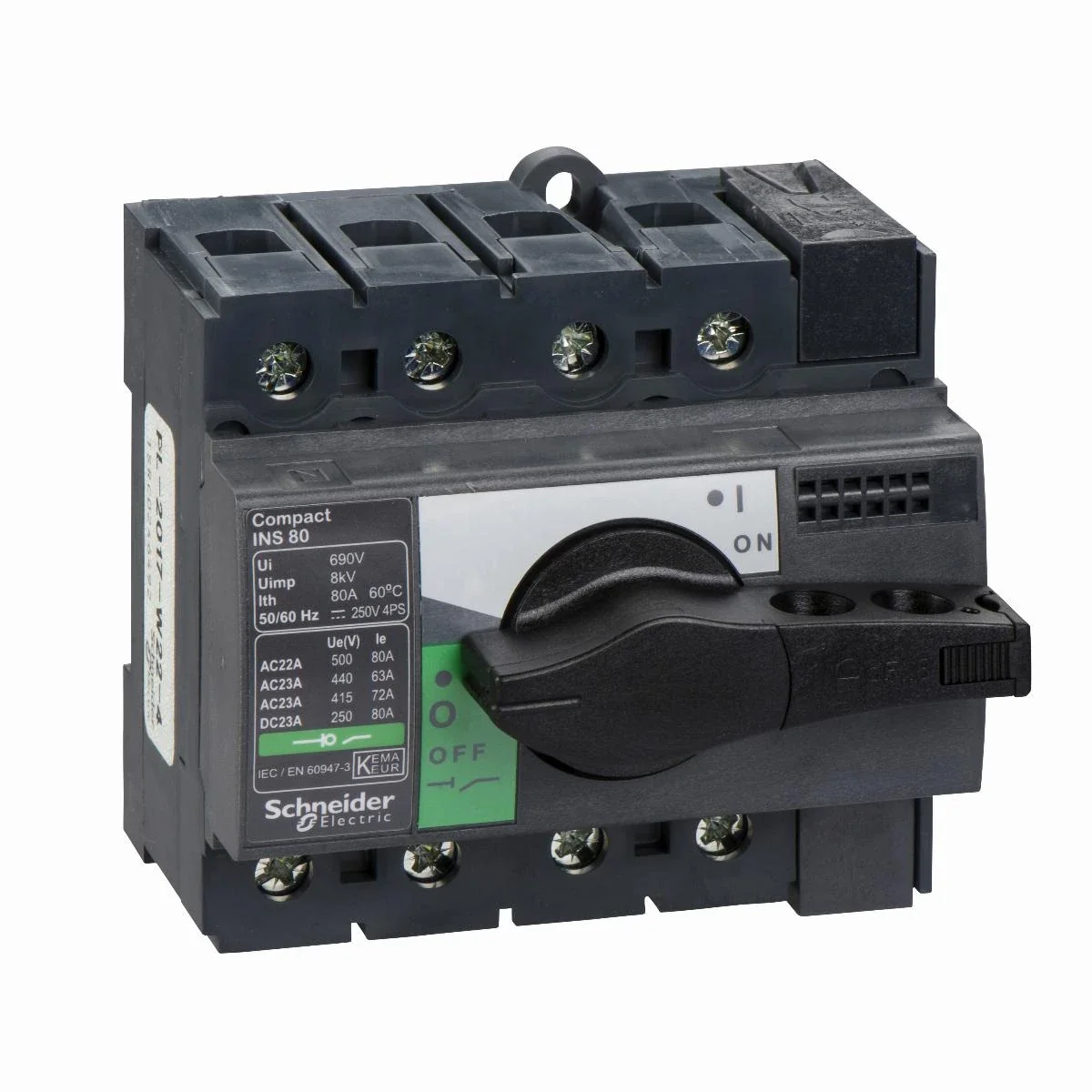

Compact INS INV switch disconnector INS80 80A 4P 28905

local index:
AKS235SCHN
Catalog No:
28905
EAN code:
3303430289050
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 4
DC rated voltage [V]: 125
Rated current [A]: 80
Price:
128,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Compact INS INV switch disconnector INS80 80A 4P

Technical data

  • Number of poles
    4
  • Rated current [A]
    80
  • DC rated voltage [V]
    125
  • PKWIU
    27.12.22.0

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    500 V
  • Rated permanent current Iu
    80 A
  • Rated short-time withstand current lcw
    3 kA
  • Conditioned rated short-circuit current Iq
    36 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    2
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    Yes
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP40
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    500 ... 500 V
  • Rated permanent current at AC-23, 400 V
    72 A
  • Rated operation power at AC-23, 400 V
    37 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    Yes
  • Suitable for intermediate mounting
    No
  • Type of control element
    Long turning handle
  • Type of electrical connection of main circuit
    Screw connection
