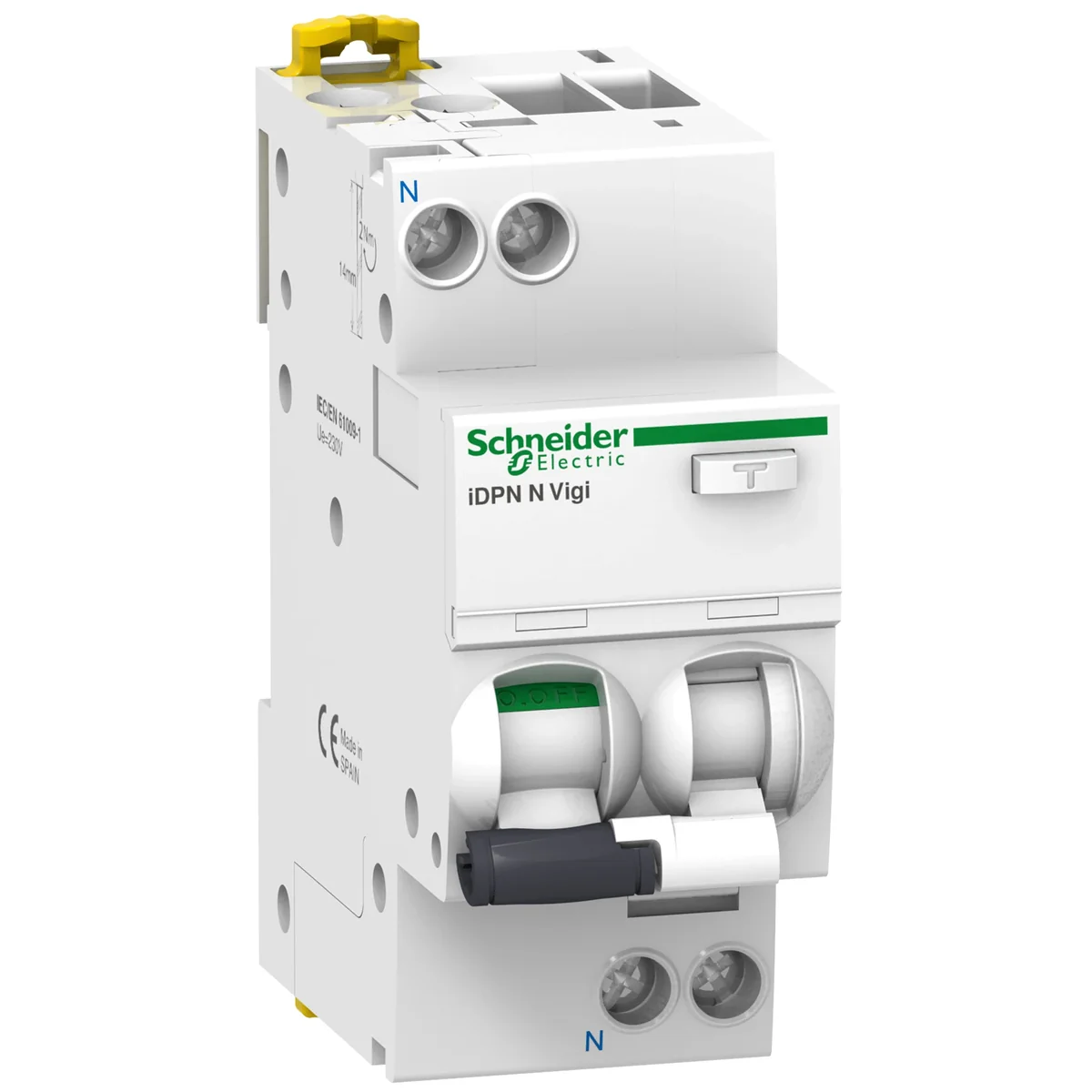

Combined circuit breaker iDPNNVigi-C6-30-A C 6A 1N-pole 30 mA type A A9D32606
local index:
ARB038SCHN
Catalog No:
A9D32606
EAN code:
3606480472046
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
91,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Combined circuit breaker iDPNNVigi-C6-30-A C 6A 1N-pole 30 mA type A
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 60 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 10 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui400 V
-
Rated current6 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Disconnection characteristicOther
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 16 mm²
