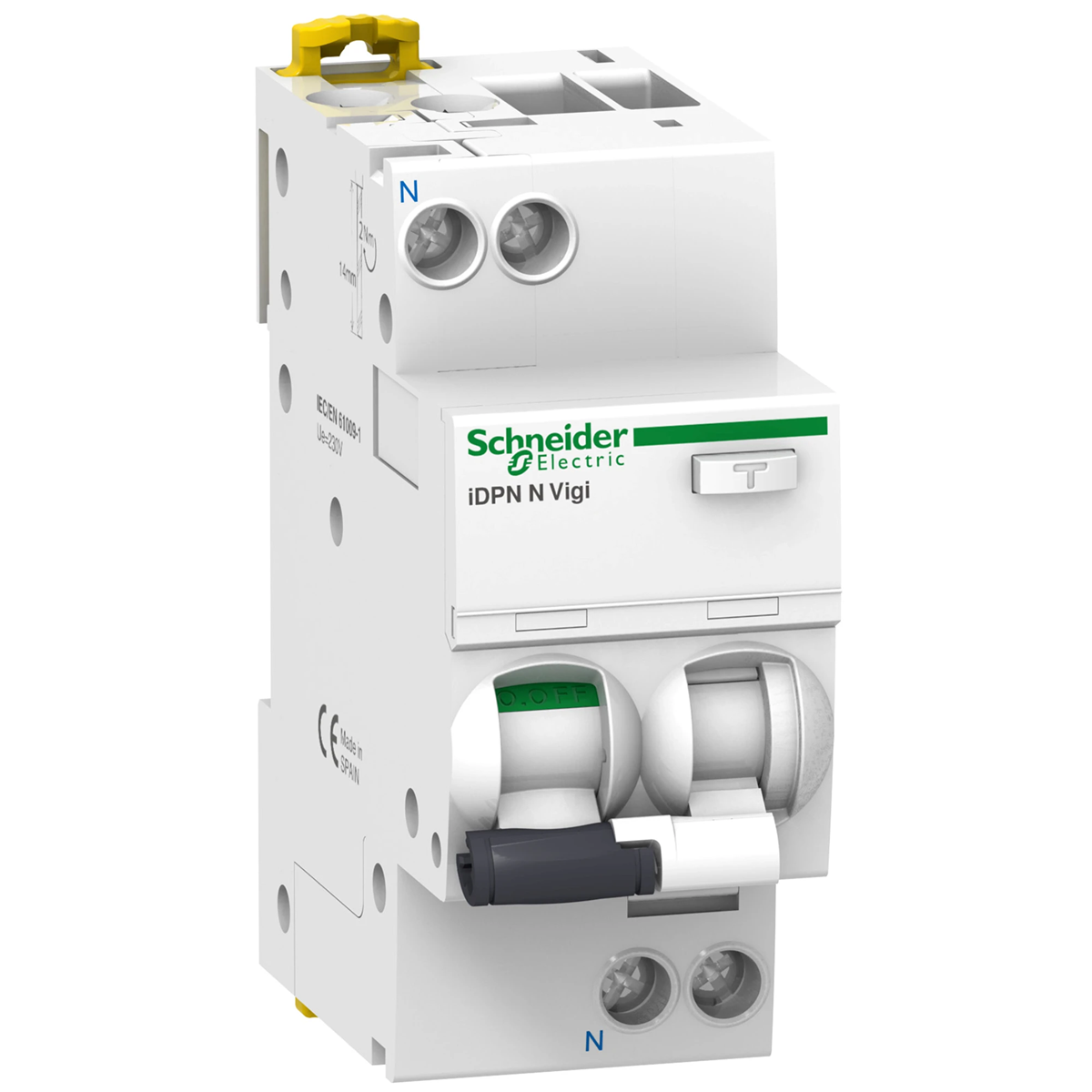

Combined circuit breaker iDPNNVigi-B25-30-AC B 25A 1N-pole 30 mA type AC A9D55625
Lokaler Index:
ARB027SCHN
Katalognummer:
A9D55625
EAN-Code:
3606480472640
Hersteller:
SCHNEIDER ELECTRIC
Color: White
Preis:
68,56 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Combined circuit breaker iDPNNVigi-B25-30-AC B 25A 1N-pole 30 mA type AC
Technische Daten
-
ColorWhite
-
PKWIU27.12.23.0
Weitere technische Daten
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-5 ... 60 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 10 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui400 V
-
Rated current25 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Disconnection characteristicOther
-
Voltage typeAC
-
Release characteristicB
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 16 mm²
Hersteller-Details
-
HerstellerSchneider Electric Polska Sp. z o.o.
-
Adresse02-673 Warszawa ul. Konstruktorska 12
-
Steueridentifikationsnummer5220011965
