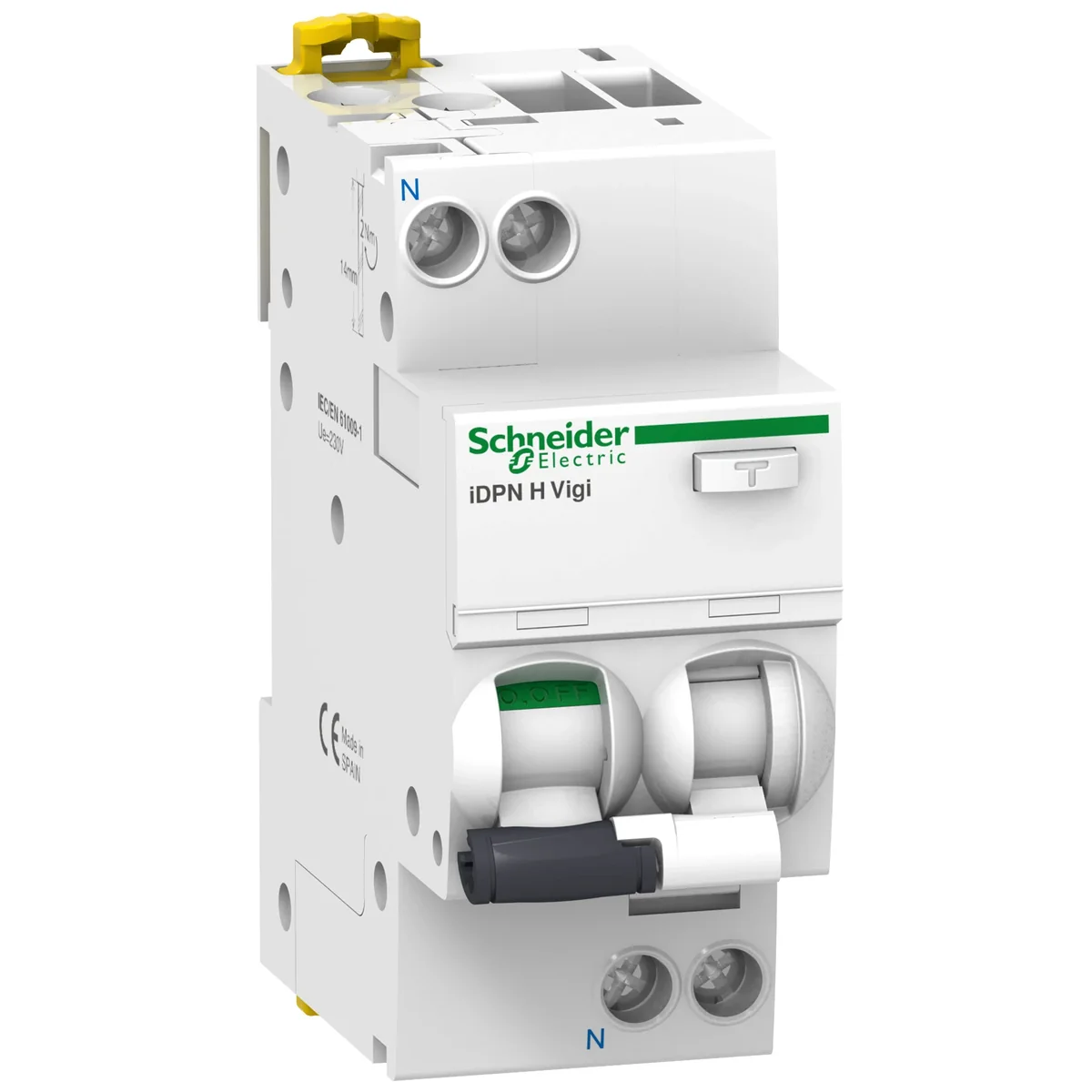

Combined circuit breaker iDPNHVigi-C25-30-A C 25A 1N-pole 30 mA type A A9D37625
local index:
ARB041SCHN
Catalog No:
A9D37625
EAN code:
3606480484384
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
101,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Combined circuit breaker iDPNHVigi-C25-30-A C 25A 1N-pole 30 mA type A
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 60 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 10 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui400 V
-
Rated current25 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to EN 6100910 kA
-
Disconnection characteristicOther
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 16 mm²
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
