Electrical apparatus
RCDs
RCDs with protection

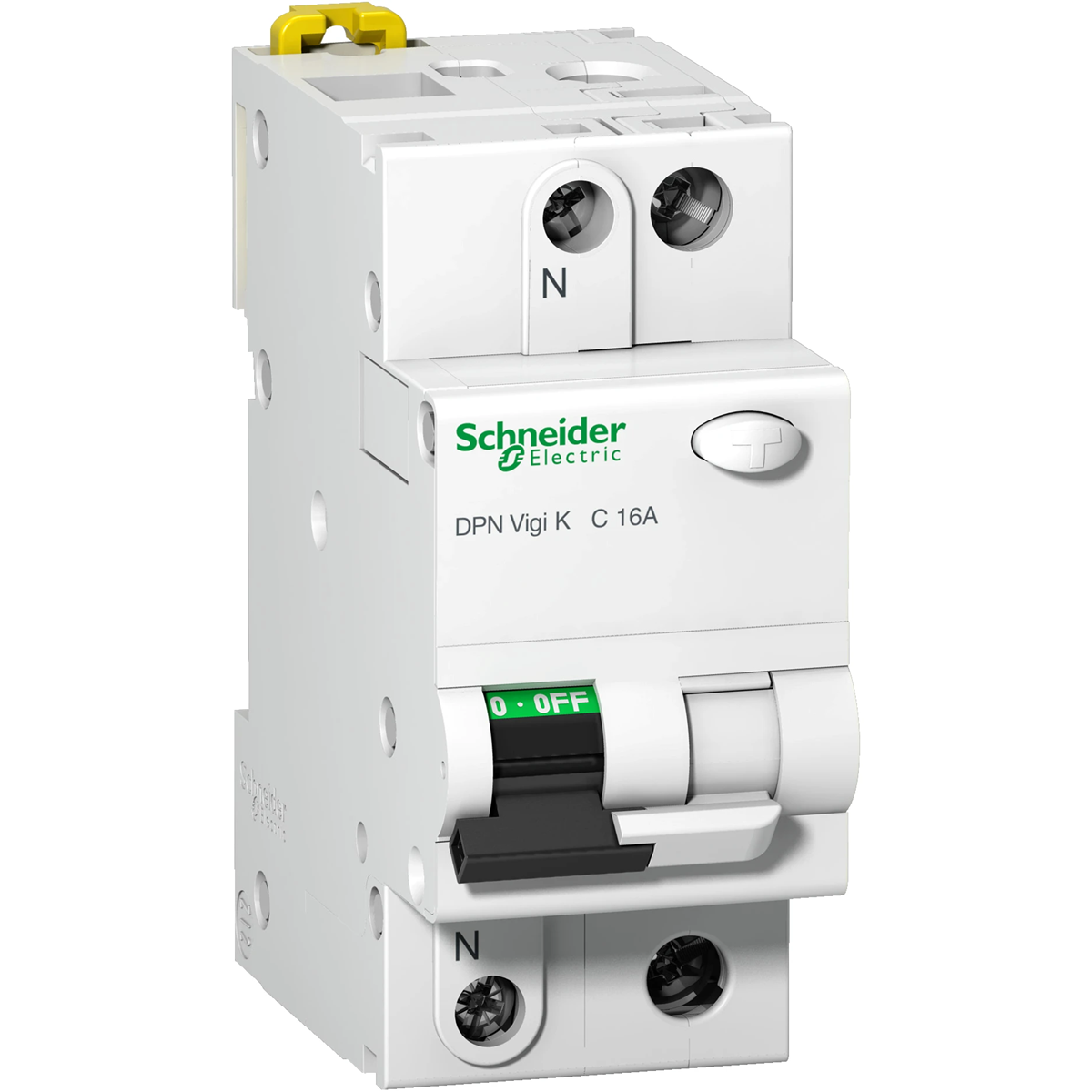

Combined circuit breaker DPNVigiK-C16-30-AC C 16A 1N-pole 30 mA type AC A9D20616
local index:
ARB037SCHN
Catalog No:
A9D20616
EAN code:
3606480551970
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
55,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Combined circuit breaker DPNVigiK-C16-30-AC C 16A 1N-pole 30 mA type AC
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
Number of poles (total)
2
Rated voltage
240 V
Rated impulse withstand voltage Uimp
4 kV
Rated fault current
0.03 A
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Surge current capacity
0.250 kA
Frequency
50 Hz
Concurrently switching neutral conductor
No
Over voltage category
3
Ambient temperature during operating
-5 ... 40 °C
Built-in depth
44 mm
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 16 mm²
Number of protected poles
1
Rated insulation voltage Ui
400 V
Rated current
16 A
Leakage current type
AC
Rated short-circuit breaking capacity according to EN 61009
6 kA
Disconnection characteristic
Undelayed
Voltage type
AC
Release characteristic
C
With interlocking device
Yes
Pollution degree
3
Width in number of modular spacings
2
Anti-nuisance tripping version
No
Connectable conductor cross section solid-core
1 ... 25 mm²
Files to download
ENVPEP120401EN_V1.pdf
EU decl - FD16040501E - RCBO_DPN Vigi K.pdf
