Electrical apparatus
Motor circuit breakers
Accessories for motor circuit breakers

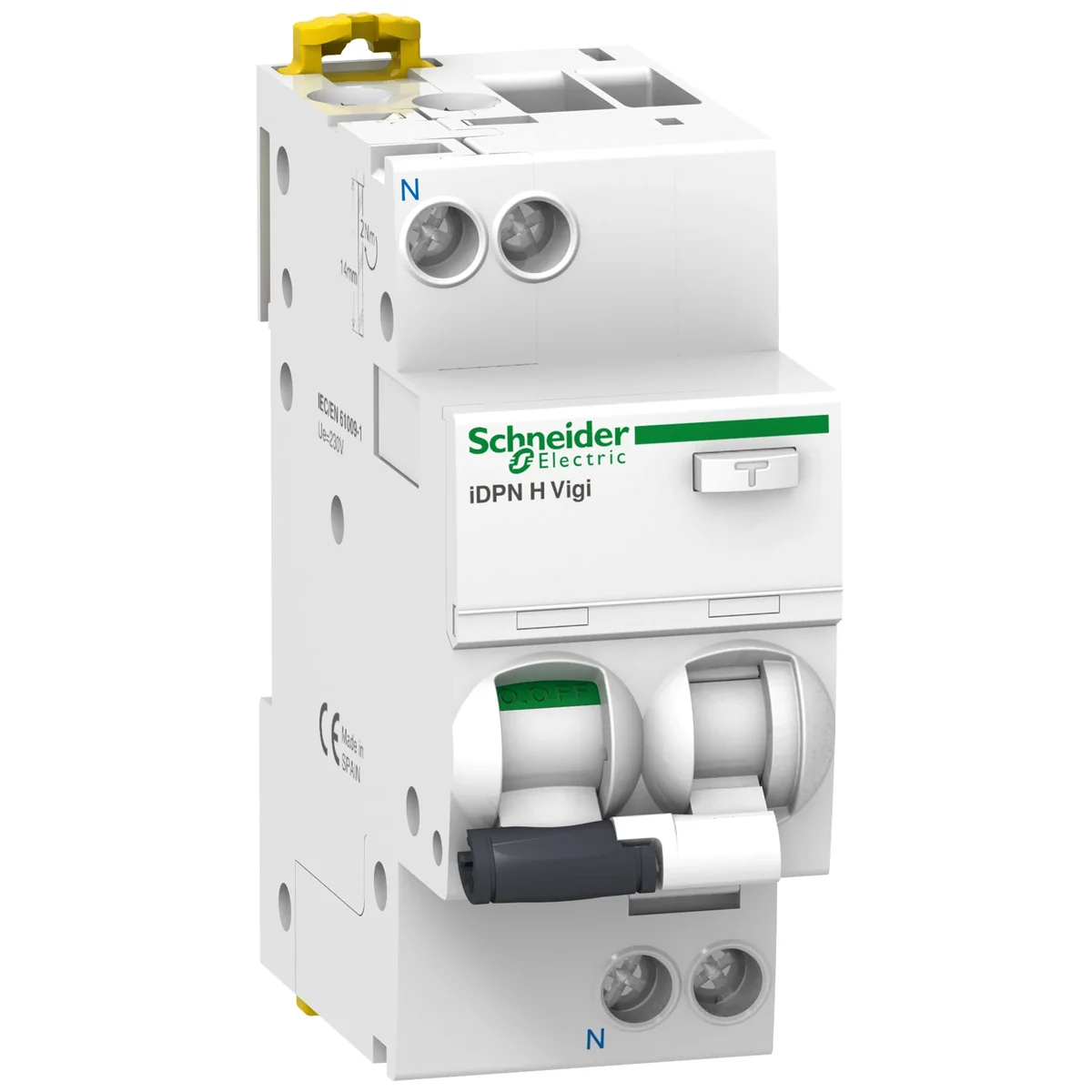

Combined circuit breaker Acti9 iDPNHVigi-B10-30-1N-A B 10A 1N-pole 30 mA type A A9D07610
local index:
ASA031SCHN
Catalog No:
A9D07610
EAN code:
3606480484292
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
84,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Combined circuit breaker Acti9 iDPNHVigi-B10-30-1N-A B 10A 1N-pole 30 mA type A
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
Number of poles (total)
2
Rated voltage
230 V
Rated impulse withstand voltage Uimp
4 kV
Rated fault current
0.03 A
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 61009-1
10 kA
Surge current capacity
0.25 kA
Frequency
50 Hz
Concurrently switching neutral conductor
Yes
Over voltage category
3
Ambient temperature during operating
-25 ... 60 °C
Built-in depth
44 mm
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 10 mm²
Number of protected poles
1
Rated insulation voltage Ui
400 V
Rated current
10 A
Leakage current type
A
Rated short-circuit breaking capacity according to EN 61009
10 kA
Disconnection characteristic
Other
Voltage type
AC
Release characteristic
B
With interlocking device
No
Pollution degree
3
Width in number of modular spacings
2
Anti-nuisance tripping version
No
Connectable conductor cross section solid-core
1 ... 16 mm²
Files to download
ENVPEP111021EN_V1.pdf
UKCA decl - FD16040101-UK - RCBO_iDPNaNH Vigi.pdf
