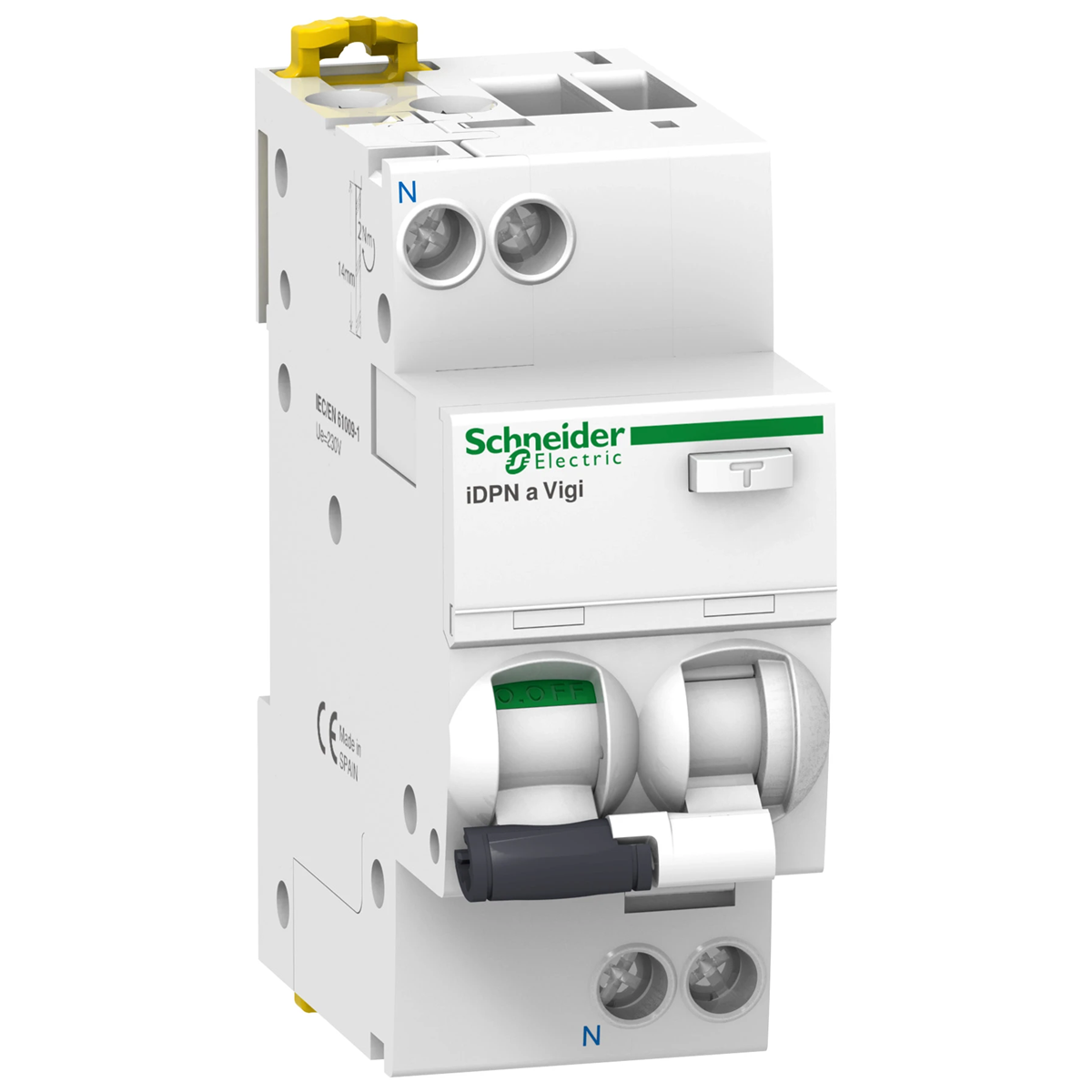

Combined circuit breaker Acti9 iDPNaVigi-C16-30-A A9D35616

local index:
ARB004SCHN
Catalog No:
A9D35616
EAN code:
3606480471667
Manufacturer: SCHNEIDER ELECTRIC
Trigger type: AND
Price:
98,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Combined circuit breaker Acti9 iDPNaVigi-C16-30-A

Technical data

  • Trigger type
    AND
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    4.5 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 60 °C
  • Built-in depth
    44 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 10 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    400 V
  • Rated current
    16 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to EN 61009
    4.5 kA
  • Disconnection characteristic
    Other
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 16 mm²
