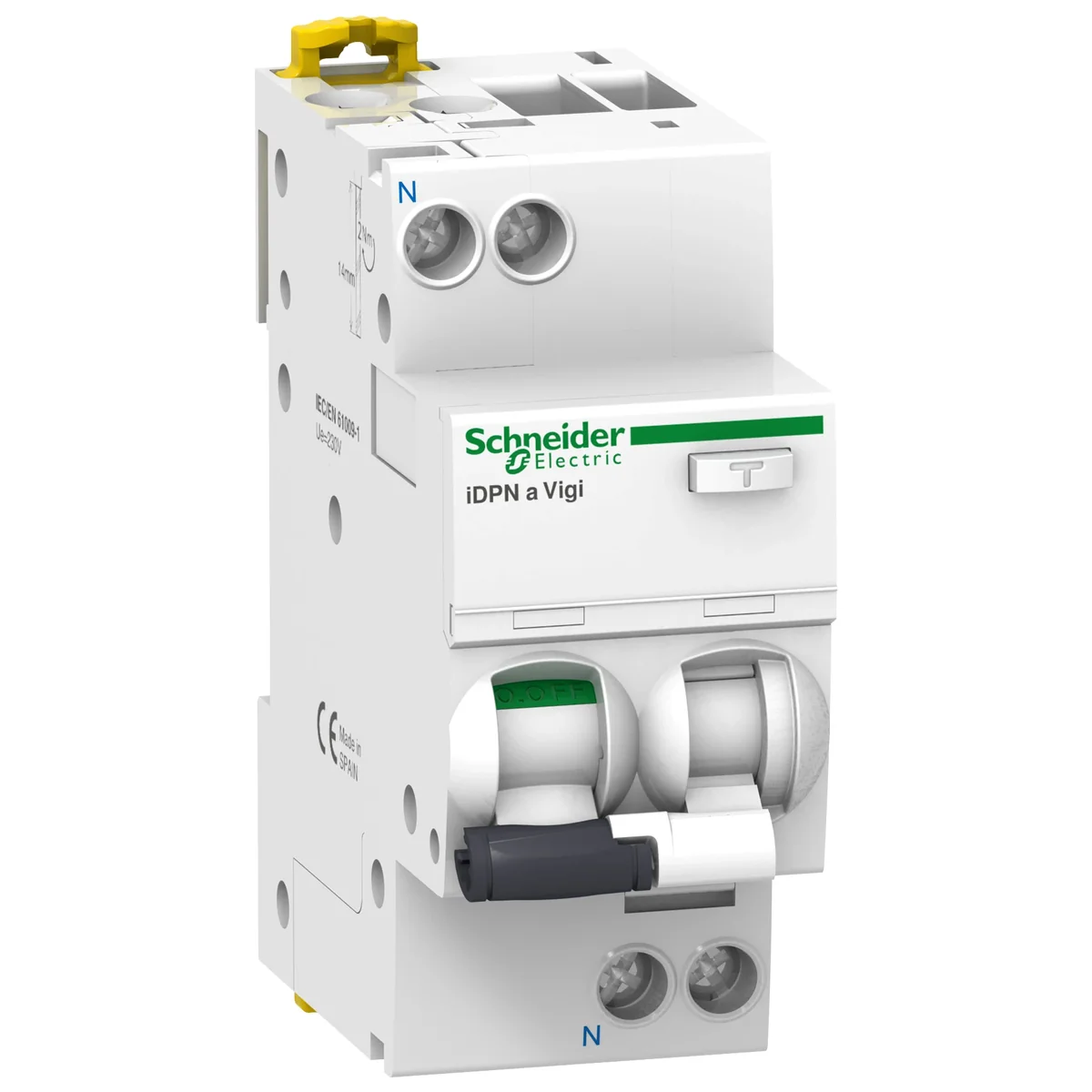

Combined circuit breaker Acti9 iDPNaVigi-C16-10-1N-AC C 16A 1N-pole 10 mA type A A9D05616
Lokaler Index:
ARP033SCHN
Katalognummer:
A9D05616
EAN-Code:
3606480471551
Hersteller:
SCHNEIDER ELECTRIC
Color: White
Preis:
867,15 zł
gross / stk.
(inklusive MwSt 23%)
Zur Angebotsanfrage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Combined circuit breaker Acti9 iDPNaVigi-C16-10-1N-AC C 16A 1N-pole 10 mA type A
Technische Daten
-
ColorWhite
-
PKWIU27.12.23.0
Weitere technische Daten
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.01 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-14.5 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 60 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 10 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui400 V
-
Rated current16 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to EN 610094.5 kA
-
Disconnection characteristicOther
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 16 mm²
