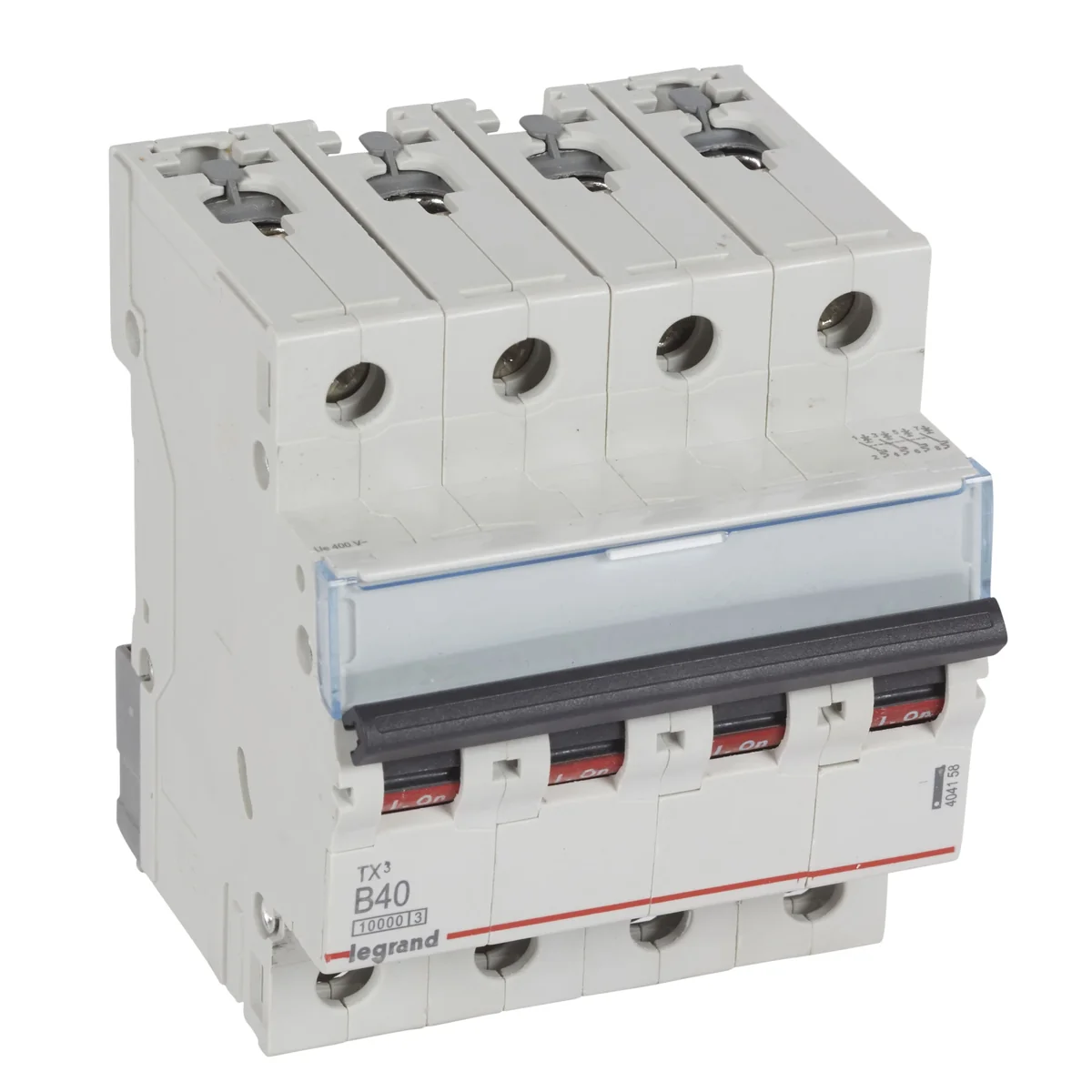

Circuit breaker TX3 S 314 4P B 40A 10000A 404158

local index:
ABB273LEGR
Catalog No:
404158
EAN code:
3414970393333
Manufacturer: LEGRAND
Characteristic: b
Rated current [A]: 40
Width in modules: 4
Price:
91,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker TX3 S 314 4P B 40A 10000A

Technical data

  • Characteristic
    b
  • Width in modules
    4
  • PKWIU
    27.12.22.0
  • Rated current [A]
    40
  • Weight [g]
    650

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    yes
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Number of poles (total)
    4
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    16 kA
  • Voltage type
    AC
  • Do instalacji podtynkowych
    yes
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 1 pcs. 12 pcs. 216 pcs.
Weight (kg) 0,574 7,088 127,584
Volume (m3) 0,000 0,000 0,001
Width (m) 0,078 0,228 1,200
Length (m) 0,089 0,205 0,770
Depth (m) 0,101 0,280 1,000
