LEGRAND

Circuit breaker TX3 S 303 3P C 10A 6000A 403543

local index:
ABC249LEGR
Catalog No:
403543
EAN code:
3414970389497
Price:
24,69 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

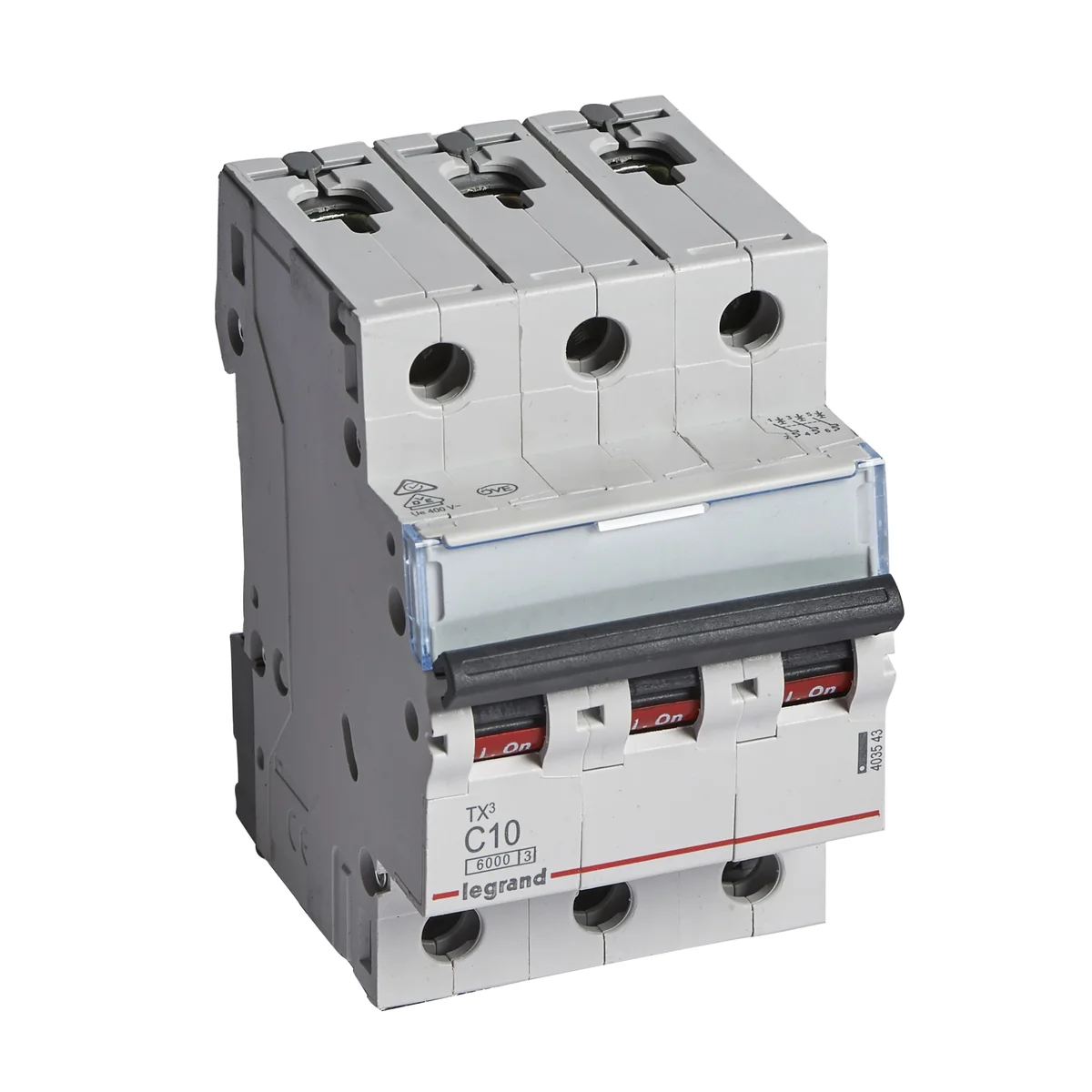

Circuit breaker TX3 S 303 3P C 10A 6000A

Technical data

  • Characteristic
    c
  • Width in modules
    3
  • Rated current [A]
    10
  • Weight [g]
    406

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    no
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Number of poles (total)
    3
  • Rated current
    10 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Voltage type
    AC
  • Do instalacji podtynkowych
    yes
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm
