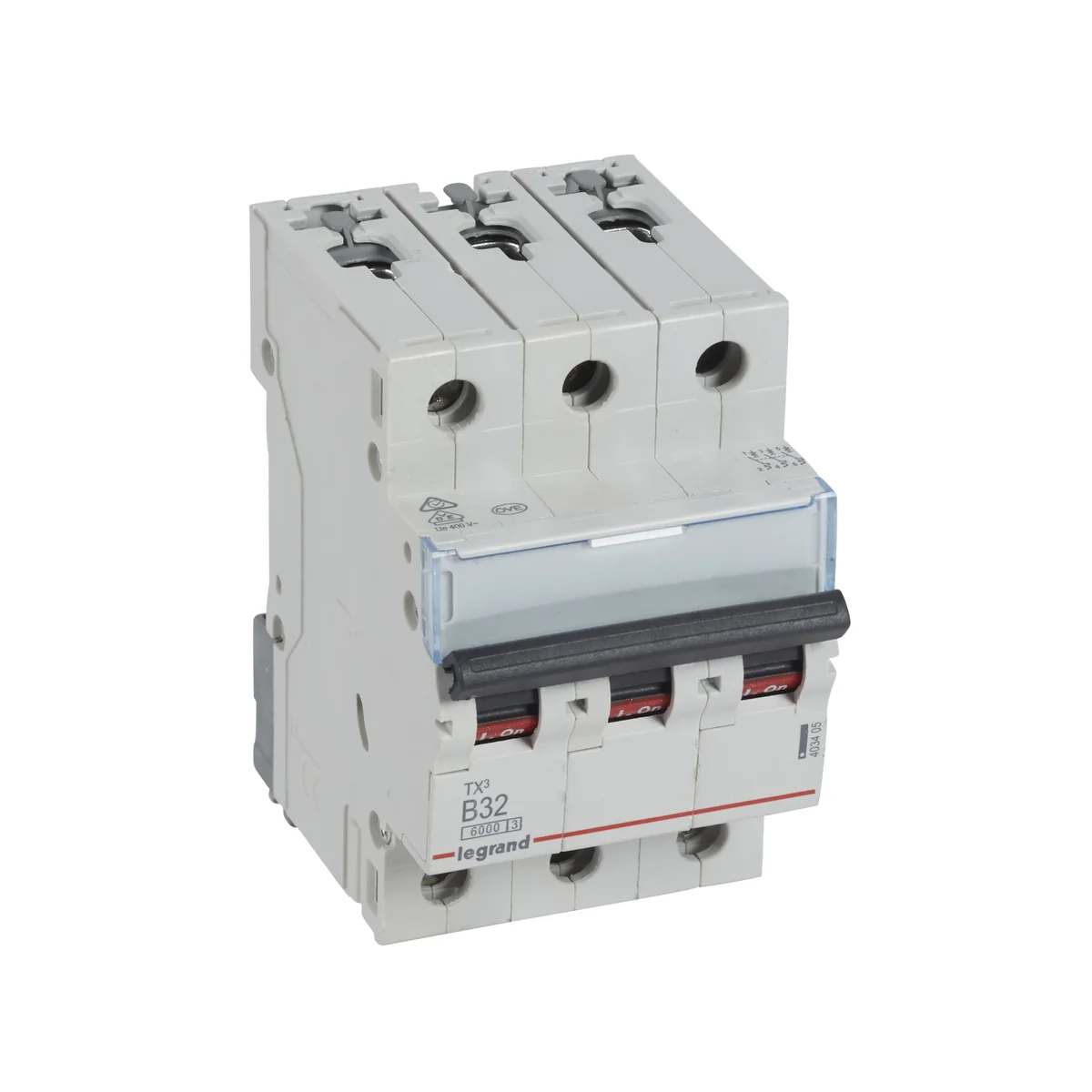

Circuit breaker TX3 S 303 3P B 32A 6000A 403405

local index:
ABB254LEGR
Catalog No:
403405
EAN code:
3414970387608
Manufacturer: LEGRAND
Characteristic: b
Rated current [A]: 32
Width in modules: 3
Price:
24,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker TX3 S 303 3P B 32A 6000A

Technical data

  • Characteristic
    b
  • Width in modules
    3
  • Rated short-circuit breaking capacity [A]
    6000
  • Rated current [A]
    32
  • Weight [g]
    421
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Number of poles (total)
    3
  • Rated current
    32 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Voltage type
    AC
  • Do instalacji podtynkowych
    Yes
  • Additional equipment possible
    Yes
  • Built-in depth
    44 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 1 pcs. 20 pcs. 200 pcs.
Weight (kg) 0,424 8,727 87,270
Volume (m3) 0,000 0,000 0,000
Width (m) 0,058 0,298 1,200
Length (m) 0,089 0,114 0,277
Depth (m) 0,101 0,398 1,000
