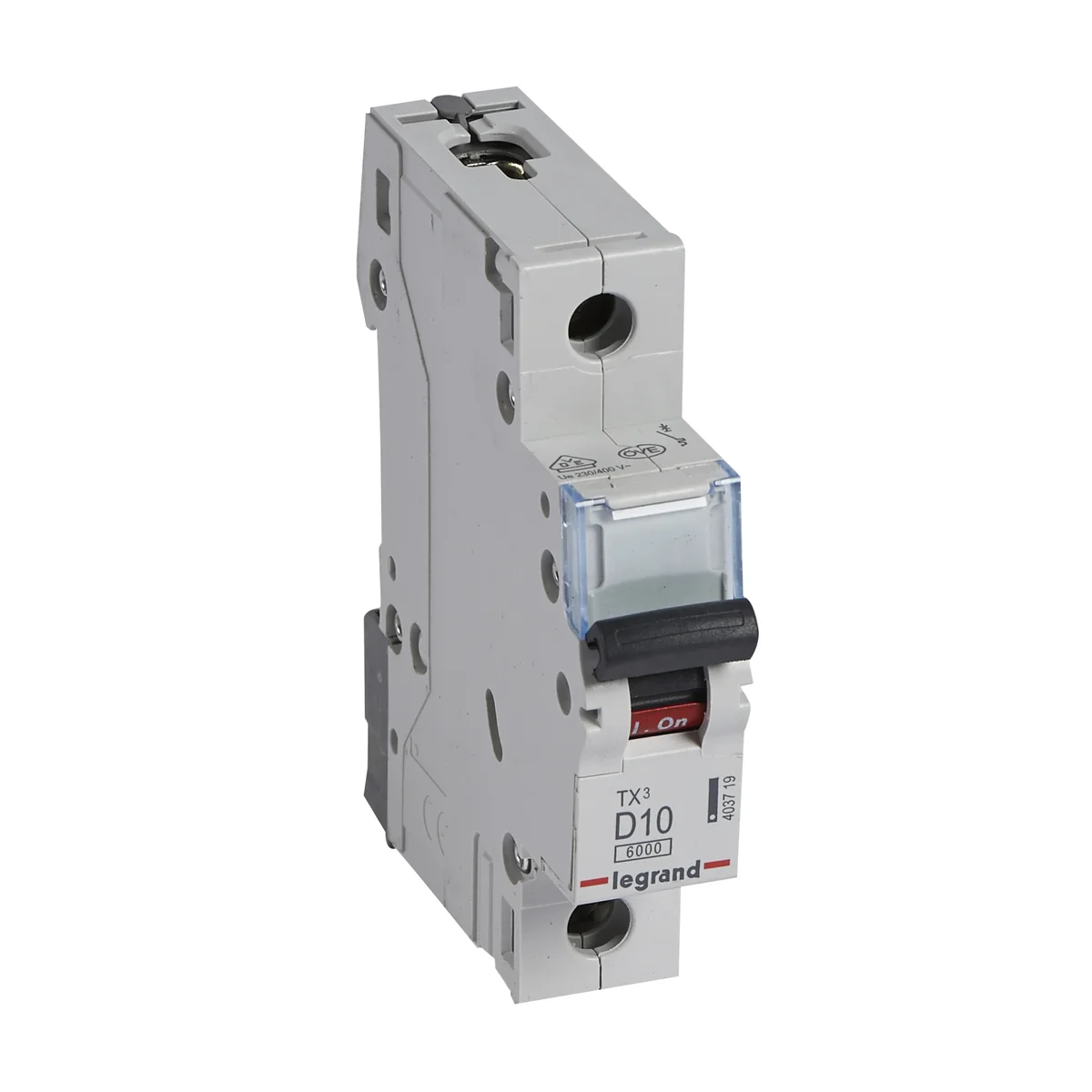

Circuit breaker TX3 S 301 1P D 10A 6000A 403719

local index:
ABD249LEGR
Catalog No:
403719
EAN code:
3414970390257
Manufacturer: LEGRAND
Characteristic: d
Rated current [A]: 10
Width in modules: 1
Price:
7,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker TX3 S 301 1P D 10A 6000A

Technical data

  • Characteristic
    d
  • Width in modules
    1
  • PKWIU
    27.12.22.0
  • Rated current [A]
    10
  • Weight [g]
    146

Other technical data

  • Release characteristic
    D
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Concurrently switching neutral conductor
    no
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Number of poles (total)
    1
  • Rated current
    10 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Do instalacji podtynkowych
    yes
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 60 pcs. 2880 pcs.
Weight (kg) 1,090 6,730 323,040
Volume (m3) 0,000 0,000 0,001
Width (m) 0,101 0,237 1,200
Length (m) 0,088 0,193 0,760
Depth (m) 0,184 0,290 1,000
