el12 Electrical apparatus fuses Circuit breakers with "C" characteristic Circuit breaker TX3 S 301 1P C 40A 6000A

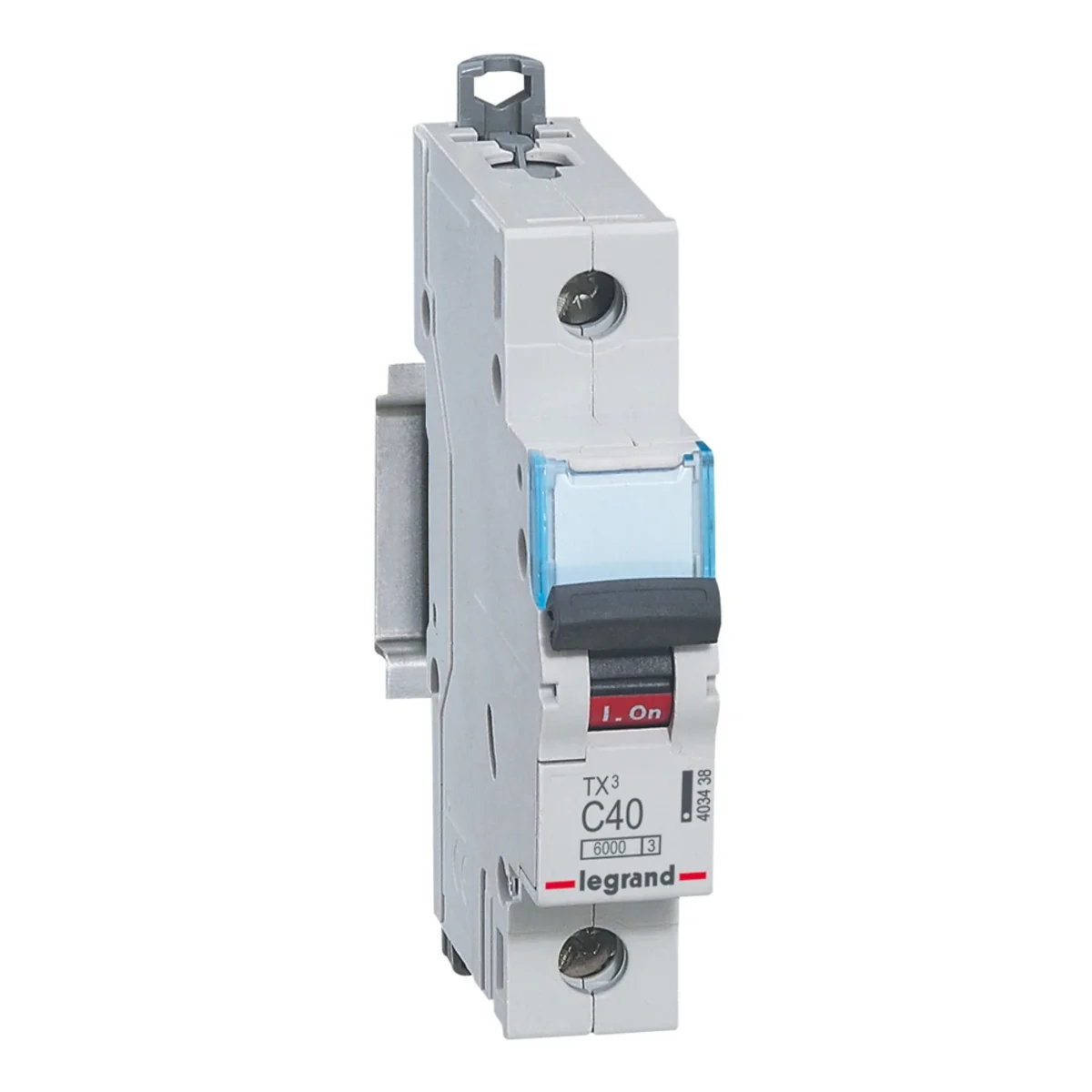

Circuit breaker TX3 S 301 1P C 40A 6000A
Circuit breaker TX3 S 301 1P C 40A 6000A

Click on the photo to enlarge

Circuit breaker TX3 S 301 1P C 40A 6000A
Circuit breaker TX3 S 301 1P C 40A 6000A
LEGRAND

Circuit breaker TX3 S 301 1P C 40A 6000A 403438

local index:
ABC215LEGR
Catalog No:
403438
EAN code:
3414970388407
Price:
9,00 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Circuit breaker TX3 S 301 1P C 40A 6000A
Print the product sheet Report an error

Technical data

  • Characteristic
    c
  • Width in modules
    1
  • Rated current [A]
    40
  • Weight [g]
    148

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Do instalacji podtynkowych
    yes
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm
  • Number of poles (total)
    1
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    no
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Catalog cards, diagrams, certificates

F01547EN-01.pdf
LGRP-00763-V01.01-EN.pdf
LEGRAND+WYŁĄCZNIK+NADMIAROWO-PRĄDOWY+S+301+B+10+1P+10+A+6+KA.jpg.pdf
legs301.jpg.pdf
Karta katalogowa(351).pdf.pdf
