Circuit breaker TX3 S 301 1P C 25A 6000A 403436
local index:
ABC213LEGR
Catalog number:
403436
EAN code:
3414970388346
31
55
zł
gross / pcs.
(including VAT 23%)
246,48 zł gross / kg.
Availability
Dostępne up to a week
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

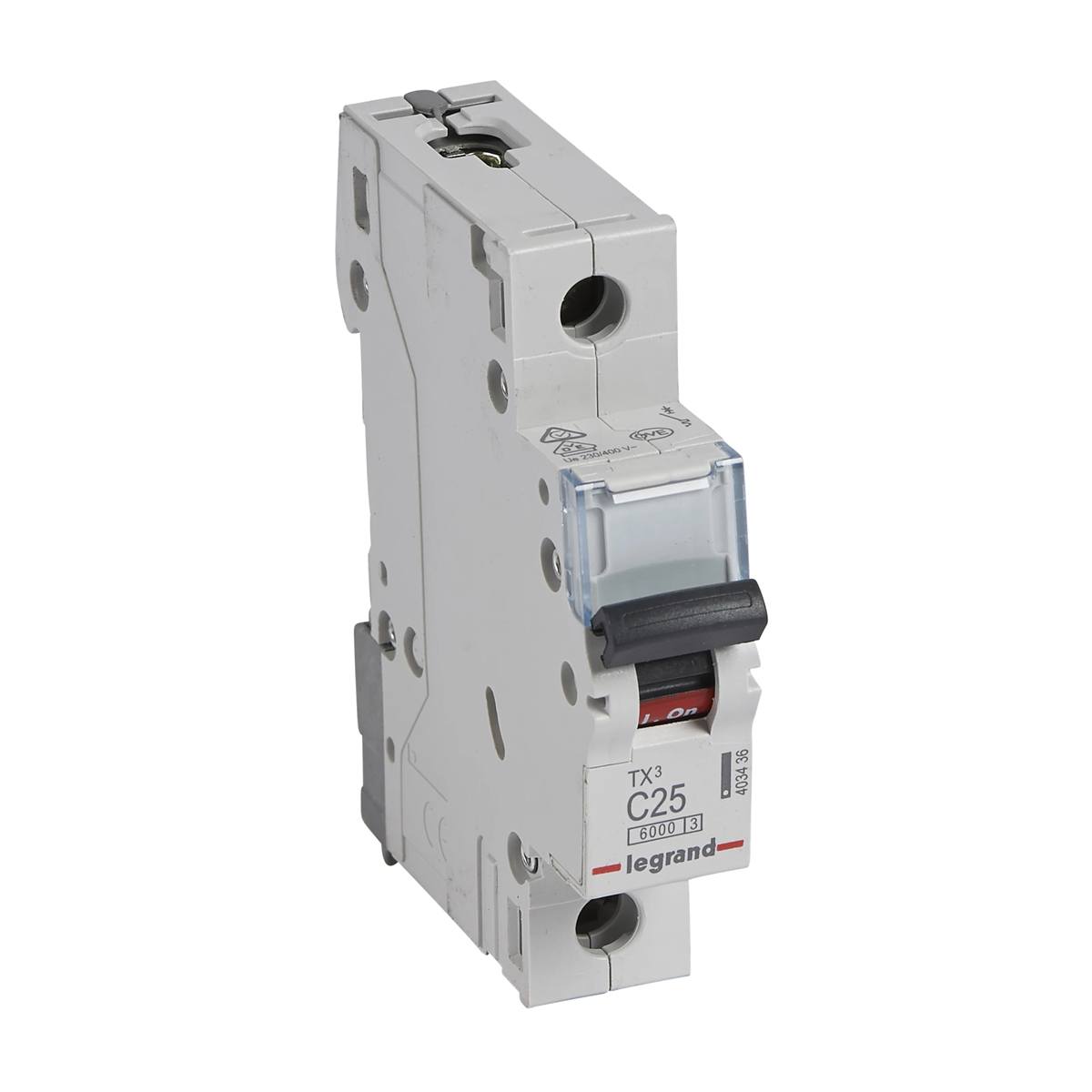

Circuit breaker TX3 S 301 1P C 25A 6000A
Technical data
-
Characteristicc
-
Width in modules1
-
PKWIU27.12.22.0
-
Rated current [A]25
-
Weight [g]128
Other technical data
-
Built-in depth44 mm
-
Number of poles (total)1
-
Rated current25 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Frequency50 ... 60 Hz
-
Flush-mounted installationYes
-
Pollution degree2
-
Width in number of modular spacings1
-
Explosion-proofNo
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Karton | Paleta |
| Quantity | 10 pcs. | 60 pcs. | 2880 pcs. |
| Weight (kg) | 1,133 | 6,988 | 335,424 |
| Volume (m3) | 0,002 | 0,013 | 0,912 |
| Width (m) | 0,101 | 0,238 | 1,200 |
| Length (m) | 0,088 | 0,193 | 0,760 |
| Depth (m) | 0,184 | 0,290 | 1,000 |
