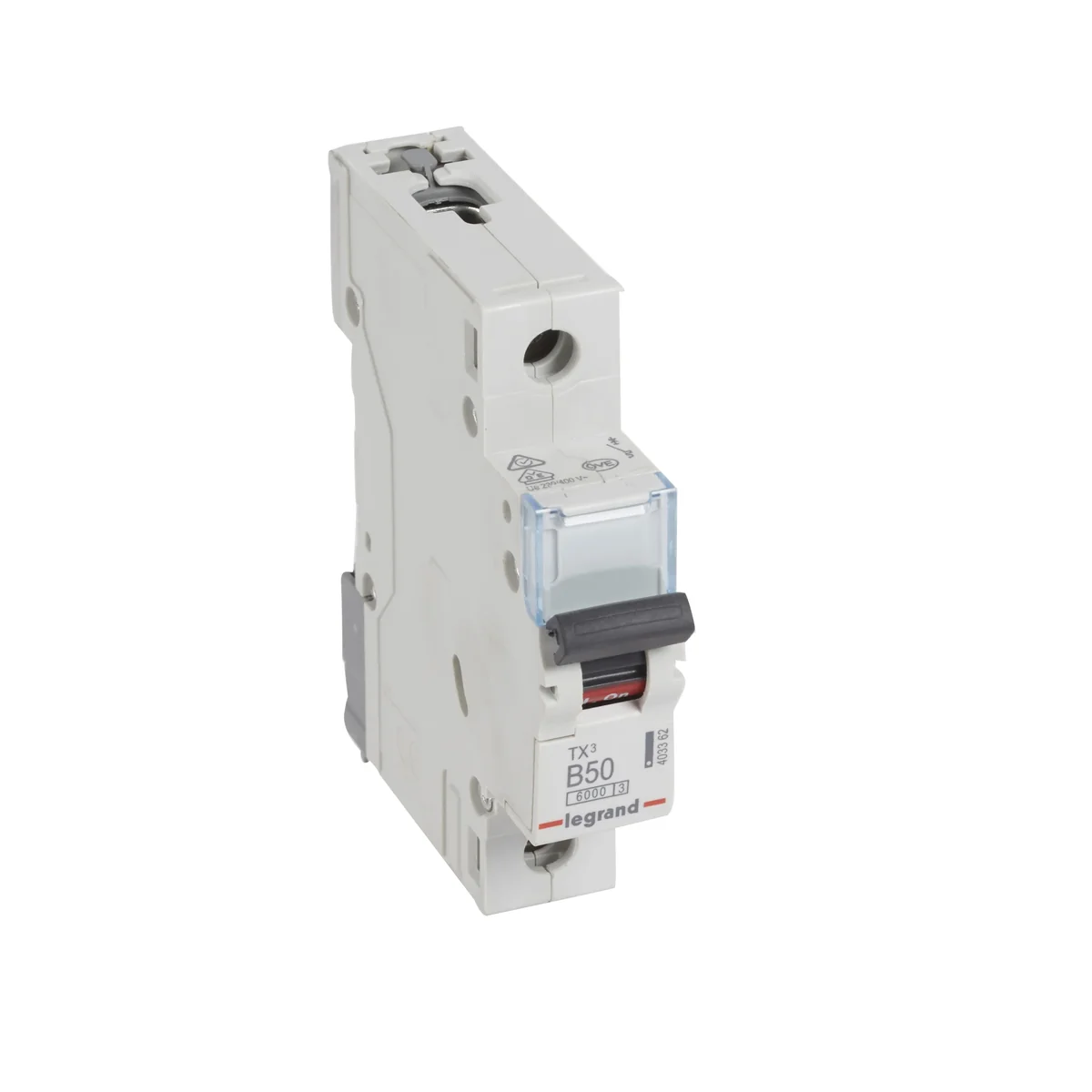

Circuit breaker TX3 S 301 1P B 50A 6000A 403362

local index:
ABB216LEGR
Catalog No:
403362
EAN code:
3414970386458
Manufacturer: LEGRAND
Characteristic: b
Rated current [A]: 50
Width in modules: 1
Price:
12,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker TX3 S 301 1P B 50A 6000A

Technical data

  • Characteristic
    b
  • Width in modules
    1
  • Rated short-circuit breaking capacity [A]
    6000
  • Rated current [A]
    50
  • Weight [g]
    160
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Do instalacji podtynkowych
    yes
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm
  • Number of poles (total)
    1
  • Rated current
    50 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    no
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 60 pcs. 2880 pcs.
Weight (kg) 1,373 8,638 414,624
Volume (m3) 0,000 0,000 0,001
Width (m) 0,101 0,240 1,200
Length (m) 0,088 0,205 0,760
Depth (m) 0,184 0,300 1,000
