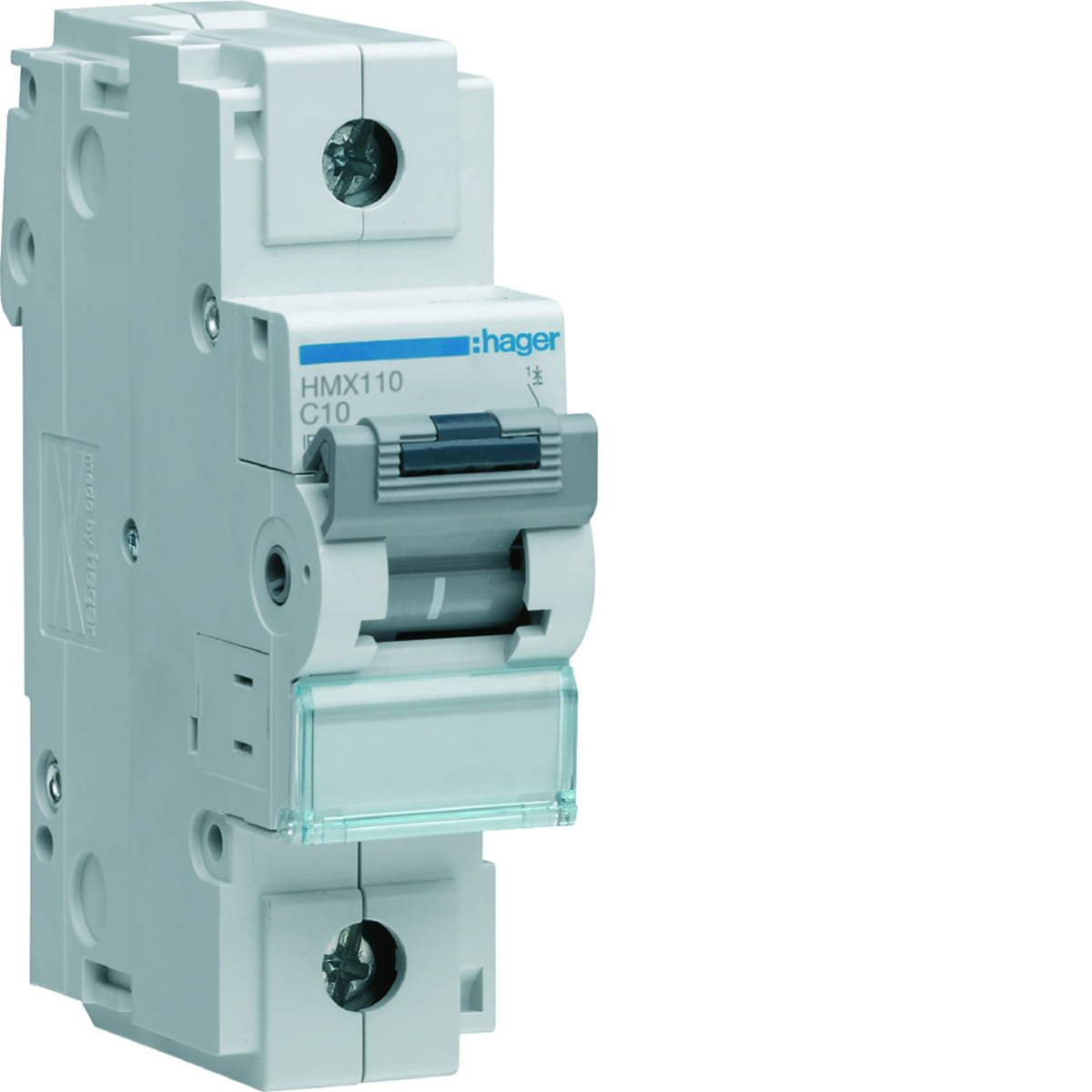

Circuit breaker MCB 50kA 1P C 10A HMX110

local index:
ABC024HAGE
Catalog No:
HMX110
EAN code:
3250613231811
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 70
Number of poles: 1
Price:
137,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current circuit breakers 80 - 125 A, type B, C and D
Rated short-circuit breaking capacity 15000 A:
• rated short-circuit switching capacity (Icn): 15000 A, in accordance with PN-EN 60898-1
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2
• low power loss [W]
• open state indicated by a green marker above the lever
• cage clamps: wire up to 70 mm², rope up to 35 mm²
• the possibility of using residual current blocks

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    1
  • Connection
    Clamps with alignment system
  • power loss [W]
    2.2
  • Type
    c
  • Electrical endurance (number of cycles)
    4000
  • Rated short-circuit breaking capacity [kA]
    50
  • PKWIU
    27.12.22.0
  • Depth [mm]
    70
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    10
  • Width [mm]
    27
  • Height [mm]
    90
  • Mechanical durability (number of cycles)
    20000
  • Number of modules
    1.5

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    10 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    50 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²
  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    50 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    1.5
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1440 pcs.
Weight (kg) 0,185 0,200 7,490 322,600
Width (m) 0,082 0,080 0,315 0,800
Length (m) 0,044 0,040 0,130 1,050
Depth (m) 0,099 0,100 0,365 1,200
