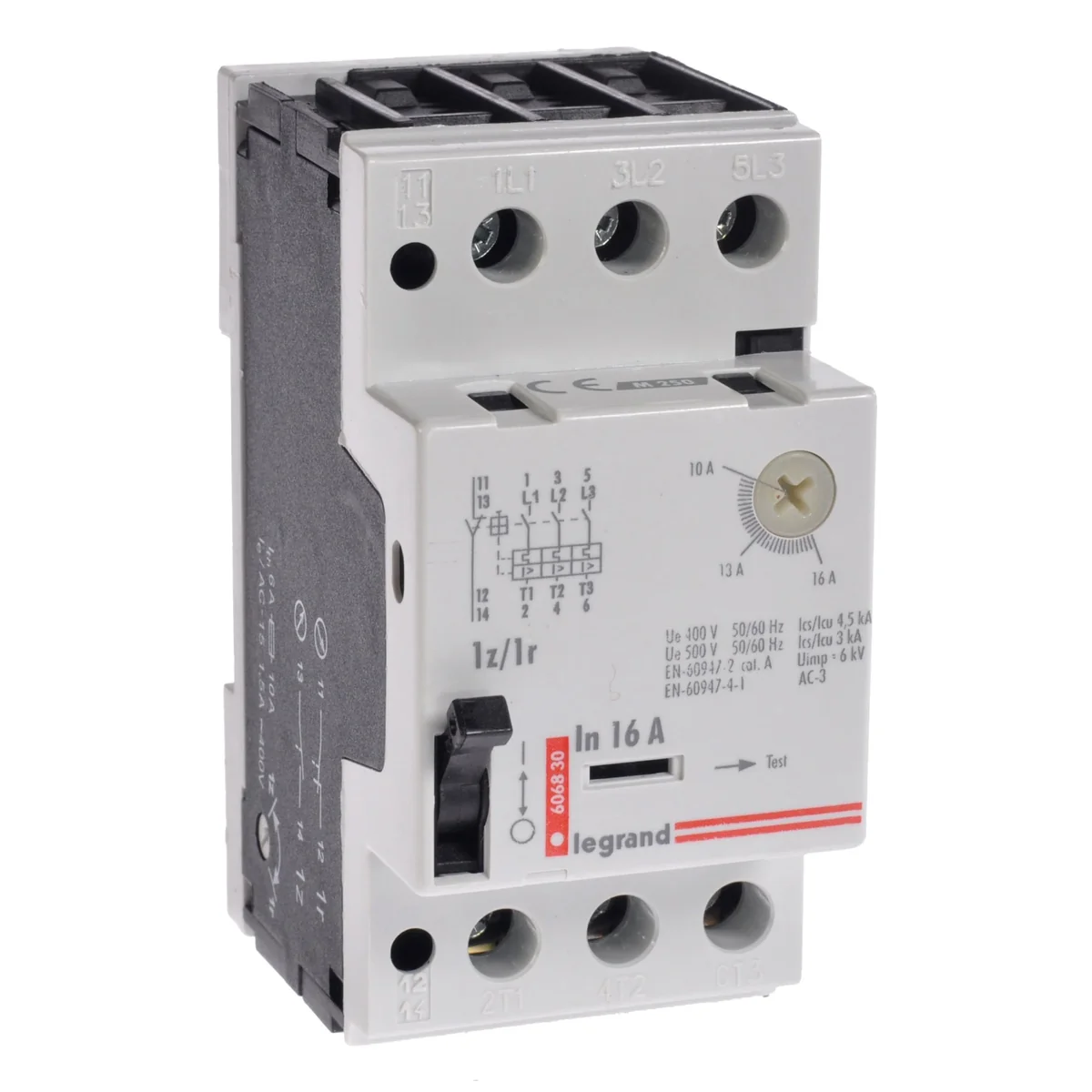

Circuit breaker M250 1NO/1NC 16.0A 606830
local index:
ASN007LEGR
Catalog number:
606830
Manufacturer:
LEGRAND
Rated current [A]: 16
Price:
873,74 zł
gross / pcs.
(including VAT 23%)
Add to inquiry
Print
Ask about the product
Product description
Circuit breaker M250 1NO/1NC 16.0A
Technical data
-
Rated current [A]16
-
PKWIU27.12.22.0
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated fault current0.3 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of protected poles2
-
Rated insulation voltage Ui440 V
-
Rated current13 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Do instalacji podtynkowychNo
-
Connectable conductor cross section solid-core1 ... 35 mm²
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
