Circuit breaker M250 1NO/1NC 0.25A 606821
local index:
ASN037LEGR
Catalog No:
606821
Manufacturer:
LEGRAND
Rated current [A]: 0.25
Price:
25,02 €
gross / pcs.
(including VAT 23%)
Last lowest price:
109,30 € gross
Price history for this product
1. 25,02 € gross / pcs.
2. Last lowest price:
109,30 €
3. Base price:
121,31 €
-79%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
121,31 € gross
-79%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

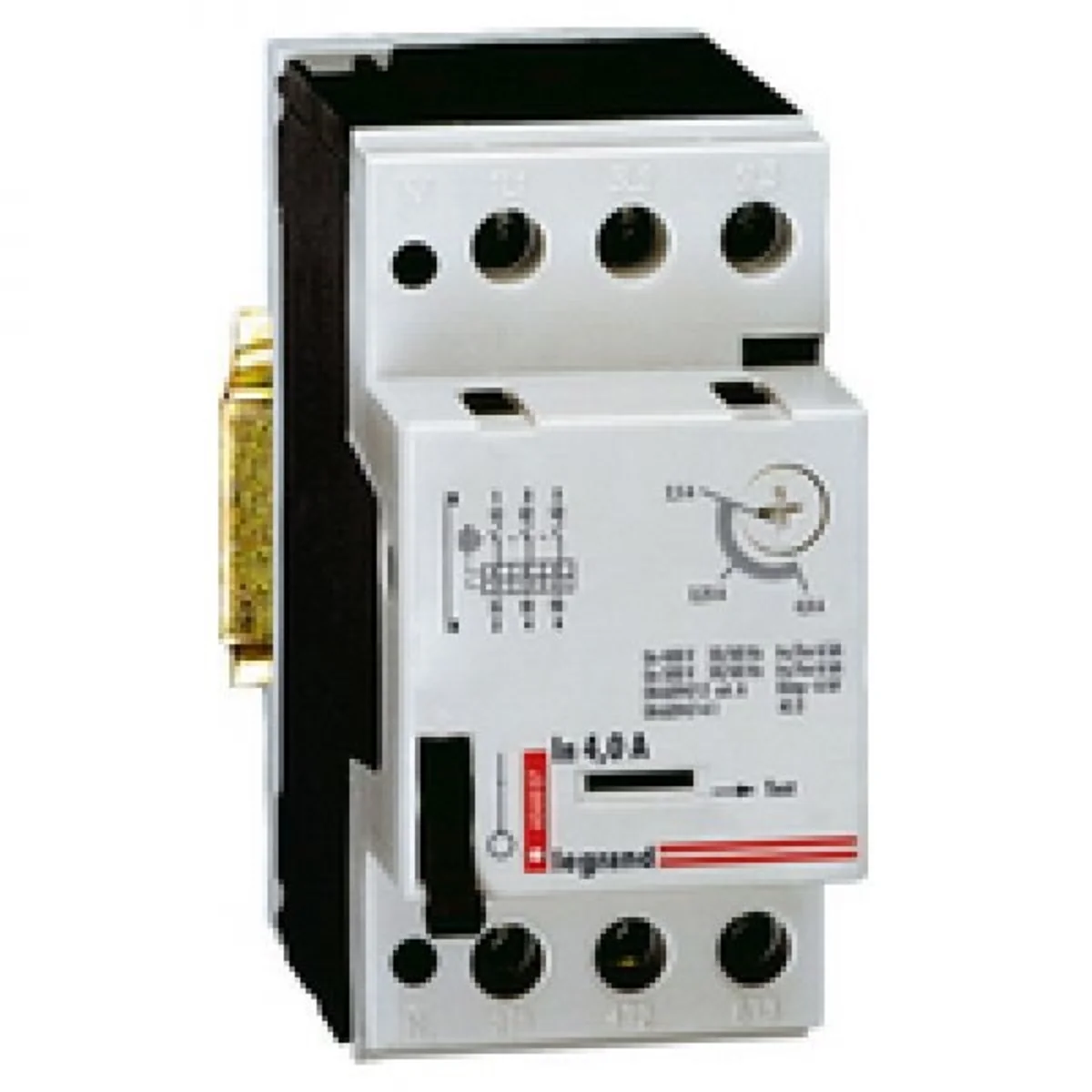

Circuit breaker M250 1NO/1NC 0.25A
Technical data
-
Rated current [A]0.25
-
PKWIU27.12.22.0
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of protected poles2
-
Rated insulation voltage Ui440 V
-
Rated current10 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Do instalacji podtynkowychNo
-
Connectable conductor cross section solid-core1 ... 35 mm²
