Electrical apparatus
fuses
Circuit breakers with "C" characteristic

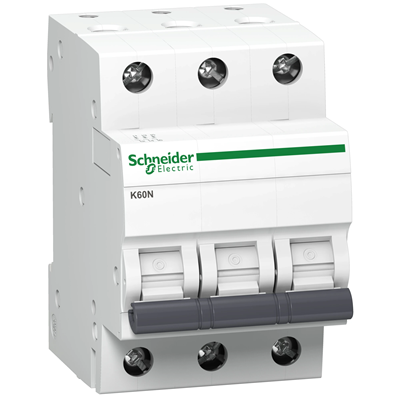

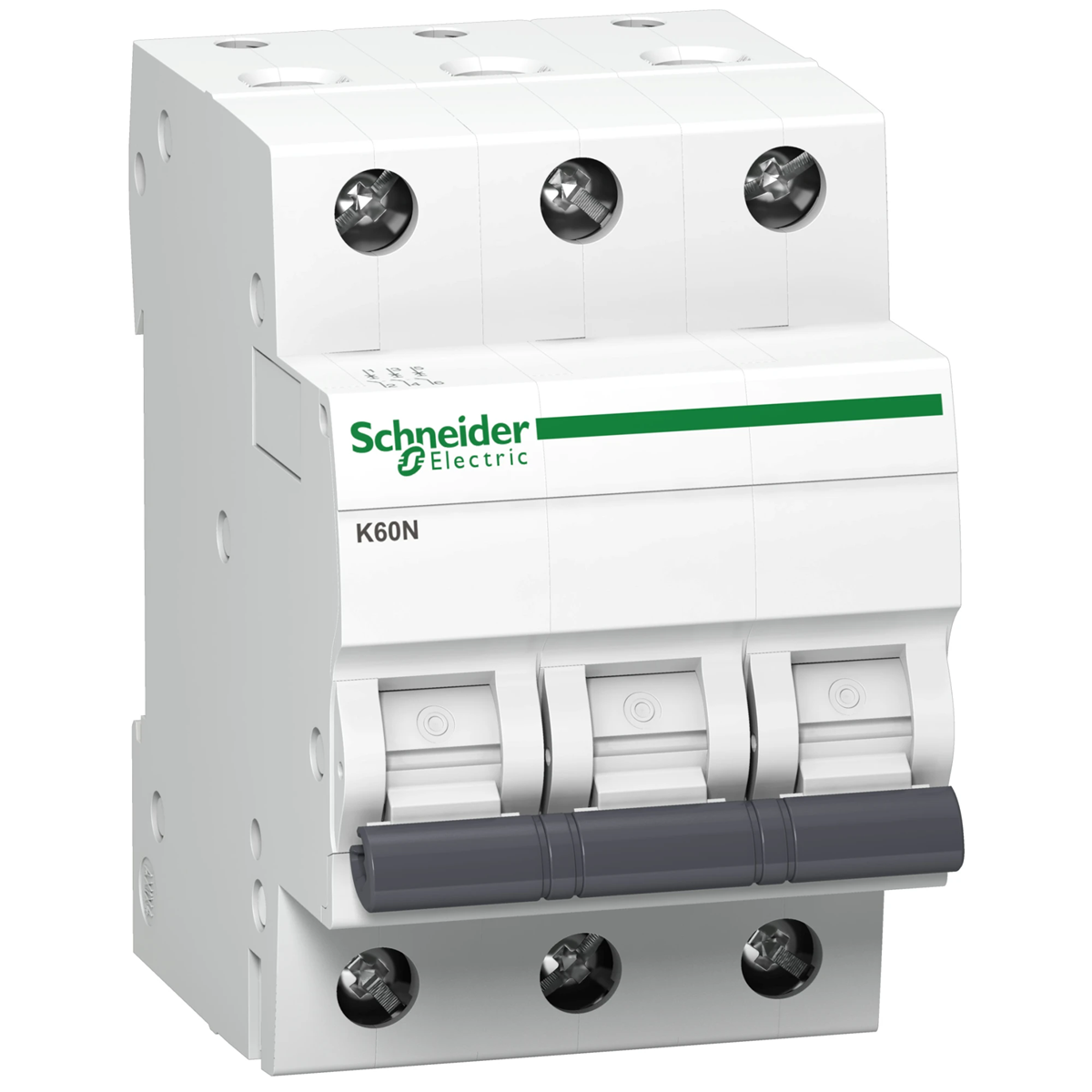

Circuit breaker K60N-C25-3 C 25A 3-pole A9K02325
local index:
ABC114SCHN
Catalog No:
A9K02325
EAN code:
3606480478420
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic:
c
See full description
Price:
19,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Circuit breaker K60N-C25-3 C 25A 3-pole
Technical data
Characteristic
c
PKWIU
27.12.22.0
Other technical data
Release characteristic
C
Number of protected poles
3
Rated voltage
400 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Additional equipment possible
No
Built-in depth
44.5 mm
Ambient temperature during operating
-25 ... 70 °C
Connectable conductor cross section solid-core
0.5 ... 35 mm²
Number of poles (total)
3
Rated current
25 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage type
AC
Current limiting class
3
Pollution degree
2
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.5 ... 25 mm²
Files to download
PEP ecopassport SCHN-00258-V02.01-EN.pdf
EU declaration of conformity - Acti9K60 - FD16032901C.pdf
See more >>
