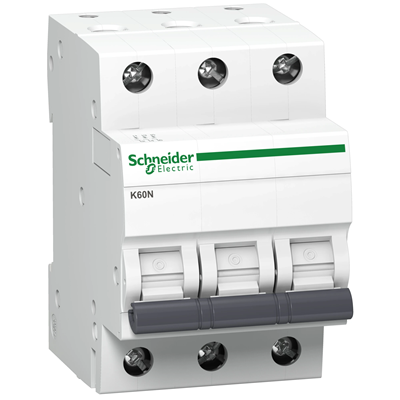

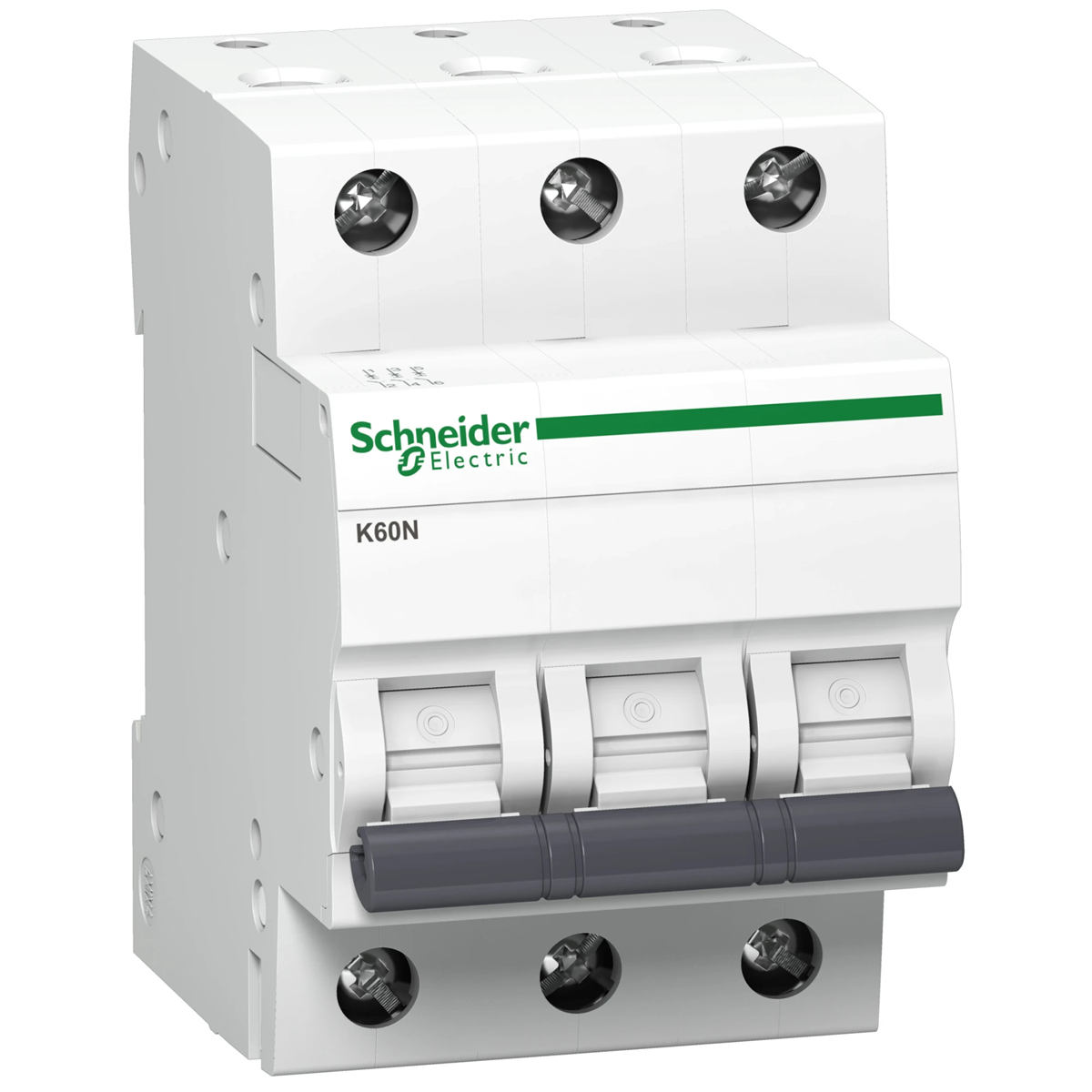

Circuit breaker K60N-B40-3 B 40A 3-pole A9K01340

local index:
ABB060SCHN
Catalog No:
A9K01340
EAN code:
3606480478260
Manufacturer: SCHNEIDER ELECTRIC
Rated current [A]: 40
Price:
21,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker K60N-B40-3 B 40A 3-pole

Technical data

  • Rated current [A]
    40
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    no
  • Additional equipment possible
    no
  • Built-in depth
    44.5 mm
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    0.5 ... 35 mm²
  • Number of poles (total)
    3
  • Rated current
    40 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Pollution degree
    2
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    0.5 ... 25 mm²
