Circuit breaker K60N-B32-3 B 32A 3-pole A9K01332
local index:
ABB059SCHN
Catalog No:
A9K01332
EAN code:
3606480478253
Manufacturer:
SCHNEIDER ELECTRIC
Rated current [A]: 32
Price:
20,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

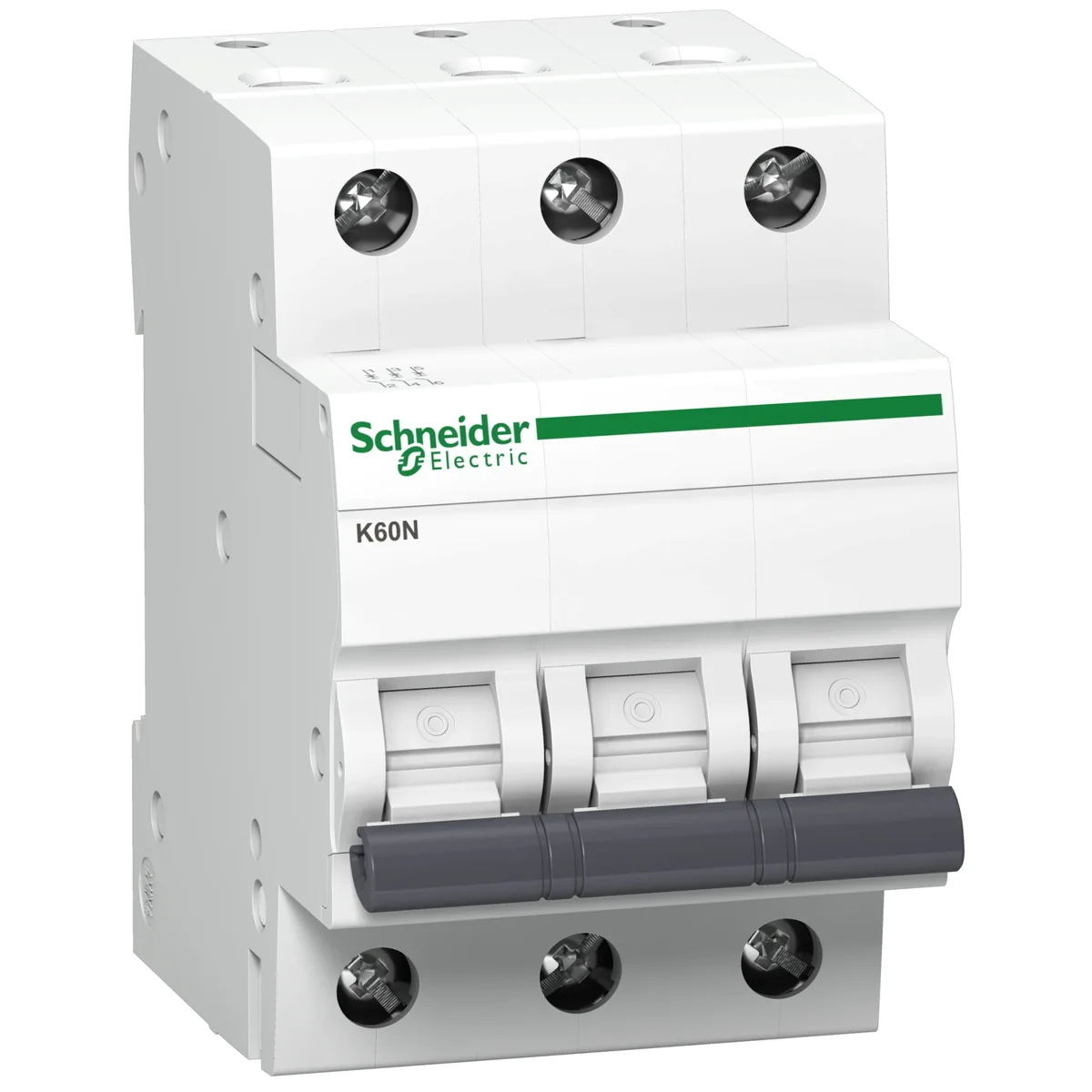

Circuit breaker K60N-B32-3 B 32A 3-pole
Technical data
-
Rated current [A]32
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicB
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Additional equipment possibleNo
-
Built-in depth44.5 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core0.5 ... 35 mm²
-
Number of poles (total)3
-
Rated current32 A
-
Rated insulation voltage Ui440 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Voltage typeAC
-
Current limiting class3
-
Pollution degree2
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired0.5 ... 25 mm²
