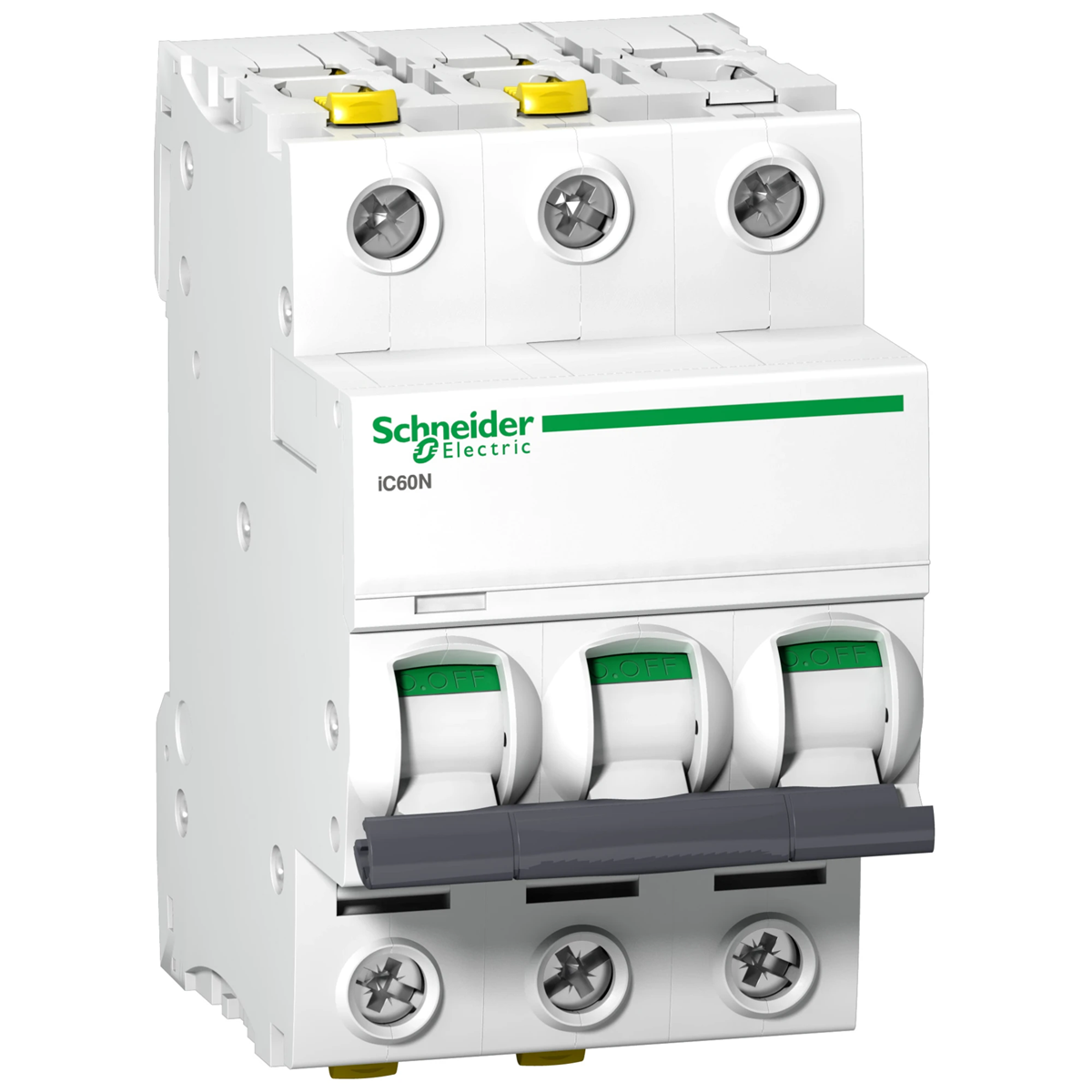

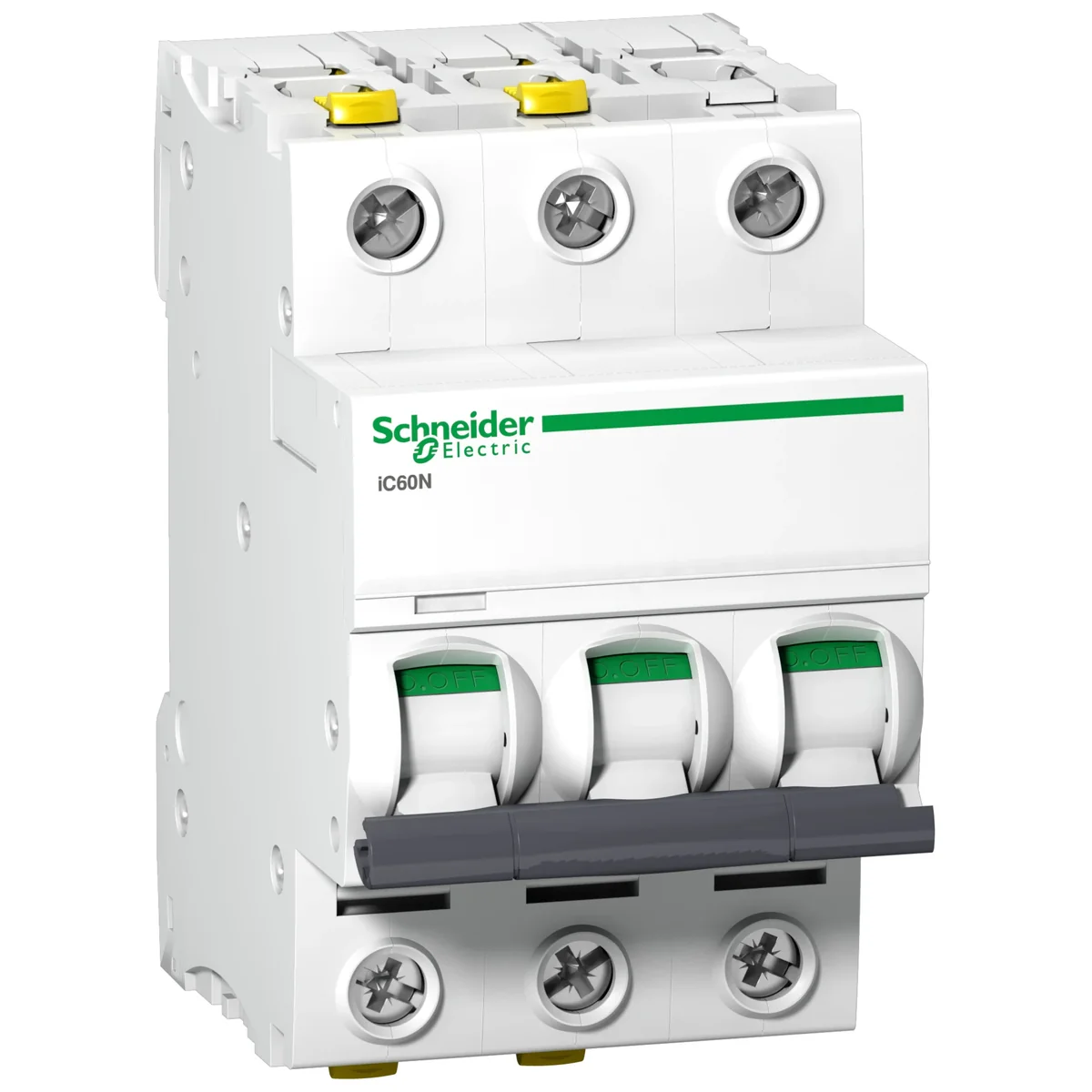

Circuit breaker iC60N 3P, 16A A9F04316

Name: Circuit breaker iC60N 3P, 16A
Brand: SCHNEIDER ELECTRIC
SKU: ABC318SCHN
Price: 21.16 PLN
Availability: InStock

local index:

ABC318SCHN

Catalog No:

A9F04316

EAN code:

3606480440663

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Characteristic: c

Number of poles: 3

Rated current [A]: 16

See full description

Price:

21,16 €

gross / pcs.

(including VAT 23%)

Accessible 22 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Schneider Electric's iC60N series overcurrent circuit breakers provide protection against short circuits and overloads, while providing convenient installation in a switchboard (tool-free installation on a DIN rail, double terminals up/down), safety of service (VisiSafe indicator - confirmation of circuit breaker contact opening, plugs terminals when tightening the wires) as well as the ability to communicate via the Smartlink system using an auxiliary contact confirming the status of the circuit breaker and the cause of tripping.

Advantages:

Efficiency you deserve
New quality in final power distribution
Full safety of circuit protection with VisiSafe
Increased power continuity with VisiTrip
Ease of selection thanks to logical catalog numbering
Easy to install with ergonomic and safe terminal covers (IP20B) and strong connections (twice as much pressure as standard tightening torque)
Environmentally friendly using 100% materials % recoverable and recyclable.

Application:

Low-voltage energy final distribution
Electrical circuit protection in industrial and general construction
All applications, especially in polluted environments and networks
Protection of motor circuits
Protection of DC circuits.

Possibility of direct connection of two wires with different cross-sections. Optical Visi-Trip electrical trip indicator, white/red. Possibility of disassembly of a single device without the need to remove the connecting rail. Removable from DIN rail without tools.

Technical data

Characteristic

c
Rated current [A]

16

Number of poles

3
PKWIU

27.12.22.0

Other technical data

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of poles (total)

3
Rated current

16 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA
Voltage type

AC/DC
Current limiting class

3
Over voltage category

4
Additional equipment possible

Yes
Built-in depth

44.5 mm
Ambient temperature during operating

-35 ... 70 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
