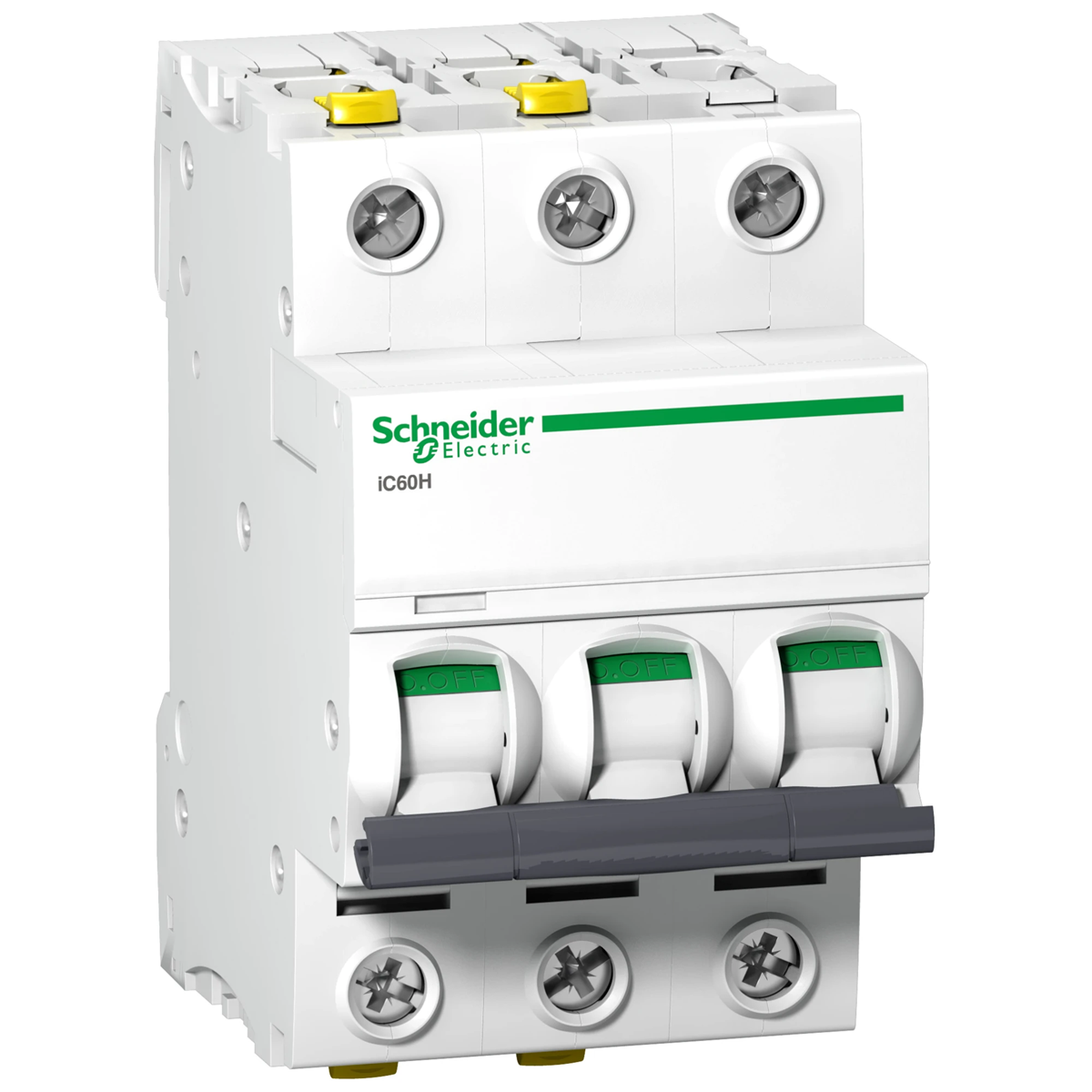

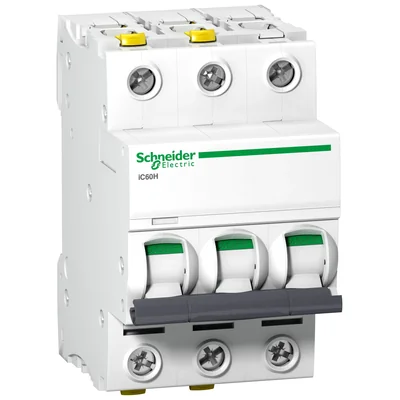

Circuit breaker iC60H-C32-3 C 32A 3-pole A9F07332

local index:
ABC047SCHN
Catalog No:
A9F07332
EAN code:
3606480438684
Manufacturer: SCHNEIDER ELECTRIC
Characteristic: c
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
24,78 €
gross / pcs.
(including VAT 23%)
Last lowest price: 24,78 € gross
Base price: 68,25 € gross -64%
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Circuit breaker iC60H-C32-3 C 32A 3-pole

Technical data

  • Characteristic
    c
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    3
  • Rated current
    32 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    30 kA
  • Voltage type
    AC/DC
  • Current limiting class
    3
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44.5 mm
  • Ambient temperature during operating
    -35 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
