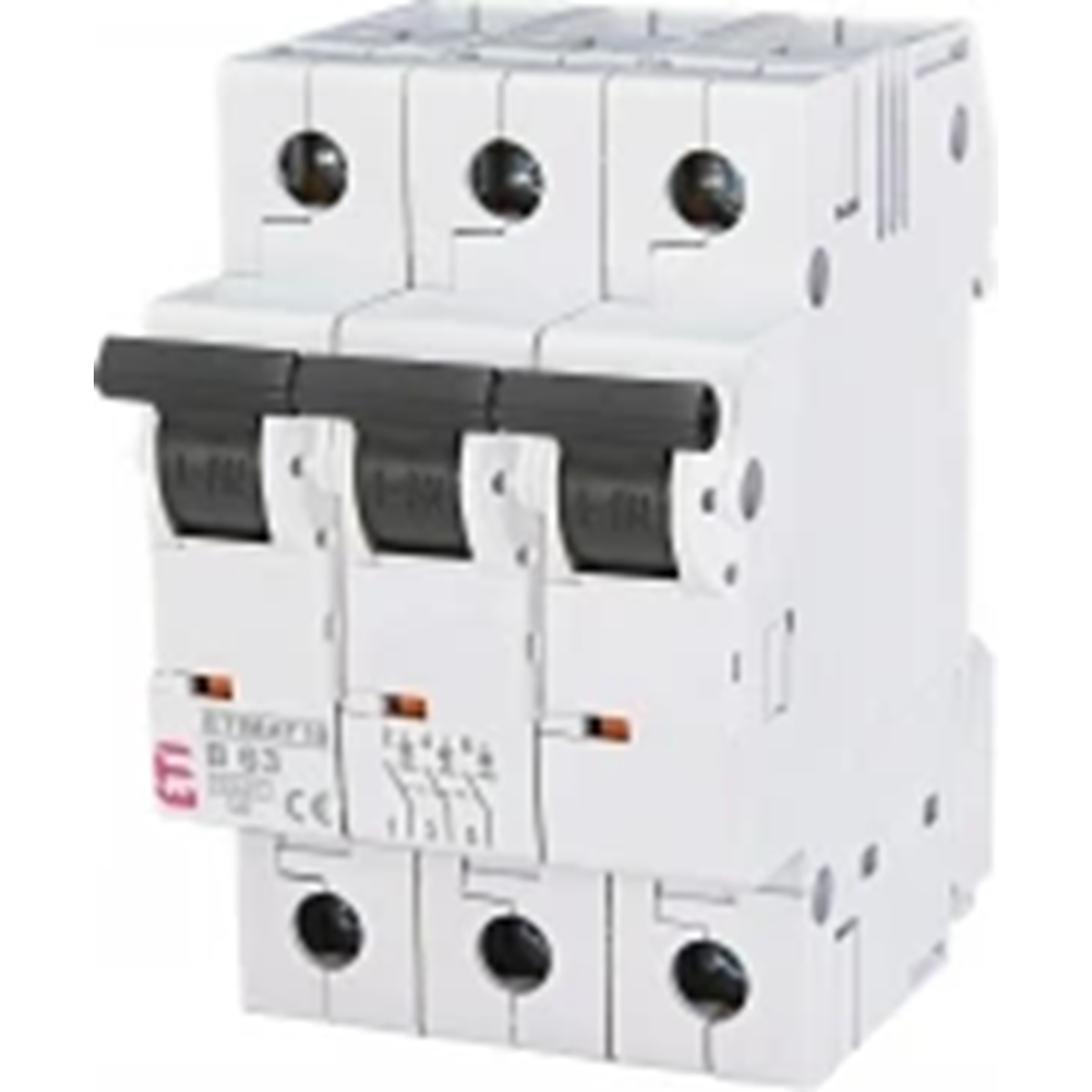

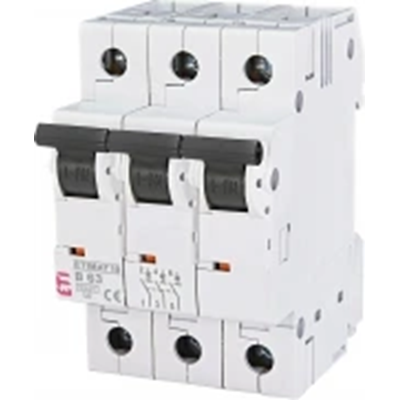

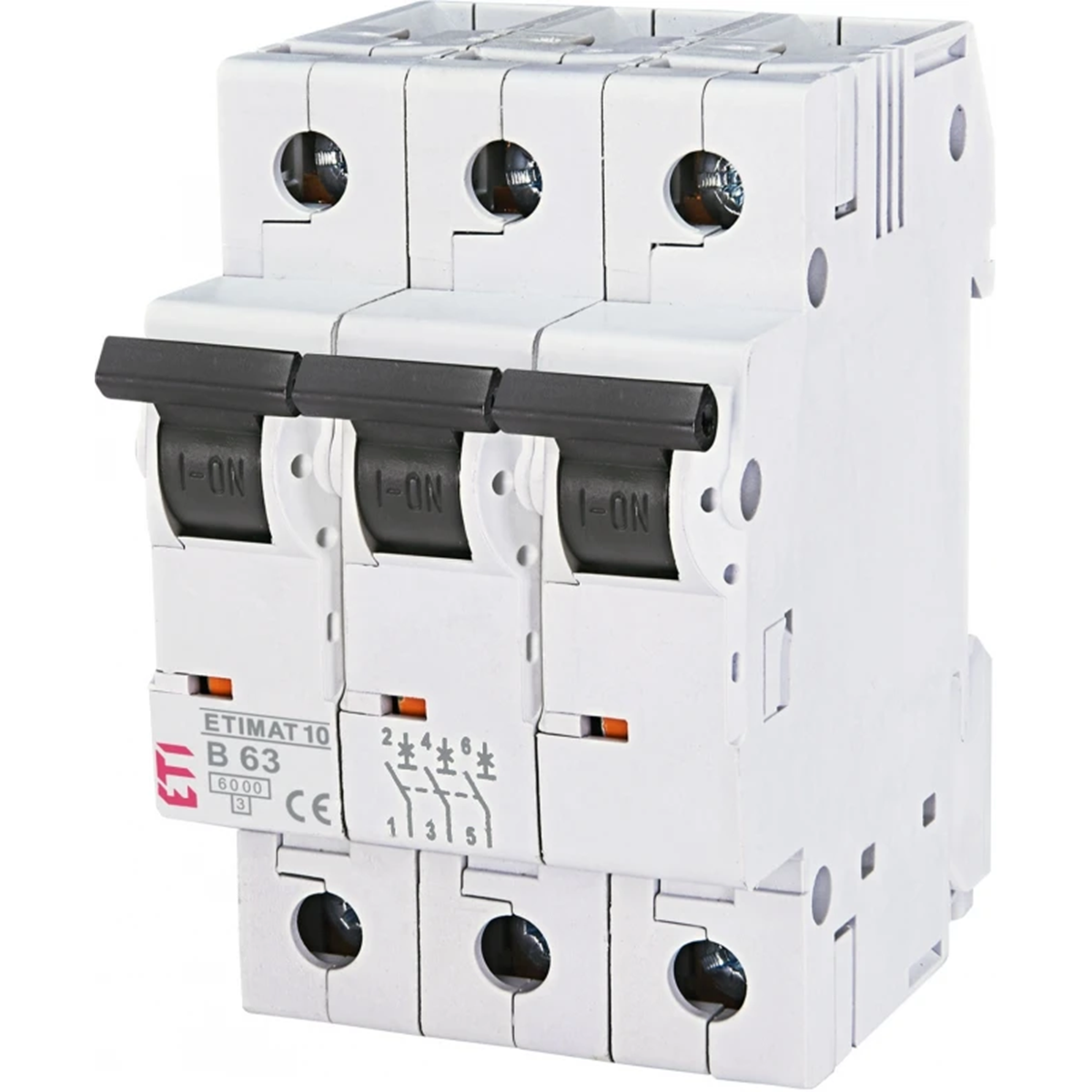

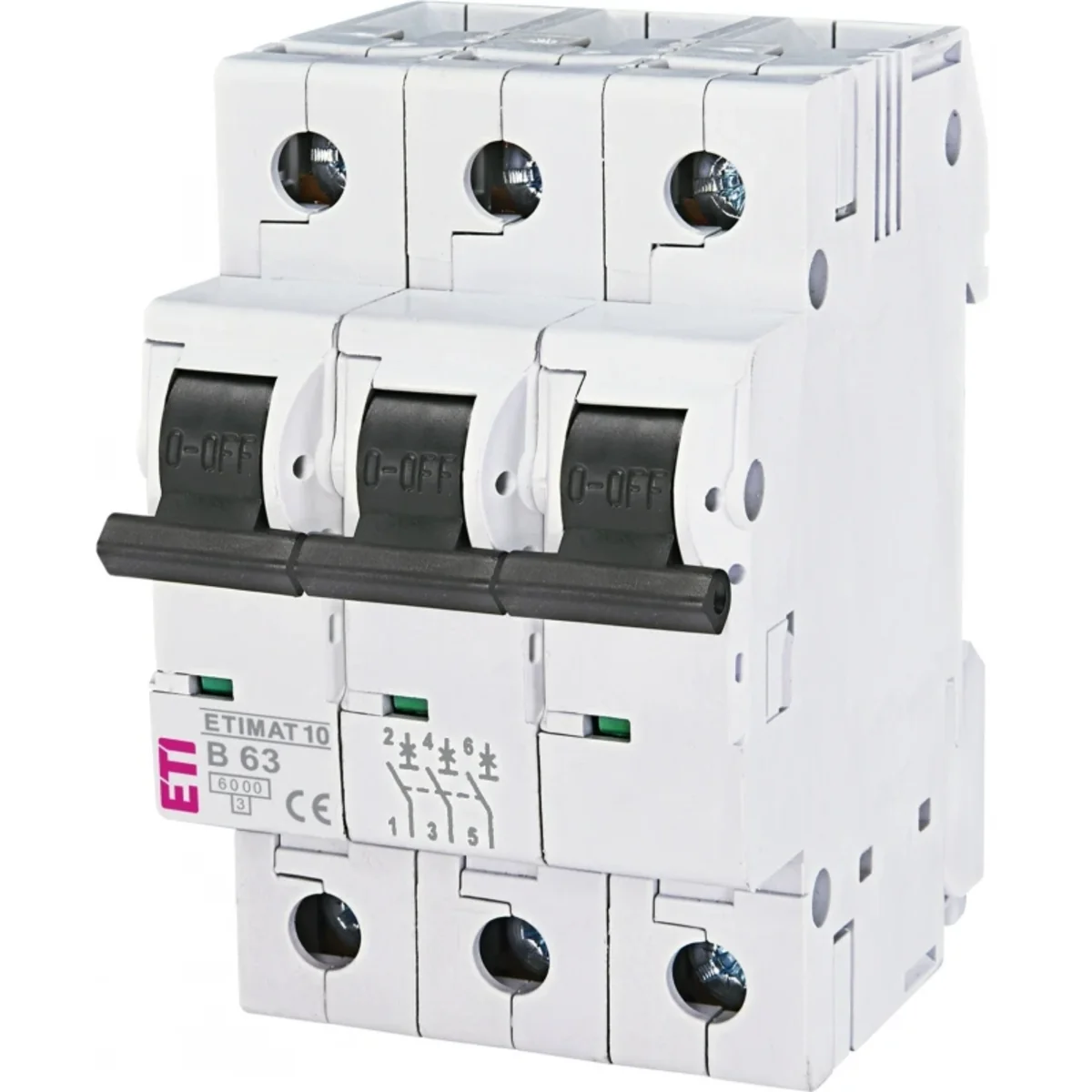

Circuit breaker ETIMAT10 3P 6kA B 63A 002125722
local index:
ABB001ETIP
Catalog No:
002125722
EAN code:
3838895271826
Price:
48,61 €
gross / pcs.
(including VAT 23%)
140,90 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
ETIMAT10 3P 6kA B 63A - Overcurrent circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.
Technical data
-
Characteristicb
-
Rated voltage [V]400
-
Rated current [A]63
-
Mechanical durability20 thousand shifts
-
Rated short-circuit capacity [kA]7
-
PKWIU27.12.22.0
-
Number of poles3
-
CaseNon-flammable, temperature-resistant material Gray color RAL 7035
-
Working temperature [°C]from -25 to +50
-
Weight [g]345
-
Insulation voltage [V]500
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)3
-
Rated current63 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Current limiting class3
-
Pollution degree3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 36 pcs. |
| Weight (kg) | 1,430 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
