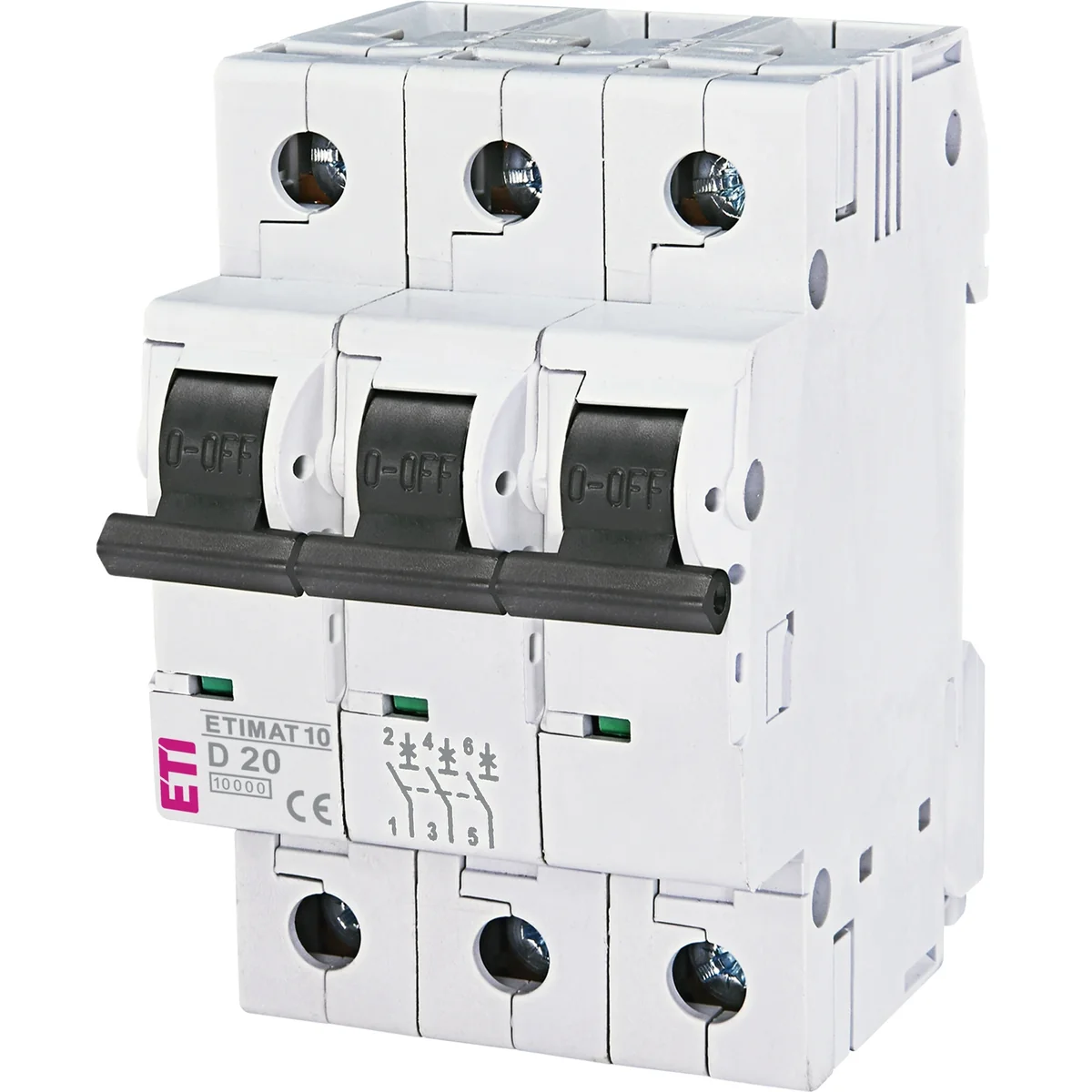

Circuit breaker ETIMAT10 3P 10kA D 20A 002155717
local index:
ABB256ETIP
Catalog No:
002155717
EAN code:
5904723004510
Price:
23,17 €
gross / pcs.
(including VAT 23%)
67,16 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
ETIMAT10 3P 10kA D 20A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial buildings. Pros:
→ high short-circuit capacity,
→ possibility of mounting auxiliary contacts,
→ meet the requirements of the main circuit breaker.
→ high short-circuit capacity,
→ possibility of mounting auxiliary contacts,
→ meet the requirements of the main circuit breaker.
Technical data
-
Characteristicd
-
Rated voltage [V]400
-
Rated current [A]20
-
Mechanical durability20 thousand shifts
-
Rated short-circuit capacity [kA]10
-
PKWIU27.12.22.0
-
Number of poles3
-
CaseNon-flammable, temperature-resistant material Gray color RAL 7035
-
Working temperature [°C]from -25 to +50
-
Weight [g]345
-
Insulation voltage [V]500
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)3
-
Rated current20 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicD
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Pollution degree3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
